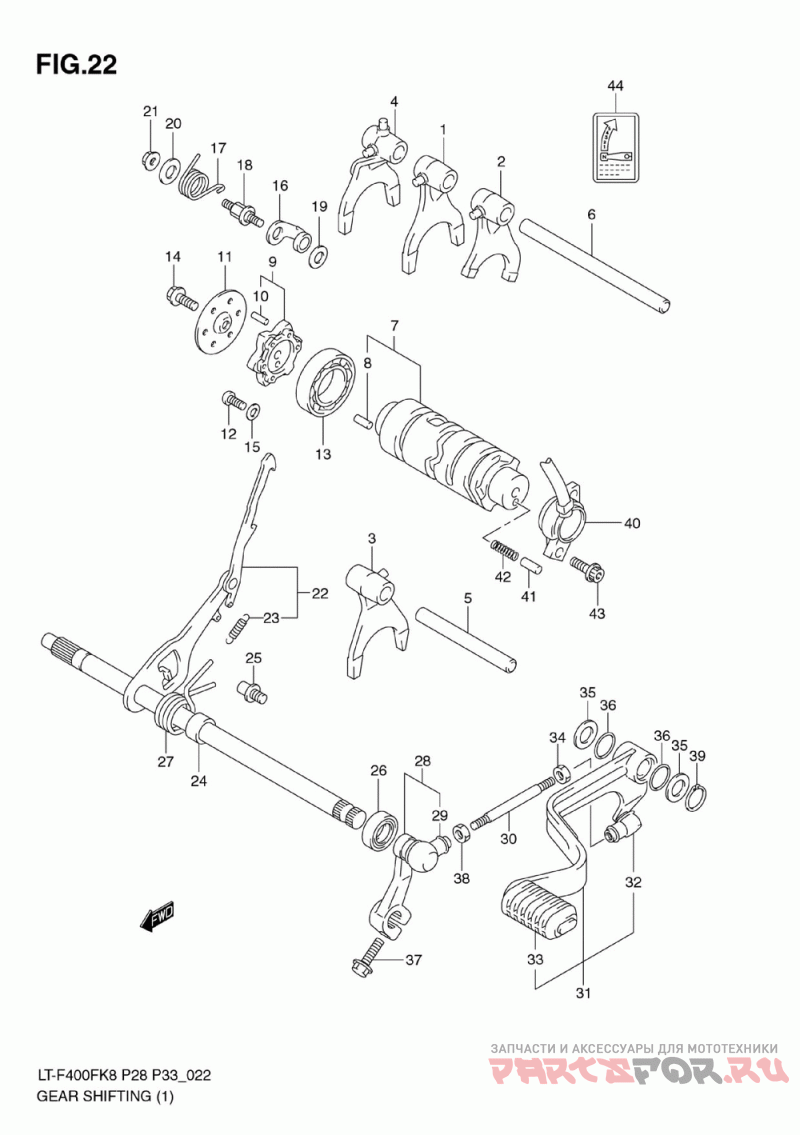

Gear shifting (1)
Suzuki LT-F400F KingQuad 400FS 4x4
| # | oem код | название | цена |
|---|---|---|---|
1 | 25211-19B00 Fork, Gear Shift, No.1 ( ) | Fork, Gear Shift, No.1 ( ) | |
2 | 25221-19B00 Fork, Gear Shift, No.2 ( ) | Fork, Gear Shift, No.2 ( ) | |
3 | 25231-19B00 Fork, Gear Shifting, No.3 ( ) | Fork, Gear Shifting, No.3 ( ) | |
4 | 25240-38F60 Fork, Gear Shift, Reverse ( ) | Fork, Gear Shift, Reverse ( ) | |
5 | 25411-14311 Shaft, Gear Shift Fork No.2 ( ) | Shaft, Gear Shift Fork No.2 ( ) | |
6 | 25411-18900 Shaft, Gear Shifting Fork ( ) | Shaft, Gear Shifting Fork ( ) | |
7 | 25310-38F50 Cam, Gear Shift ( ) | Cam, Gear Shift ( ) | |
8 | 04221-04089 Pin ( ) | Pin ( ) | |
9 | 25380-44D00 Plate, Gear Shift Cam ( ) | Plate, Gear Shift Cam ( ) | |
10 | 09261-04002 Roller ( ) | Roller ( ) | |
11 | 25382-44D00 Guide, Gear Shift Cam ( ) | Guide, Gear Shift Cam ( ) | |
12 | 09125-06110 Screw, Shift Cam (6x12) (6x12 ) | Screw, Shift Cam (6x12) (6x12 ) | |
13 | 09262-25006 Bearing (25x47x8) (25x47x8.0 ) | Bearing (25x47x8) (25x47x8.0 ) | |
14 | 01500-0620B Bolt ( ) | Bolt ( ) | |
15 | 08211-06165 Retainer, Shift Cam ( ) | Retainer, Shift Cam ( ) | |
16 | 25350-24B00 Stopper, Gear Shift Cam ( ) | Stopper, Gear Shift Cam ( ) | |
17 | 25355-38F60 Spring.gear Shift ( ) | Spring.gear Shift ( ) | |
18 | 25356-12C00 Support, Cam Stopper Arm ( ) | Support, Cam Stopper Arm ( ) | |
19 | 08211-06141 Washer ( ) | Washer ( ) | |
20 | 08211-06181 Washer ( ) | Washer ( ) | |
21 | 08316-1006B Nut ( ) | Nut ( ) | |
22 | 25510-38F60 Shaft, Gear Shift ( ) | Shaft, Gear Shift ( ) | |
23 | 25518-38F50 Spring, Gear Shi ( ) | Spring, Gear Shi ( ) | |
24 | 25516-44D00 Spacer, Gear Shift ( ) | Spacer, Gear Shift ( ) | |
25 | 25671-36A00 Stopper, Gear Shift ( ) | Stopper, Gear Shift ( ) | |
26 | 09283-14006 Oil Seal (14x22x6) ( ) | Oil Seal (14x22x6) ( ) | |
27 | 09444-26025 Spring ( ) | Spring ( ) | |
28 | 25520-38F60 Arm, Gear Shift Link ( ) | Arm, Gear Shift Link ( ) | |
29 | 25526-47000 .cover, Dust ( ) | .cover, Dust ( ) | |
30 | 25525-26B10 Rod, Gear Shift Link ( ) | Rod, Gear Shift Link ( ) | |
31 | 25600-27H50 Lever Assy, Gear ( ) | Lever Assy, Gear ( ) | |
33 | 25652-24401 .rubber ( ) | .rubber ( ) | |
34 | 09140-06025 Nut ( ) | Nut ( ) | |
35 | 09160-13003 Washer ( ) | Washer ( ) | |
36 | 09280-10016 .o Ring ( ) | .o Ring ( ) | |
37 | 01550-0620B Bolt ( ) | Bolt ( ) | |
38 | 08310-0006B Nut ( ) | Nut ( ) | |
39 | 08331-3113A Circlip ( ) | Circlip ( ) | |
40 | 37720-38F10 Base Assy, Neut Sw Terminal ( ) | Base Assy, Neut Sw Terminal ( ) | |
41 | 09209-05011 Contact ( ) | Contact ( ) | |
42 | 09440-04010 Spring ( ) | Spring ( ) | |
43 | 07120-0516A Bolt ( ) | Bolt ( ) | |
44-1 | 68392-24220 Label, Gear Shift Pattern (e28 ) | Label, Gear Shift Pattern (e28 ) | |
44-2 | 68392-24210 Label, Gear Shift Pattern (e33 ) | Label, Gear Shift Pattern (e33 ) | |
32 | 25526-47000 Cover, Dust ( ) | Cover, Dust ( ) |
