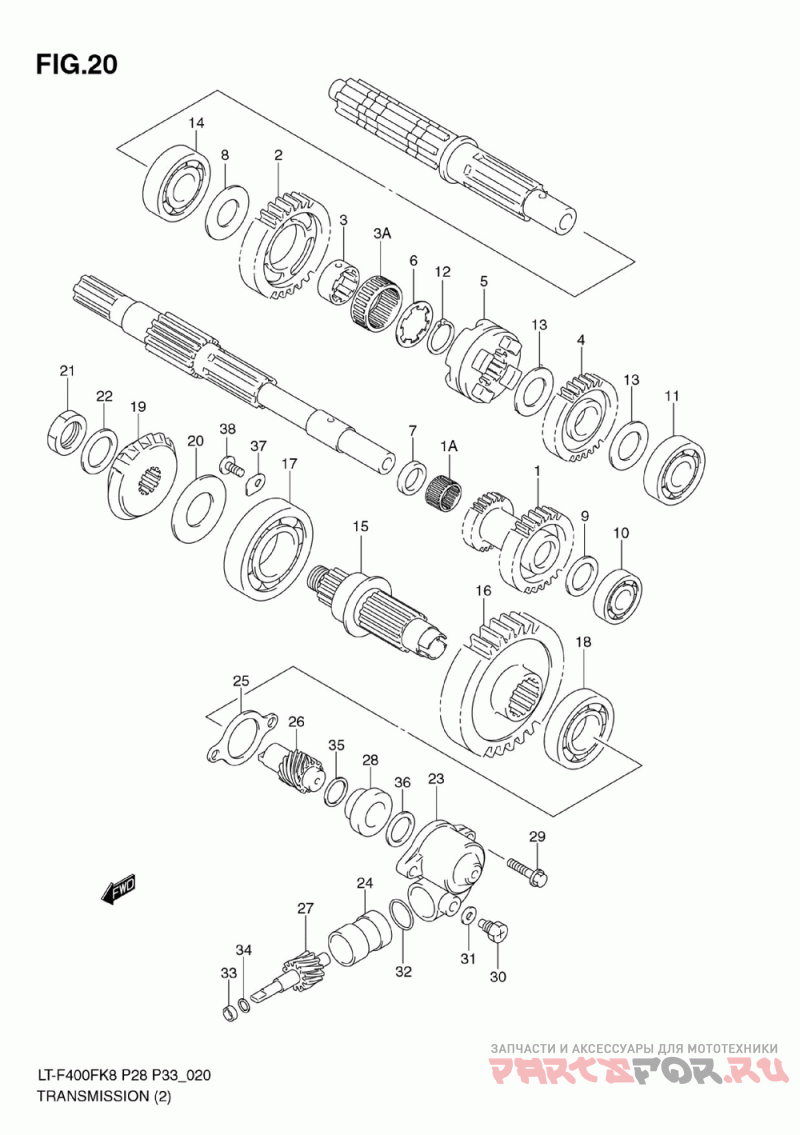

Трансмиссия 2
Suzuki LT-F400F KingQuad 400FS 4x4
| # | oem код | название | цена |
|---|---|---|---|
1 | 29150-38F80 Gear, Sub T/m Id (nt:19/13 ) | Gear, Sub T/m Id (nt:19/13 ) | |
1A | 09263-17001 Bearing (17x21x12.8 ) | Bearing (17x21x12.8 ) | |
2 | 29211-38F80 Gear, Sub T/m Dr (nt:27 ) | Gear, Sub T/m Dr (nt:27 ) | |
3 | 29215-38F80 Bush, Sub T/m Dr ( ) | Bush, Sub T/m Dr ( ) | |
3A | 09263-30056 Bearing, 30x35x1 (30x35x16 Gear ) | Bearing, 30x35x1 (30x35x16 Gear ) | |
4 | 29220-38F50 Gear, Sub T/m Drive No.2 (nt:21 ) | Gear, Sub T/m Drive No.2 (nt:21 ) | |
5 | 29231-38F80 Dog, Sub T/m Sel ( ) | Dog, Sub T/m Sel ( ) | |
6 | 09167-25017 Washer (25.1x40x1.5) ( ) | Washer (25.1x40x1.5) ( ) | |
7 | 09180-17076 Spacer, Sub T/m Idle (17x24x4.5 ) | Spacer, Sub T/m Idle (17x24x4.5 ) | |
8 | 09181-25251 Shim (25x36x1.0) (25x40x1 ) | Shim (25x36x1.0) (25x40x1 ) | |
9 | 09181-15195 Washer (15x26x1.0) (15x26x1.0 ) | Washer (15x26x1.0) (15x26x1.0 ) | |
10 | 09262-15022 Bearing, Cntr, Lh (15x42x13.0 ) | Bearing, Cntr, Lh (15x42x13.0 ) | |
11 | 09262-20139 Bearing, Center Shaft Lh (20x47x14.0 ) | Bearing, Center Shaft Lh (20x47x14.0 ) | |
12 | 09380-25003 Circlip ( ) | Circlip ( ) | |
13 | 08211-20301 Washer, Dr No.2 Rh/lh ( ) | Washer, Dr No.2 Rh/lh ( ) | |
14 | 09262-25124 Bearing, Cntr Shaft Rh ( ) | Bearing, Cntr Shaft Rh ( ) | |
15 | 29121-38F51 Shaft, Sub T/m Output ( ) | Shaft, Sub T/m Output ( ) | |
16 | 29311-38F51 Gear, Sub T/m Driven (nt:35 ) | Gear, Sub T/m Driven (nt:35 ) | |
17 | 09262-35038 Bearing (35x72x17) (35x72x17.0 ) | Bearing (35x72x17) (35x72x17.0 ) | |
18 | 09262-20073 Bearing, Drive Shaft, Rh (20x52x15.0 ) | Bearing, Drive Shaft, Rh (20x52x15.0 ) | |
19 | 24911-44D11 Gear, Sec Drive Bevel Gr (nt:15 ) | Gear, Sec Drive Bevel Gr (nt:15 ) | |
20 | 24935-03811 Shim Set, Sec Drive Bevel Gr (t:0.25/0.30/0.35/0.55 1.28/1.30 ) | Shim Set, Sec Drive Bevel Gr (t:0.25/0.30/0.35/0.55 1.28/1.30 ) | |
21 | 09140-20012 Nut ( ) | Nut ( ) | |
22 | 09181-20223 Washer (20x32x1.0) (20.1x32x1.0 ) | Washer (20x32x1.0) (20.1x32x1.0 ) | |
23 | 26441-19B01 Housing, Odometer Gear ( ) | Housing, Odometer Gear ( ) | |
24 | 26442-19B00 Sleeve ( ) | Sleeve ( ) | |
25 | 26451-19B12 Gasket, Odometer ( ) | Gasket, Odometer ( ) | |
26 | 26461-44D00 Gear, Odometer Drive ( ) | Gear, Odometer Drive ( ) | |
27 | 26471-44D00 Gear, Odometer Driven ( ) | Gear, Odometer Driven ( ) | |
28 | 26481-19B00 Spacer, Odometer Drive Gear ( ) | Spacer, Odometer Drive Gear ( ) | |
29 | 09103-06201 Bolt ( ) | Bolt ( ) | |
30 | 09135-06501 Bolt ( ) | Bolt ( ) | |
31 | 09168-06004 Gasket (6.2x11x1.2) ( ) | Gasket (6.2x11x1.2) ( ) | |
32 | 09280-17004 O Ring, Center Shaft ( ) | O Ring, Center Shaft ( ) | |
33 | 09283-05001 Seal, Odometer (5x12x8) ( ) | Seal, Odometer (5x12x8) ( ) | |
34 | 08211-08151 Washer ( ) | Washer ( ) | |
35 | 08211-15201 Washer ( ) | Washer ( ) | |
36 | 08211-17241 Washer, Crankshaft Thrust ( ) | Washer, Crankshaft Thrust ( ) | |
37 | 24741-21A00 Retainer, Shift Cam Bearing ( ) | Retainer, Shift Cam Bearing ( ) | |
38 | 09125-06110 Screw, Shift Cam (6x12) ( ) | Screw, Shift Cam (6x12) ( ) |
