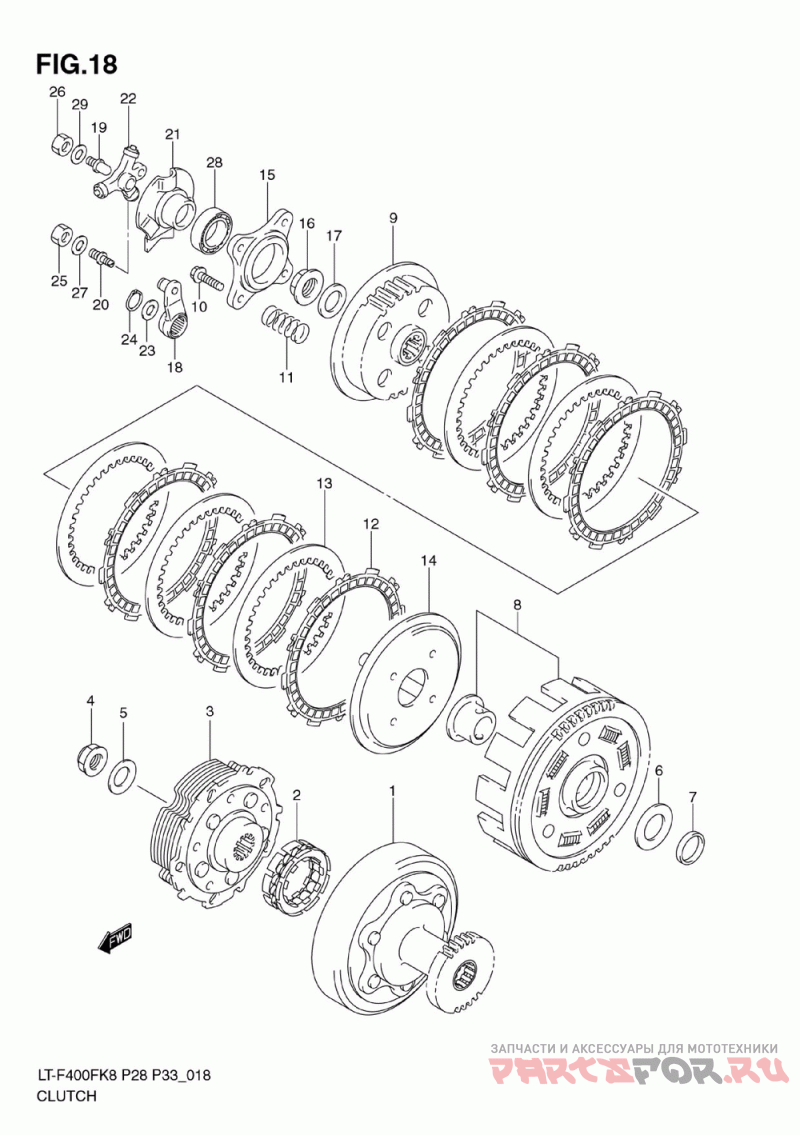

Сцепление
Suzuki LT-F400F KingQuad 400FS 4x4
| # | oem код | название | цена |
|---|---|---|---|
1 | 21120-27H50 Housing , Starte ( ) | Housing , Starte ( ) | |
2 | 21273-44D00 Clutch, Pri Drive One Way ( ) | Clutch, Pri Drive One Way ( ) | |
3 | 21500-27H50 Shoe, Starter Cl ( ) | Shoe, Starter Cl ( ) | |
4 | 21518-44D00 Nut, Starter Clutch Shoe ( ) | Nut, Starter Clutch Shoe ( ) | |
5 | 09164-20007 Washer ( ) | Washer ( ) | |
6 | 09180-22045 Washer, Primary Driven Thr ( ) | Washer, Primary Driven Thr ( ) | |
7 | 08211-22423 Washer, Primary Driven ( ) | Washer, Primary Driven ( ) | |
8 | 21200-38850 Gear Assy, Primary Driven ( ) | Gear Assy, Primary Driven ( ) | |
9 | 21411-44D00 Hub, Clutch Sleeve ( ) | Hub, Clutch Sleeve ( ) | |
10 | 09103-06099 Bolt, Clutch Spring (6x25) ( ) | Bolt, Clutch Spring (6x25) ( ) | |
11 | 21413-38F50 Spring, Clutch ( ) | Spring, Clutch ( ) | |
12 | 21441-44D00 Plate, Clutch Drive ( ) | Plate, Clutch Drive ( ) | |
13 | 21451-44D00 Plate, Driven ( ) | Plate, Driven ( ) | |
14 | 21462-44D00 Disk, Clutch Pressure ( ) | Disk, Clutch Pressure ( ) | |
15 | 21465-44D00 Plate, Clutch Release ( ) | Plate, Clutch Release ( ) | |
16 | 21414-44D00 Nut, Clutch Sleeve Hub ( ) | Nut, Clutch Sleeve Hub ( ) | |
18 | 23220-03G50 Arm, Clutch Release ( ) | Arm, Clutch Release ( ) | |
19 | 23223-44D11 Bolt, Clutch Rlse No.1 ( ) | Bolt, Clutch Rlse No.1 ( ) | |
20 | 23224-44D00 Bolt, Clutch Rlse No.2 ( ) | Bolt, Clutch Rlse No.2 ( ) | |
21 | 23230-03G50 Guide, Cl Release Roller ( ) | Guide, Cl Release Roller ( ) | |
22 | 23250-03G50 Roller Assy, Clutch Release ( ) | Roller Assy, Clutch Release ( ) | |
23 | 08211-10242 Washer, Clutch Rlse Arm ( ) | Washer, Clutch Rlse Arm ( ) | |
24 | 08331-3114A Circlip ( ) | Circlip ( ) | |
25 | 09140-06023 Nut (6x3.6) ( ) | Nut (6x3.6) ( ) | |
26 | 09140-08017 Nut 8mm ( ) | Nut 8mm ( ) | |
27 | 09160-06052 Washer, Outer (6.5x16x1.2 ) | Washer, Outer (6.5x16x1.2 ) | |
28 | 08113-69050 Bearing, Shift Cam ( ) | Bearing, Shift Cam ( ) | |
29 | 09160-08103 Washer, Clutch Rlse No.2 (8x20x1 ) | Washer, Clutch Rlse No.2 (8x20x1 ) | |
17 | 09164-20007 Washer ( ) | Washer ( ) |
