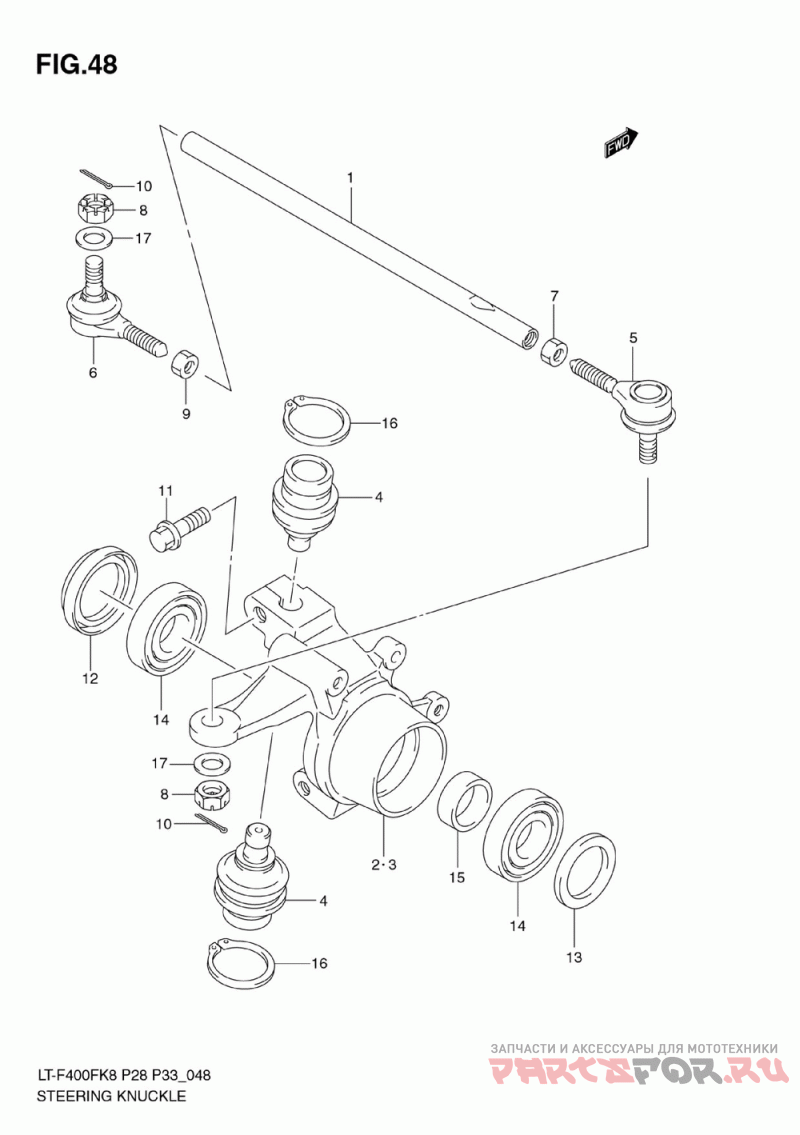

Рулевая , поворотный кулак
Suzuki LT-F400F KingQuad 400FS 4x4
| # | oem код | название | цена |
|---|---|---|---|
1 | 51281-27H00 Tie-rod, Steerin ( ) | Tie-rod, Steerin ( ) | |
2 | 51231-27H00 Knuckle, Steerin ( ) | Knuckle, Steerin ( ) | |
3 | 51241-27H00 Knuckle, Steerin ( ) | Knuckle, Steerin ( ) | |
4 | 51210-38F00 End, Knuckle Steering ( ) | End, Knuckle Steering ( ) | |
5 | 51260-21G00 Rod, End Rh ( ) | Rod, End Rh ( ) | |
6 | 51270-21G00 Rod, End Lh ( ) | Rod, End Lh ( ) | |
7 | 51283-21G00 Nut (rh Thread) ( ) | Nut (rh Thread) ( ) | |
8 | 08314-4010B Nut ( ) | Nut ( ) | |
9 | 09140-10027 Nut, Tie Rod (lh Thread) ( ) | Nut, Tie Rod (lh Thread) ( ) | |
10 | 04111-2020A Cotter Pin ( ) | Cotter Pin ( ) | |
11 | 51233-09F00 Bolt, Knuckle (10x30) ( ) | Bolt, Knuckle (10x30) ( ) | |
12 | 09283-38012 Dust Seal, Inner (38x55x8) ( ) | Dust Seal, Inner (38x55x8) ( ) | |
13 | 09283-38022 Seal, Rear Axle Housing ( ) | Seal, Rear Axle Housing ( ) | |
14 | 08123-60067 Bearing, Hub ( ) | Bearing, Hub ( ) | |
15 | 54731-03G00 Spacer, Hub Bearing ( ) | Spacer, Hub Bearing ( ) | |
16 | 08331-3130A Circlip ( ) | Circlip ( ) | |
17 | 09162-10010 Lock Washer ( ) | Lock Washer ( ) |
