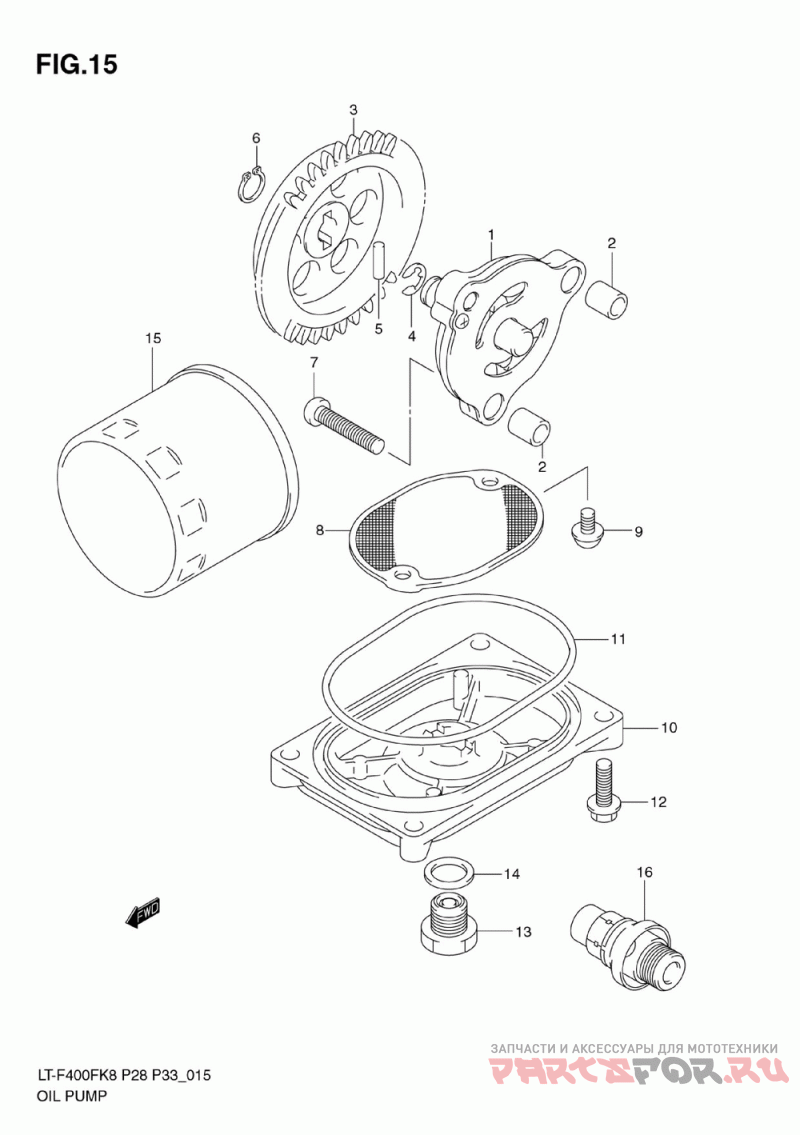

Масляный насос
Suzuki LT-F400F KingQuad 400FS 4x4
| # | oem код | название | цена |
|---|---|---|---|
1 | 16400-27H00 Pump Assy, Engin ( ) | Pump Assy, Engin ( ) | |
2 | 04211-09109 Pin ( ) | Pin ( ) | |
3 | 16331-14D01 Gear, Driven (nt:47) ( ) | Gear, Driven (nt:47) ( ) | |
4 | 09181-10158 Washer ( ) | Washer ( ) | |
5 | 09261-04009 Pin ( ) | Pin ( ) | |
6 | 08331-3110A Circlip ( ) | Circlip ( ) | |
8 | 16520-27H00 Strainer, Engine ( ) | Strainer, Engine ( ) | |
9 | 02112-7512A Bolt ( ) | Bolt ( ) | |
10 | 16523-24501 Cap, Oil Strainer ( ) | Cap, Oil Strainer ( ) | |
11 | 16528-24500 O Ring ( ) | O Ring ( ) | |
12 | 01547-0625B Bolt ( ) | Bolt ( ) | |
13 | 09247-14002 .plug, Oil Drain ( ) | .plug, Oil Drain ( ) | |
14 | 09168-14004 .gasket (14.1x18x1.5) ( ) | .gasket (14.1x18x1.5) ( ) | |
15 | 16510-03G00-X07 Filter, Engine Oil ( ) | Filter, Engine Oil ( ) | |
16 | 16440-27A01 Valve Assy, Oil Relief ( ) | Valve Assy, Oil Relief ( ) | |
3 | 16331-14D02 Gear, Oil Pump D ( ) | Gear, Oil Pump D ( ) | |
15 | 16510-07J00 Filter Assy, Eng ( ) | Filter Assy, Eng ( ) |
