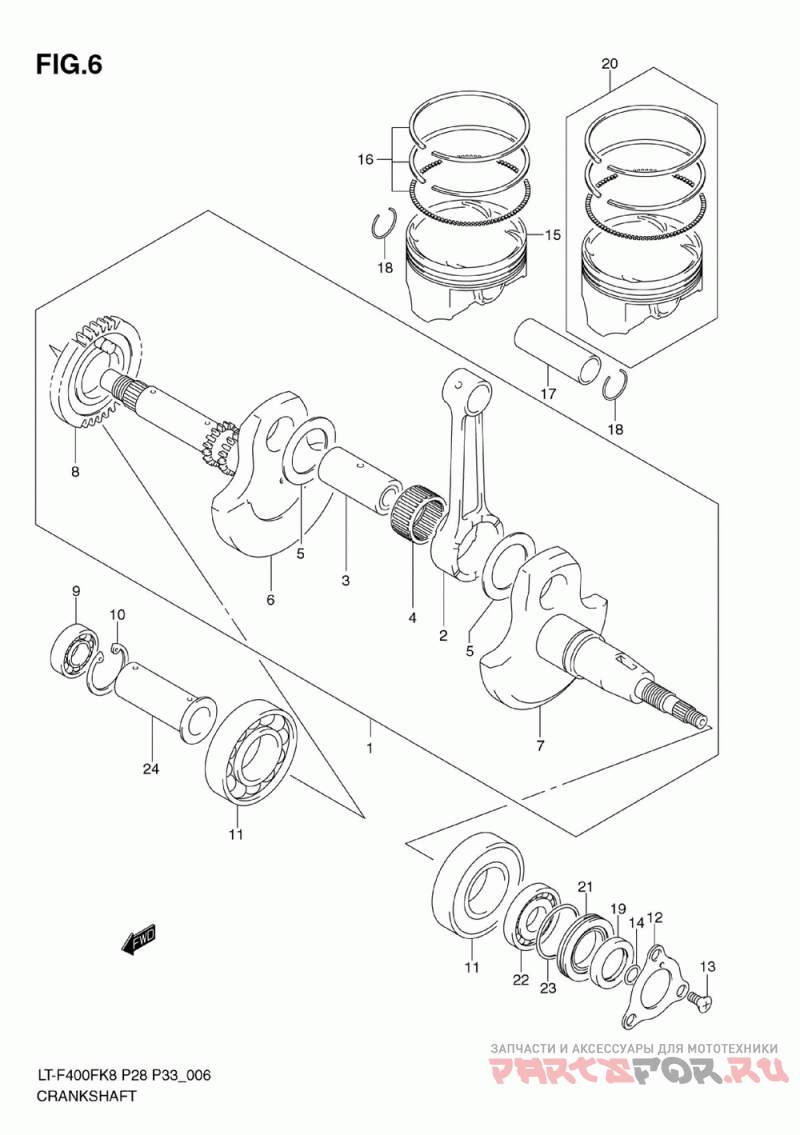

Коленвал
Suzuki LT-F400F KingQuad 400FS 4x4
| # | oem код | название | цена |
|---|---|---|---|
1 | 12200-38861 Crankshaft Set ( ) | Crankshaft Set ( ) | |
2 | 12161-14D00 .rod, Connecting ( ) | .rod, Connecting ( ) | |
3 | 12210-14D03 .pin, Crank ( ) | .pin, Crank ( ) | |
4 | 09263-34005 .bearing (34x43x22) ( ) | .bearing (34x43x22) ( ) | |
5 | 09160-34003 .washer (34x52x1) ( ) | .washer (34x52x1) ( ) | |
6 | 12220-38F61 .crankshaft Comp, R ( ) | .crankshaft Comp, R ( ) | |
7 | 12261-38F60 .crankshaft, Lh ( ) | .crankshaft, Lh ( ) | |
8 | 12661-38F01 .gear, Crank Balancer Drive ( ) | .gear, Crank Balancer Drive ( ) | |
9 | 09262-15014 Bearing, Rh (15x35x11) ( ) | Bearing, Rh (15x35x11) ( ) | |
10 | 08331-41359 08331-41358 ( Rh ) | 08331-41358 ( Rh ) | |
11 | 09262-35038 Bearing (35x72x17) ( ) | Bearing (35x72x17) ( ) | |
12 | 12541-46510 Retainer, Oil Seal Lh ( Seal Lh ) | Retainer, Oil Seal Lh ( Seal Lh ) | |
13 | 09126-06011 Screw, Drive Shaft (6x12) ( ) | Screw, Drive Shaft (6x12) ( ) | |
14 | 09280-12009 O Ring, Crankcase ( ) | O Ring, Crankcase ( ) | |
15 | 12111-38F21-0F0 Piston ( ) | Piston ( ) | |
16 | 12140-38F10 Ring Set, Piston (std) ( ) | Ring Set, Piston (std) ( ) | |
17 | 12151-24A00 Pin, Piston ( ) | Pin, Piston ( ) | |
18 | 09381-20004 Circlip ( ) | Circlip ( ) | |
19 | 09283-25094 Oil Seal (25x36x6) ( ) | Oil Seal (25x36x6) ( ) | |
20 | 12100-38F21-050 Piston Set (os:0.5) (opt ) | Piston Set (os:0.5) (opt ) | |
21 | 12359-44D20 Spacer ( ) | Spacer ( ) | |
22 | 09262-25006 Bearing (25x47x8) ( ) | Bearing (25x47x8) ( ) | |
23 | 09280-44007 O Ring (d:2.4, Id:44.0) ( ) | O Ring (d:2.4, Id:44.0) ( ) | |
24 | 12222-38F50 Spacer, Crankshaft, Rh ( ) | Spacer, Crankshaft, Rh ( ) |
