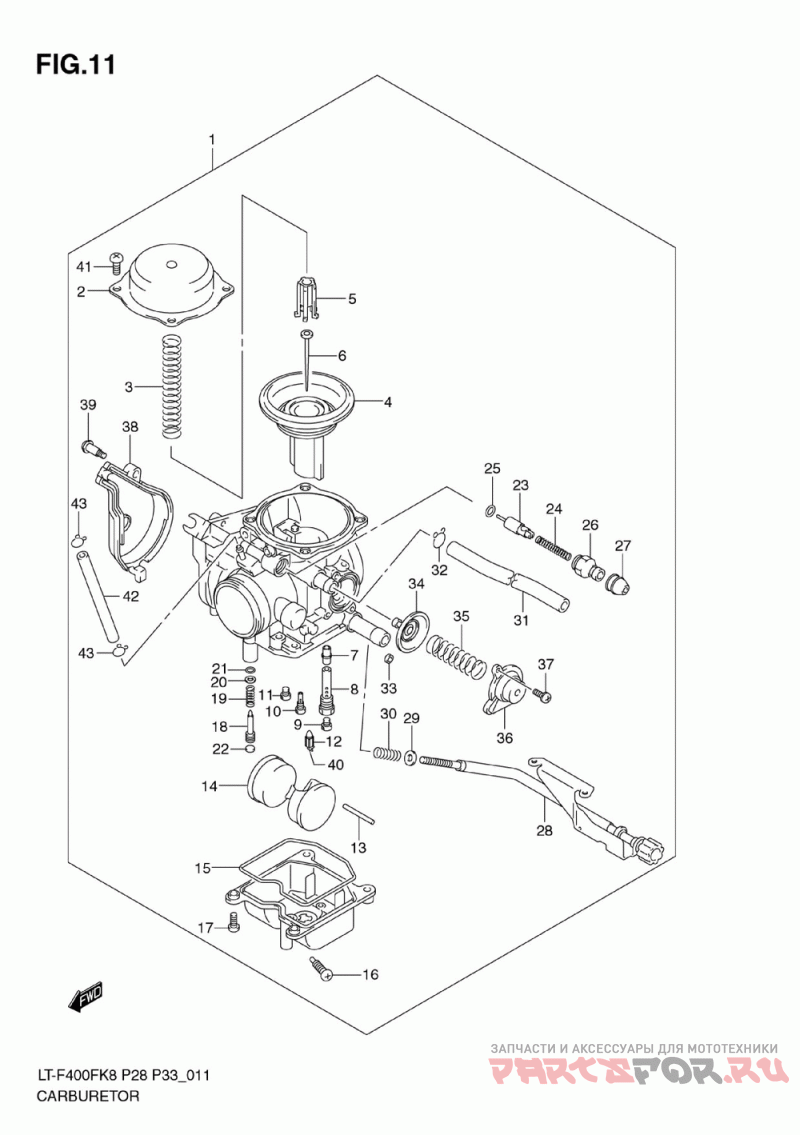

Карбюратор
Suzuki LT-F400F KingQuad 400FS 4x4
| # | oem код | название | цена |
|---|---|---|---|
1-2 | 13200-27H00 Carburetor Assy (model K8 Model K9 ) | Carburetor Assy (model K8 Model K9 ) | |
2 | 13502-38F00 .diaphragm Cover ( ) | .diaphragm Cover ( ) | |
3 | 13503-38F00 .spring ( ) | .spring ( ) | |
4 | 13501-27H00 Diaphragm ( ) | Diaphragm ( ) | |
5 | 13382-26E00 .seat, Spring ( ) | .seat, Spring ( ) | |
6 | 13383-27H00 Needle, Jet ( ) | Needle, Jet ( ) | |
7 | 09494-00869 .jet, Needle ( ) | .jet, Needle ( ) | |
8 | 13342-38F00 .holder, Needle Jet ( ) | .holder, Needle Jet ( ) | |
9 | 09491-25022 Jet, Main(#125.0 ( ) | Jet, Main(#125.0 ( ) | |
10 | 09492-38005 .jet, Pilot (#38) ( ) | .jet, Pilot (#38) ( ) | |
11 | 09491-55009 .jet, Main (#55) ( ) | .jet, Main (#55) ( ) | |
12 | 13370-38F00 .valve Assy, Needle ( ) | .valve Assy, Needle ( ) | |
13 | 13254-26E00 .pin ( ) | .pin ( ) | |
14 | 13250-26E00 .float Assy ( ) | .float Assy ( ) | |
15 | 13258-26E00 .o Ring ( ) | .o Ring ( ) | |
16 | 13247-43E00 .drain Screw ( ) | .drain Screw ( ) | |
17 | 13602-26E10 .screw ( ) | .screw ( ) | |
18 | 13279-03FA0 .screw, Adjust ( ) | .screw, Adjust ( ) | |
19 | 13268-26E00 .spring ( ) | .spring ( ) | |
20 | 13291-26E00 Washer ( ) | Washer ( ) | |
21 | 13295-26E00 O Ring ( ) | O Ring ( ) | |
22 | 13281-26E00 .cap (model K8 E33 Model K9 ) | .cap (model K8 E33 Model K9 ) | |
23 | 13410-27H00 Valve Assy, Star ( ) | Valve Assy, Star ( ) | |
24 | 13417-03G00 .spring ( ) | .spring ( ) | |
25 | 13686-03G00 .o Ring ( ) | .o Ring ( ) | |
26 | 13418-03G00 .holder ( ) | .holder ( ) | |
27 | 13681-28E00 .cap ( ) | .cap ( ) | |
28 | 13270-27H00 Screw, Top ( ) | Screw, Top ( ) | |
29 | 13273-03G00 .washer ( ) | .washer ( ) | |
30 | 13268-35F00 Spring ( ) | Spring ( ) | |
31 | 13683-27H00 Hose ( ) | Hose ( ) | |
32 | 13693-24F00 Clip ( ) | Clip ( ) | |
33 | 13486-15F00 .u Ring ( ) | .u Ring ( ) | |
34 | 13480-38F00 .diaphragm ( ) | .diaphragm ( ) | |
35 | 13481-15F00 .cover ( ) | .cover ( ) | |
36 | 13484-15F00 .cover ( ) | .cover ( ) | |
37 | 13601-15F10 .screw ( ) | .screw ( ) | |
38 | 13578-03G00 .cover ( ) | .cover ( ) | |
39 | 13601-11F00 Screw ( ) | Screw ( ) | |
40 | 13375-26E00 .clip ( ) | .clip ( ) | |
41 | 13602-43E00 .screw ( ) | .screw ( ) | |
42 | 13698-27H00 Hose ( ) | Hose ( ) | |
43 | 13671-26E00 .clip ( ) | .clip ( ) |
