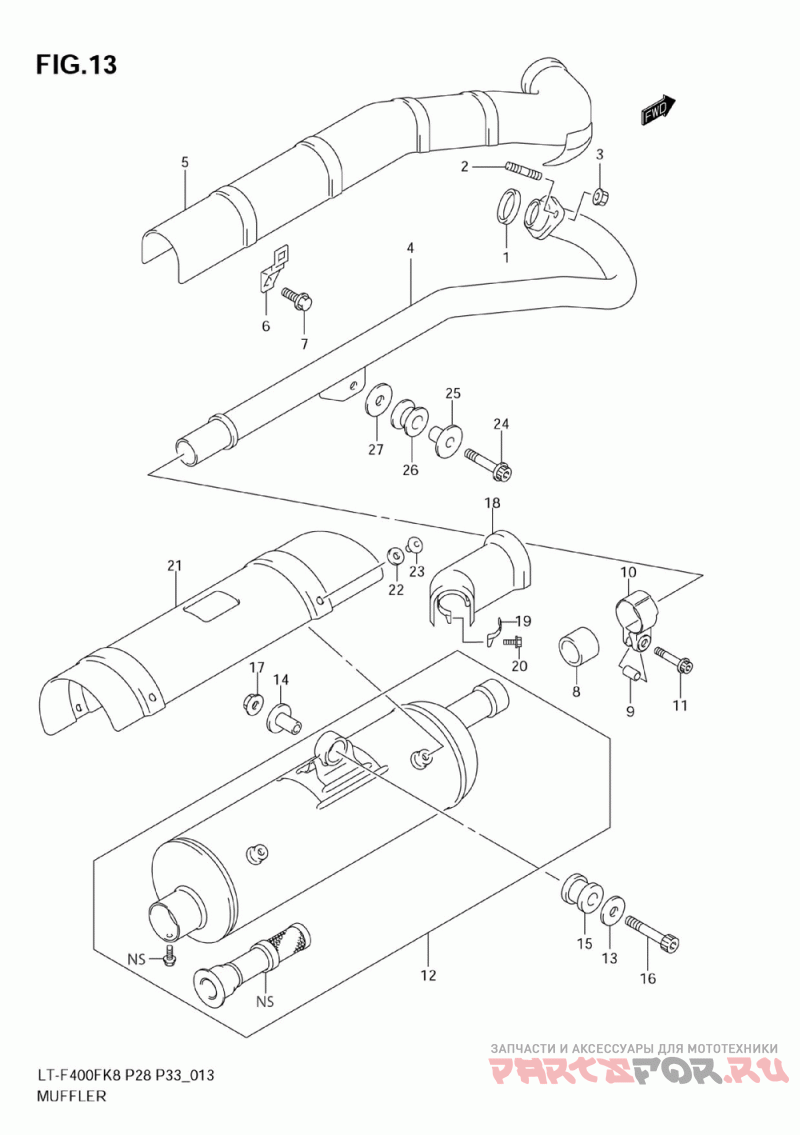

Глушитель
Suzuki LT-F400F KingQuad 400FS 4x4
| # | oem код | название | цена |
|---|---|---|---|
1 | 14181-18C00 Gasket ( ) | Gasket ( ) | |
2 | 01421-0825B Bolt, Stud ( ) | Bolt, Stud ( ) | |
3 | 08319-3108B Nut ( ) | Nut ( ) | |
4 | 14150-38F10 Pipe, Exhaust ( ) | Pipe, Exhaust ( ) | |
5 | 14180-38F40 Cover Comp, Exh ( ) | Cover Comp, Exh ( ) | |
6 | 14185-38F10 Clamp ( ) | Clamp ( ) | |
7 | 01550-0612B Bolt ( ) | Bolt ( ) | |
8 | 14771-38F00 Connector, Muffler ( ) | Connector, Muffler ( ) | |
10 | 14459-38F10 Clamp, Connector ( ) | Clamp, Connector ( ) | |
11 | 07120-0840B Bolt ( ) | Bolt ( ) | |
12 | 14310-38F21 Body, Muffler ( ) | Body, Muffler ( ) | |
13 | 09160-08503 Washer, Muffler Support Rear ( ) | Washer, Muffler Support Rear ( ) | |
14 | 09180-08152 Spacer ( ) | Spacer ( ) | |
15 | 09320-12082 Cushion, Mflr Sp ( ) | Cushion, Mflr Sp ( ) | |
16 | 07130-0845B Bolt ( ) | Bolt ( ) | |
18 | 14790-27H00 Cover Comp, Muf ( ) | Cover Comp, Muf ( ) | |
21 | 14880-38F10 Cover, Muffler Rear ( ) | Cover, Muffler Rear ( ) | |
22 | 09168-06120 .gasket (5.8x13x1.4) ( ) | .gasket (5.8x13x1.4) ( ) | |
23 | 09139-06076 Screw, Exhaust Cover ( ) | Screw, Exhaust Cover ( ) | |
24 | 09106-08133 Bolt, Muffler Support Front ( ) | Bolt, Muffler Support Front ( ) | |
25 | 09180-08151 Spacer (8.6x12x17.5) ( ) | Spacer (8.6x12x17.5) ( ) | |
26 | 09320-12043 Cushion ( ) | Cushion ( ) | |
27 | 09160-08135 Washer (8.5x28x1.6) ( ) | Washer (8.5x28x1.6) ( ) | |
9 | 14458-45G01 Spacer, Clamp ( ) | Spacer, Clamp ( ) | |
17 | 08319-3108B Nut ( ) | Nut ( ) | |
19 | 14185-38F10 Clamp Comp, Exh ( ) | Clamp Comp, Exh ( ) | |
20 | 01550-0612B Bolt ( ) | Bolt ( ) |
