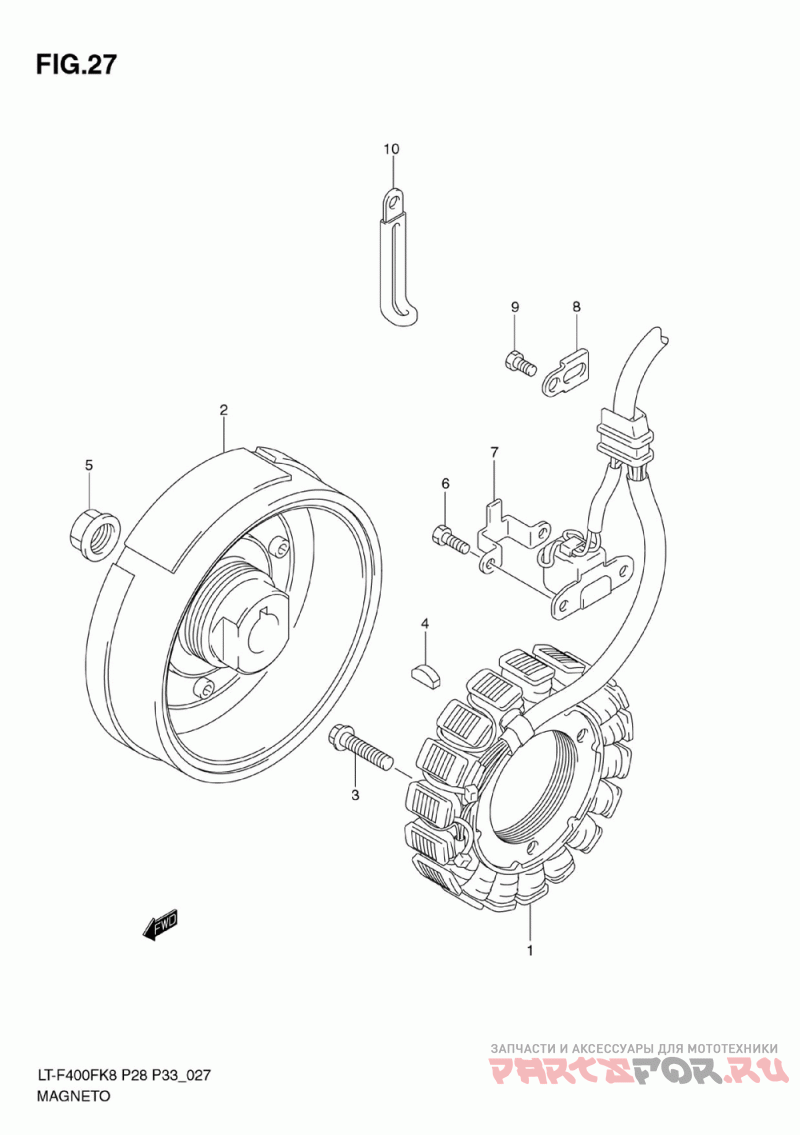

Генератор
Suzuki LT-F400F KingQuad 400FS 4x4
| # | oem код | название | цена |
|---|---|---|---|
1 | 32101-27H00 Stator Assy ( ) | Stator Assy ( ) | |
2 | 32102-27H00 Rotor Assy ( ) | Rotor Assy ( ) | |
3 | 01547-0625B Bolt ( ) | Bolt ( ) | |
4 | 08341-31059 Key, Woodruff ( ) | Key, Woodruff ( ) | |
5 | 31792-18A00 Nut, Magneto Rotor ( ) | Nut, Magneto Rotor ( ) | |
6 | 09100-05019 Bolt (5x10) ( ) | Bolt (5x10) ( ) | |
7 | 31497-45000 Clamp, Gear Shift ( ) | Clamp, Gear Shift ( ) | |
8 | 32371-32E00 Clamp, Magneto Lead ( ) | Clamp, Magneto Lead ( ) | |
10 | 09404-06434 Clamp (l:95) ( ) | Clamp (l:95) ( ) | |
9 | 09100-05019 Bolt 5x10 ( ) | Bolt 5x10 ( ) | |
10 | 09404-06433 Clamp, L:95 ( ) | Clamp, L:95 ( ) |
