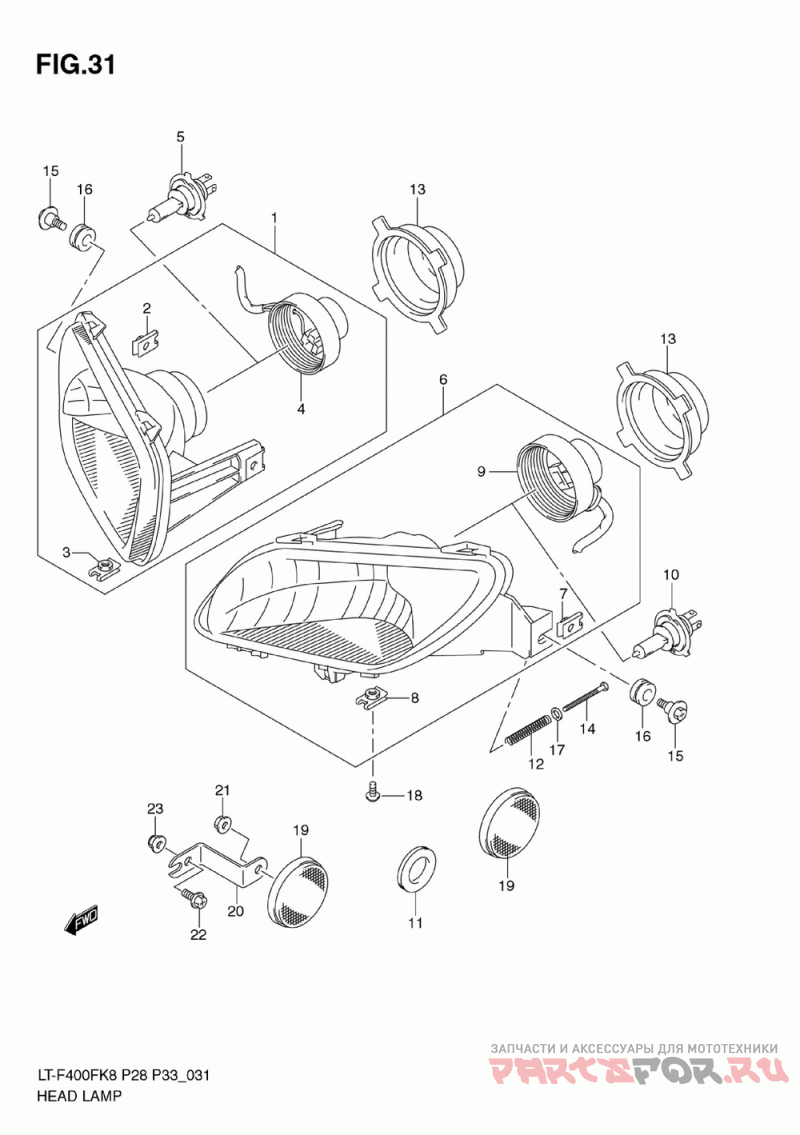

Фара
Suzuki LT-F400F KingQuad 400FS 4x4
| # | oem код | название | цена |
|---|---|---|---|
1 | 35100-31G90-999 Headlamp Assy, R ( ) | Headlamp Assy, R ( ) | |
2 | 35157-31G90 Nut ( ) | Nut ( ) | |
3 | 35157-05G50 .nut (m5) ( ) | .nut (m5) ( ) | |
4 | 35171-31GM0 Cord Assy, R(120 ( ) | Cord Assy, R(120 ( ) | |
5 | 09471-12101 Bulb (12v35/35w, Hs1) ( ) | Bulb (12v35/35w, Hs1) ( ) | |
6 | 35300-31G90-999 Headlamp Assy, L ( ) | Headlamp Assy, L ( ) | |
9 | 35171-31GH0 Cord Assy, L(120 ( ) | Cord Assy, L(120 ( ) | |
11 | 09308-07011 Grommet, Headlamp Housing ( ) | Grommet, Headlamp Housing ( ) | |
12 | 35154-31300 .spring ( ) | .spring ( ) | |
13 | 35174-31G00 Cover, Headlamp Housing ( ) | Cover, Headlamp Housing ( ) | |
14 | 09125-04031 Screw, Headlamp Adjust (4x50 ) | Screw, Headlamp Adjust (4x50 ) | |
15 | 09139-06118 Screw, Rear Comb ( ) | Screw, Rear Comb ( ) | |
16 | 09320-10501 Cushion ( ) | Cushion ( ) | |
17 | 08322-0104A Washer, Cam Rocker Arm ( ) | Washer, Cam Rocker Arm ( ) | |
18 | 09136-05046 Screw, Adjust (5x16) ( ) | Screw, Adjust (5x16) ( ) | |
19 | 35950-14A10 Reflex Reflector Assy, Fr (e28 ) | Reflex Reflector Assy, Fr (e28 ) | |
21 | 08316-1005B Nut (e28 ) | Nut (e28 ) | |
22 | 02162-0516B Screw (e28 ) | Screw (e28 ) | |
23 | 08319-3105B Nut (e28 ) | Nut (e28 ) | |
6 | 35300-31G92-999 Headlamp Assy, L ( ) | Headlamp Assy, L ( ) | |
7 | 35157-31G90 Nut ( ) | Nut ( ) | |
8 | 35157-05G50 Nut, M5 ( ) | Nut, M5 ( ) | |
9 | 35171-31GH1 Cord Assy, L ( ) | Cord Assy, L ( ) | |
10 | 09471-12101 Bulb,12v35/35w, ( ) | Bulb,12v35/35w, ( ) | |
19 | 35950-14A11 Reflex, Reflect (e28 ) | Reflex, Reflect (e28 ) |
