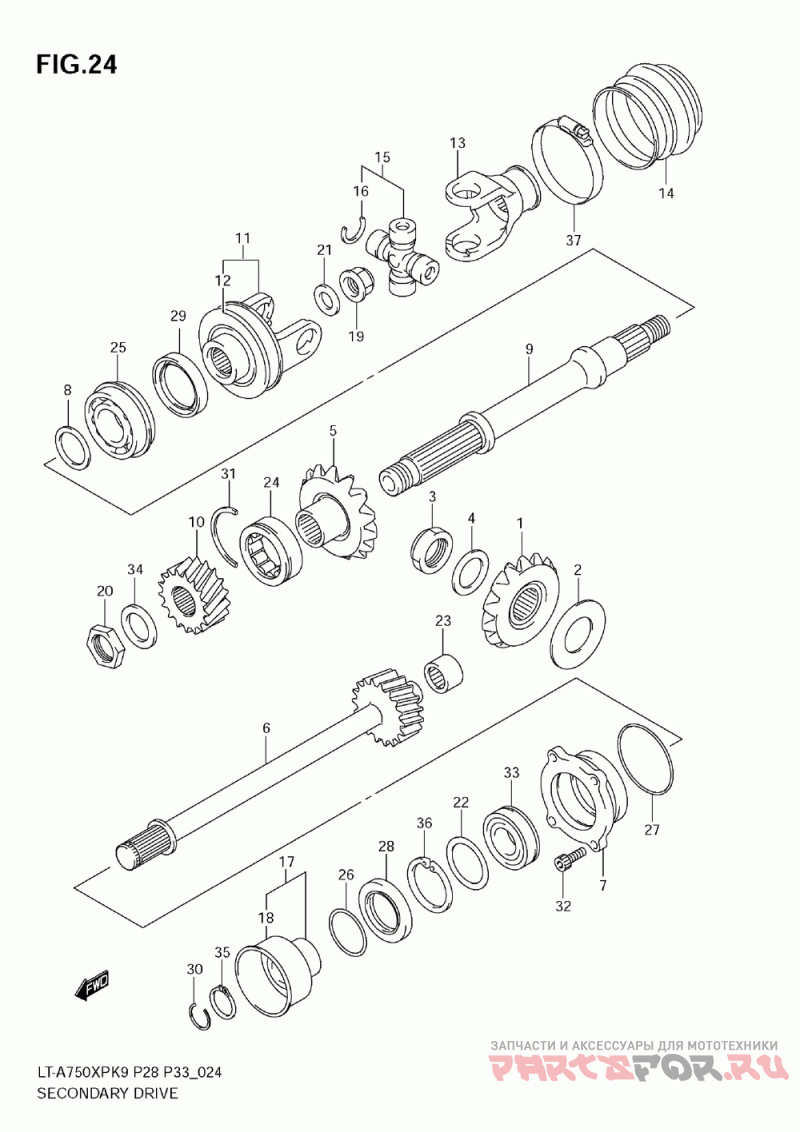

Secondary drive

Suzuki LT-A750XP,Z KingQuad 750AXi Power Steering

Suzuki
#oem кодцена
1
24911-31G00
Gear, Sec Drive Bevel
2
24935-03811
Shim Set, Sec Drive Bevel Gr (t:0.25/0.30/0.35/0.55 1.28/1.30 )
3
09140-20012
Гайка
4
09181-20223
Washer (20x32x1.0) (20x32x1.0)
5
24921-31G00
Gear, Sec Driven Bevel
6
24961-31G20
Shaft, Sec Output, Fr
7
24965-31G00
Housing, Fr Output Shaft
8
24945-03811
Shim, Set, Sec Driven Gear (t:0.55/0.58/0.60/0.63 1.35/1.38/1.40 )
9
24971-31G10
Shaft, Sec Drive
10
24972-31G20
Gear, Sec Driven Output
11
27130-31G10
Yoke, Rr Drive Out
12
27592-31G30
.flange, Output Yoke
13
27141-31G00
Yoke, Prop Shaft
14
27153-31G00
Boot, Rear Output Joint
15
27200-73813
Joint Set, Universal Rr
16
09380-25005
.circlip
17
27590-31G00
Collar, Front Drive
18
27592-31G00
.plate, Output Oil Seal
19
09159-16003
Nut, Sec Driven Bevel Couplin
20
09159-22005
Nut, Sec Driven Gear
21
09160-16026
Washer, Fr Drive Output Yoke (16x30x3.0)
22
09181-40195
.shim (t:1.00) (40x52x1.0)
23
09263-25068
Bearing, Front Output, Rr (25x37x17)
24
09263-30050
Brg, Sec Driven Gear, Mdl (30x50x17)
25
09267-25014
Brg, Sec Driven Output Sft Fr (25x52x20.6)
26
09280-25005
O Ring (d:1.9, Id:24.5) (d:1.9, Id:24.5)
27
09280-57002
.o Ring (d:3.5, Id:65.2)
28
09283-34008
Oil Seal, Driven Sft, Fr (34x52x9)
30
09381-21002
Пружинное стопорное кольцо
31
09390-50002
Ring, Sec Driven Brg, Mdl
32
07130-0620B
Болт
33
09262-25003
.bearing (25x52x15)
34
08211-22365
Washer, Sec Driven Gear
35
08331-3125A
08331-31256
36
08331-4152A
Пружинное стопорное кольцо
37
09402-00512
Зажим
29
09283-34008
Oil Seal 34x52x (34x52x9)
