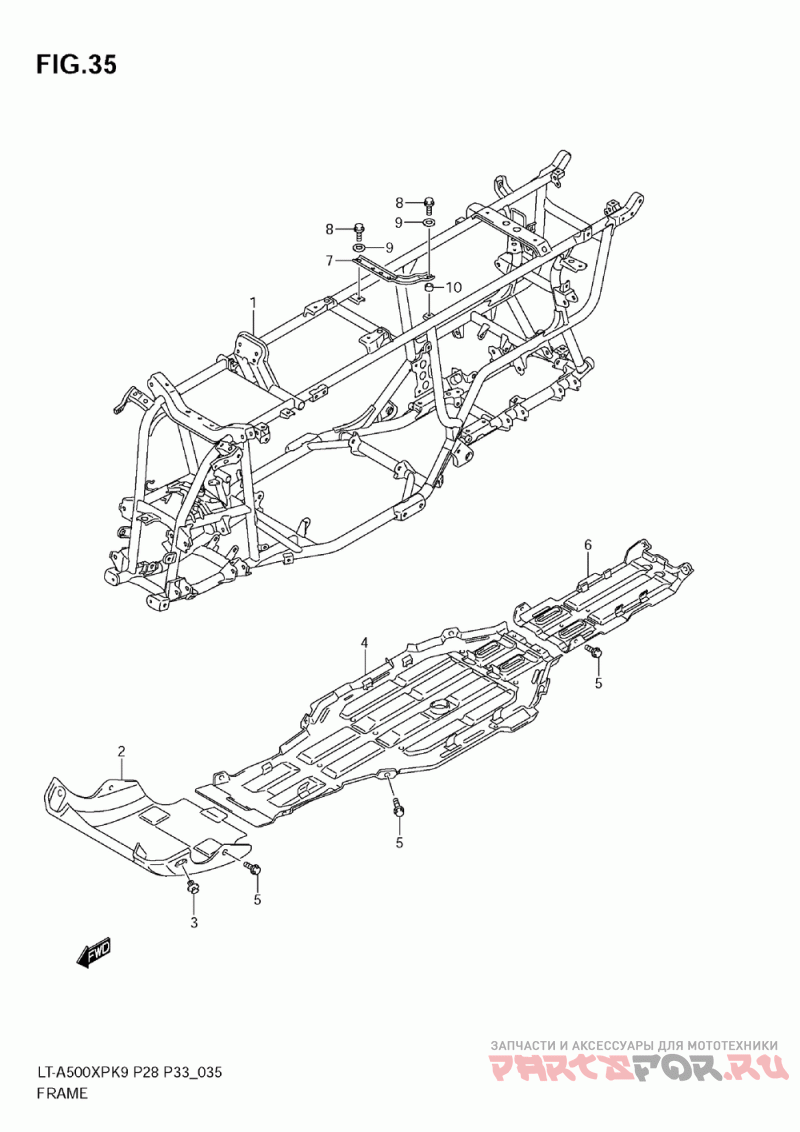

Рама
Suzuki LT-A500XP KINGQUAD 500AXi
| # | oem код | название | цена |
|---|---|---|---|
1 | 41100-31H00-019 Frame, Compl | Frame, Compl | |
2 | 42521-31G00-291 Protector, Front (black) | Protector, Front (black) | |
3 | 09409-08335 Зажим | Зажим | |
4 | 42511-31G02 Protector, Engi | Protector, Engi | |
5 | 09111-06085 Болт М6x12 | Болт М6x12 | |
6 | 42531-31G01 Protector, Rear | Protector, Rear | |
7 | 41561-31GB0 Plate, Battery | Plate, Battery | |
9 | 09160-06109 Шайба | Шайба | |
10 | 41562-31GB0 Spacer, Battery | Spacer, Battery | |
1 | 41100-31H02-019 Frame, Complete | Frame, Complete | |
8 | 09103-06283 Болт 6x16 | Болт 6x16 |
