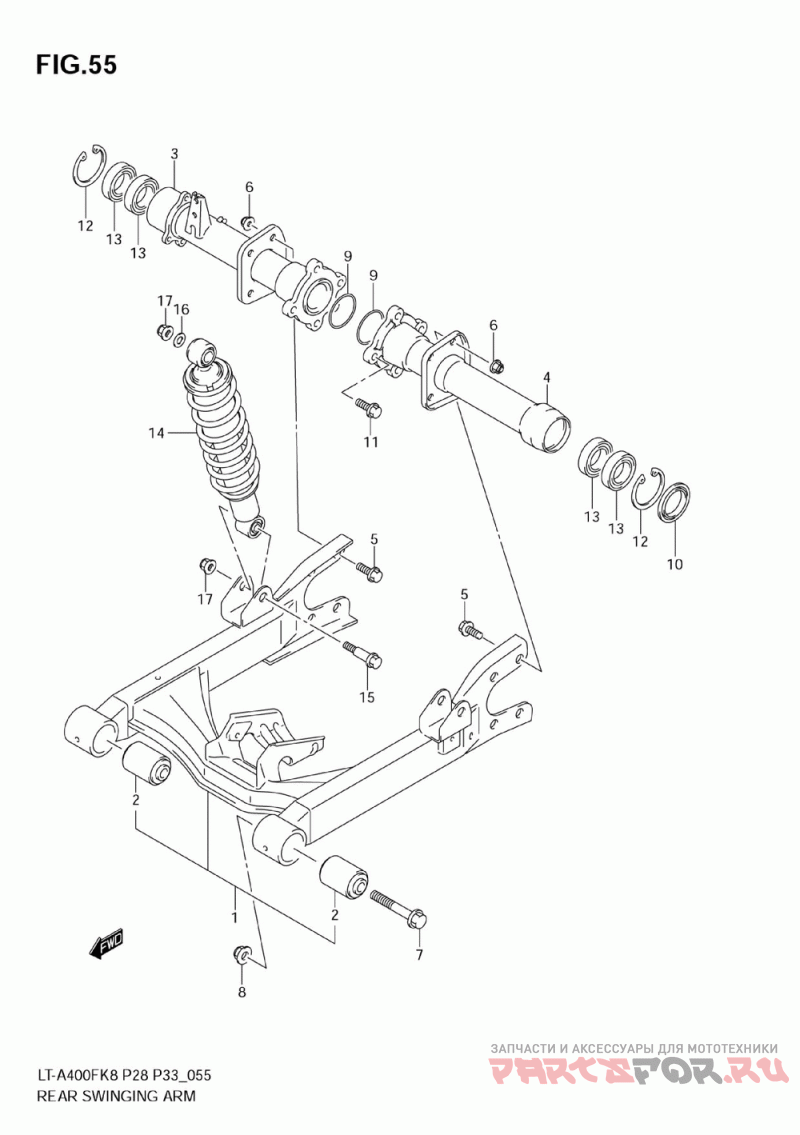

Rear swingingarm
Suzuki LT-A400F KingQuad 400AS 4x4 Auto
| # | oem код | название | цена |
|---|---|---|---|
1 | 61101-27850 Provisional ( ) | Provisional ( ) | |
2 | 61230-27H00 Bush, Rr Swgarm ( ) | Bush, Rr Swgarm ( ) | |
3 | 61300-27H00 Provisional ( ) | Provisional ( ) | |
4 | 61400-27H00 Provisional ( ) | Provisional ( ) | |
5 | 09103-10216 Bolt, Rr Swgarm Bracket, R ( ) | Bolt, Rr Swgarm Bracket, R ( ) | |
6 | 09159-10115 Nut ( ) | Nut ( ) | |
7 | 09103-12068 Bolt, Pivot ( ) | Bolt, Pivot ( ) | |
8 | 09159-12054 Nut ( ) | Nut ( ) | |
9 | 09280-70005 O Ring, Rr Axle Housing Rear ( ) | O Ring, Rr Axle Housing Rear ( ) | |
10 | 09283-38022 Seal, Rear Axle Housing ( ) | Seal, Rear Axle Housing ( ) | |
11 | 09103-10421 Bolt ( ) | Bolt ( ) | |
12 | 08331-4155A Circlip ( ) | Circlip ( ) | |
13 | 08123-60067 Bearing, Hub ( ) | Bearing, Hub ( ) | |
14 | 62100-27H00-019 Shock Absorber ( (black) ) | Shock Absorber ( (black) ) | |
15 | 09103-10126 Bolt, Rear Shock Abs Fr ( ) | Bolt, Rear Shock Abs Fr ( ) | |
16 | 09160-10501 Washer, Upper Outer ( ) | Washer, Upper Outer ( ) | |
17 | 08319-3110B Nut ( ) | Nut ( ) |
