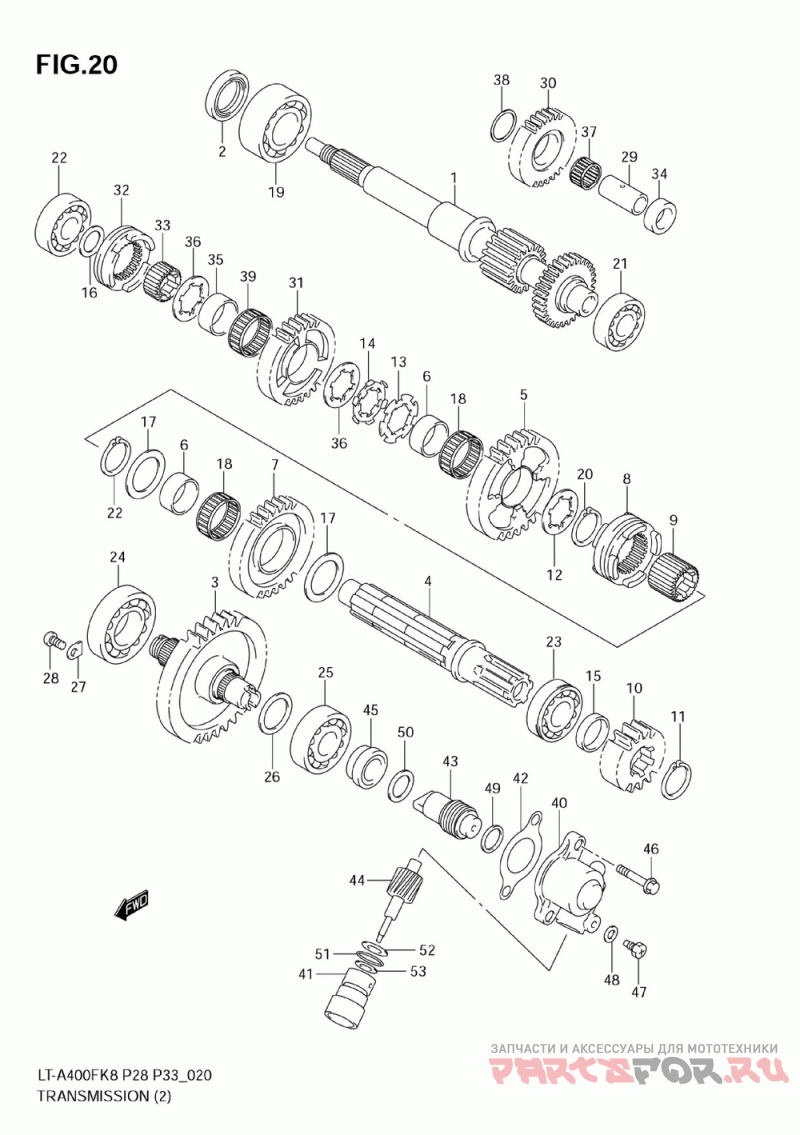

Трансмиссия 2
Suzuki LT-A400F KingQuad 400AS 4x4 Auto
| # | oem код | название | цена |
|---|---|---|---|
1 | 29111-38F10 Shaft, Drive ( ) | Shaft, Drive ( ) | |
2 | 12281-87J00 Seal, Oil ( ) | Seal, Oil ( ) | |
3 | 29120-27H00 Shaft, Sub T/m O ( ) | Shaft, Sub T/m O ( ) | |
4 | 29131-27H00 Shaft, Sub T/m C ( ) | Shaft, Sub T/m C ( ) | |
5 | 29311-09F51 Gear, Sub T/m Driven Low (nt:40 ) | Gear, Sub T/m Driven Low (nt:40 ) | |
6 | 29315-09F51 Bush, Reverse Driven Gear ( ) | Bush, Reverse Driven Gear ( ) | |
7 | 29321-09F51 Gear, Sub T/m Driven High (nt:33 ) | Gear, Sub T/m Driven High (nt:33 ) | |
8 | 29331-38F10 Dog, Sub T/m Select ( ) | Dog, Sub T/m Select ( ) | |
9 | 29332-38F10 Spacer, Sub T/m Select ( ) | Spacer, Sub T/m Select ( ) | |
10 | 29411-38F00 Gear, Sub T/m Drive No.2 (nt:19 ) | Gear, Sub T/m Drive No.2 (nt:19 ) | |
11 | 08331-3125A 08331-31256 ( ) | 08331-31256 ( ) | |
12 | 09167-25017 Washer (25.1x40x1.5) ( ) | Washer (25.1x40x1.5) ( ) | |
13 | 09167-25013 Lock Washer, 3rd Driven ( ) | Lock Washer, 3rd Driven ( ) | |
14 | 09169-25001 Washer, 3rd Driven Lock ( ) | Washer, 3rd Driven Lock ( ) | |
15 | 09180-25097 Spacer, Sub T/m Drive Gear ( ) | Spacer, Sub T/m Drive Gear ( ) | |
16 | 09181-20195 Washer, 1st Driven ( ) | Washer, 1st Driven ( ) | |
17 | 09181-25251 Shim (25x36x1.0) (25x40x1.0 ) | Shim (25x36x1.0) (25x40x1.0 ) | |
18 | 09263-30018 Bearing, Reverse Driven Gear (30x35x12 ) | Bearing, Reverse Driven Gear (30x35x12 ) | |
19 | 08113-62060 Bearing, Final Drive Gear ( ) | Bearing, Final Drive Gear ( ) | |
20 | 09380-25003 Circlip ( ) | Circlip ( ) | |
21 | 09262-20069 Bearing, Counter Shaft Rh (20x47x14 ) | Bearing, Counter Shaft Rh (20x47x14 ) | |
22 | 09262-20073 Bearing, Drive Shaft, Rh (20x52x15 ) | Bearing, Drive Shaft, Rh (20x52x15 ) | |
23 | 09262-25003 .bearing (25x52x15) (25x52x15 ) | .bearing (25x52x15) (25x52x15 ) | |
24 | 09262-35038 Bearing (35x72x17) (35x72x17 ) | Bearing (35x72x17) (35x72x17 ) | |
26 | 09181-20251 Shim (t:1.0) (20x34x1 ) | Shim (t:1.0) (20x34x1 ) | |
27 | 24741-21A00 Retainer, Shift Cam Bearing ( ) | Retainer, Shift Cam Bearing ( ) | |
28 | 09125-06110 Screw, Shift Cam (6x12) ( ) | Screw, Shift Cam (6x12) ( ) | |
29 | 24551-38F00 Shaft, Reverse Idle ( ) | Shaft, Reverse Idle ( ) | |
30 | 24561-27H00 Gear, Reverse Id ( ) | Gear, Reverse Id ( ) | |
31 | 24571-27H00 Gear, Reverse Dr ( ) | Gear, Reverse Dr ( ) | |
32 | 24581-27H00 Dog, Reverse Gr ( ) | Dog, Reverse Gr ( ) | |
33 | 24582-38F10 Spacer, Reverse Idle ( ) | Spacer, Reverse Idle ( ) | |
34 | 24562-27H00 Spacer, Reverse ( ) | Spacer, Reverse ( ) | |
37 | 09263-20060 Bearing, Reverse Idle Gear ( ) | Bearing, Reverse Idle Gear ( ) | |
40 | 26441-19B01 Housing, Odometer Gear ( ) | Housing, Odometer Gear ( ) | |
41 | 26442-19B00 Sleeve ( ) | Sleeve ( ) | |
42 | 26451-19B12 Gasket, Odometer ( ) | Gasket, Odometer ( ) | |
43 | 26461-38F00 Gear, Drive (nt:9) ( ) | Gear, Drive (nt:9) ( ) | |
44 | 26471-38F00 Gear, Drive (nt:15) ( ) | Gear, Drive (nt:15) ( ) | |
45 | 26481-19B00 Spacer, Odometer Drive Gear ( ) | Spacer, Odometer Drive Gear ( ) | |
46 | 09103-06201 Bolt ( ) | Bolt ( ) | |
47 | 09135-06501 Bolt ( ) | Bolt ( ) | |
48 | 09168-06004 Gasket (6.2x11x1.2) ( ) | Gasket (6.2x11x1.2) ( ) | |
49 | 09181-15111 Washer (15x20x1.0) ( ) | Washer (15x20x1.0) ( ) | |
50 | 09181-17139 Washer (17x24x1.0) ( ) | Washer (17x24x1.0) ( ) | |
51 | 09280-17004 O Ring, Center Shaft ( ) | O Ring, Center Shaft ( ) | |
52 | 09283-05001 Seal, Odometer (5x12x8) ( ) | Seal, Odometer (5x12x8) ( ) | |
53 | 08211-08151 Washer ( ) | Washer ( ) | |
25 | 09262-20073 B1 20x52x15 Bea (20x52x15 ) | B1 20x52x15 Bea (20x52x15 ) | |
35 | 29315-09F51 Bush, Reverse Dr ( ) | Bush, Reverse Dr ( ) | |
36 | 09167-25017 Washer ( ) | Washer ( ) | |
38 | 09181-20195 Shim, Crankshaft (20x30x1.0 ) | Shim, Crankshaft (20x30x1.0 ) | |
39 | 09263-30018 Ndl Brg 30x35x1 (30x35x12.8 ) | Ndl Brg 30x35x1 (30x35x12.8 ) |
