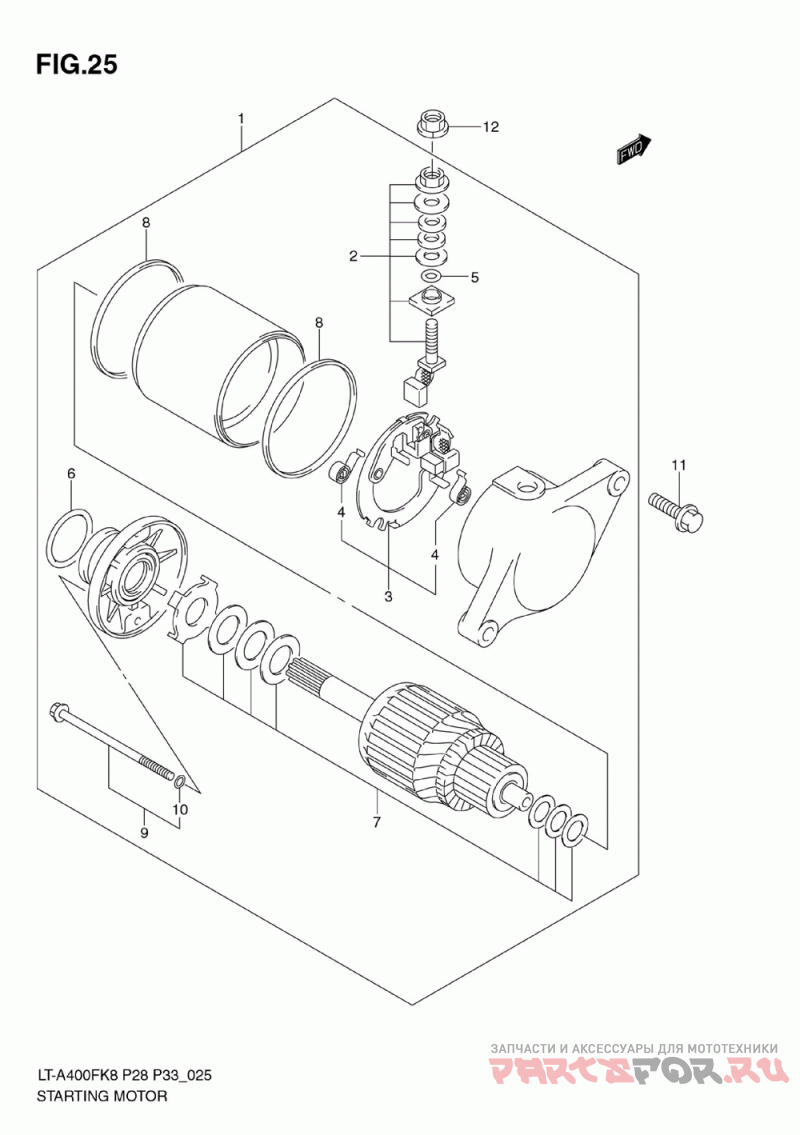

Стартер электрический
Suzuki LT-A400F KingQuad 400AS 4x4 Auto
| # | oem код | название | цена |
|---|---|---|---|
1 | 31100-38F00 Motor Assy, Starting ( ) | Motor Assy, Starting ( ) | |
2 | 31130-13E00 .brush Terminal Set (w/a Brush ) | .brush Terminal Set (w/a Brush ) | |
3 | 31132-13E00 .brush Holder Set (w/b Brush ) | .brush Holder Set (w/b Brush ) | |
4 | 31135-31300 .spring, Brush ( ) | .spring, Brush ( ) | |
5 | 31143-49040 .o Ring ( ) | .o Ring ( ) | |
6 | 09280-24003 .o Ring (d:3.0, Id:24.5) ( ) | .o Ring (d:3.0, Id:24.5) ( ) | |
7 | 31170-19B10 .washer Set ( ) | .washer Set ( ) | |
8 | 31264-13E00 .o Ring ( ) | .o Ring ( ) | |
9 | 31280-13E00 .bolt ( ) | .bolt ( ) | |
10 | 31156-13E00 ..o Ring ( ) | ..o Ring ( ) | |
11 | 09103-06212 Bolt (6x25) ( ) | Bolt (6x25) ( ) | |
12 | 08361-3506A Nut ( ) | Nut ( ) |
