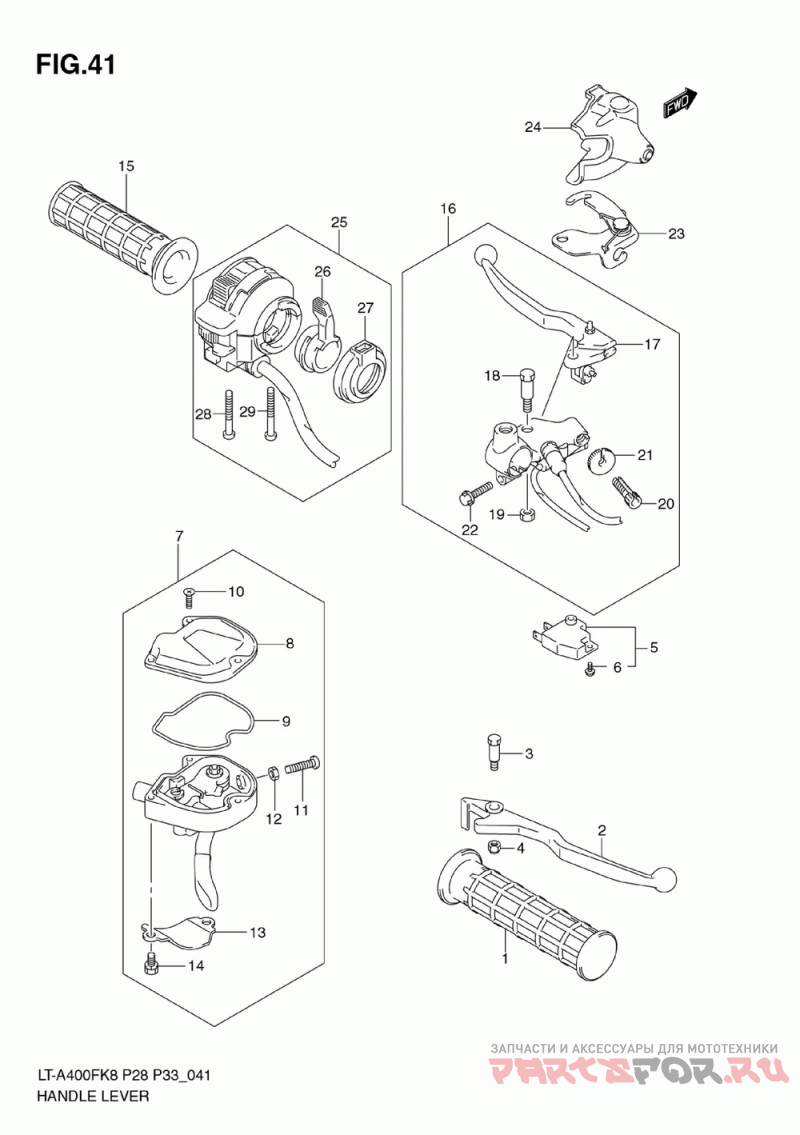

Рулевые переключатели
Suzuki LT-A400F KingQuad 400AS 4x4 Auto
| # | oem код | название | цена |
|---|---|---|---|
1 | 57211-21G10 Grip ( ) | Grip ( ) | |
2 | 57421-39D20 Lever, Front Brake ( ) | Lever, Front Brake ( ) | |
3 | 57431-04F00 .bolt, Pivot ( ) | .bolt, Pivot ( ) | |
4 | 57433-09F00 Nut, Pivot ( ) | Nut, Pivot ( ) | |
5 | 57460-17C11 .switch Assy, Lock ( ) | .switch Assy, Lock ( ) | |
6 | 57465-17C00 .screw ( ) | .screw ( ) | |
7 | 57100-27H01 Case Assy, Throt ( ) | Case Assy, Throt ( ) | |
8 | 57121-27H00 Cap ( ) | Cap ( ) | |
9 | 57157-27H00 Gasket ( ) | Gasket ( ) | |
10 | 57128-07G00 .screw ( ) | .screw ( ) | |
11 | 02112-0520B Screw ( ) | Screw ( ) | |
12 | 08310-0005A Nut ( ) | Nut ( ) | |
13 | 57126-07G00 .holder ( ) | .holder ( ) | |
14 | 57127-07G00 .bolt ( ) | .bolt ( ) | |
16 | 57501-27H00 Lever Set, Rr Br ( ) | Lever Set, Rr Br ( ) | |
17 | 57620-27820 Lever Set, Brake ( ) | Lever Set, Brake ( ) | |
18 | 57431-09F00 .bolt, Pivot ( ) | .bolt, Pivot ( ) | |
19 | 08319-2106B Nut ( ) | Nut ( ) | |
20 | 57441-08C00 .adjuster, Cable ( ) | .adjuster, Cable ( ) | |
21 | 57442-08C00 .nut, Lock ( ) | .nut, Lock ( ) | |
22 | 01547-0620B Bolt, Thermostat Cover ( ) | Bolt, Thermostat Cover ( ) | |
23 | 57790-38FA0 Stopper, Lever ( ) | Stopper, Lever ( ) | |
24 | 57541-38FA0 Cover, Brake ( ) | Cover, Brake ( ) | |
25 | 37400-27H00 Switch Assy, Han ( ) | Switch Assy, Han ( ) | |
26 | 37571-19B01 .lever, Choke ( ) | .lever, Choke ( ) | |
27 | 37576-19B01 .cover, Choke ( ) | .cover, Choke ( ) | |
28 | 02112-05407 .screw ( ) | .screw ( ) | |
29 | 02112-05457 .screw ( ) | .screw ( ) | |
15 | 57211-21G10 Grip ( ) | Grip ( ) |
