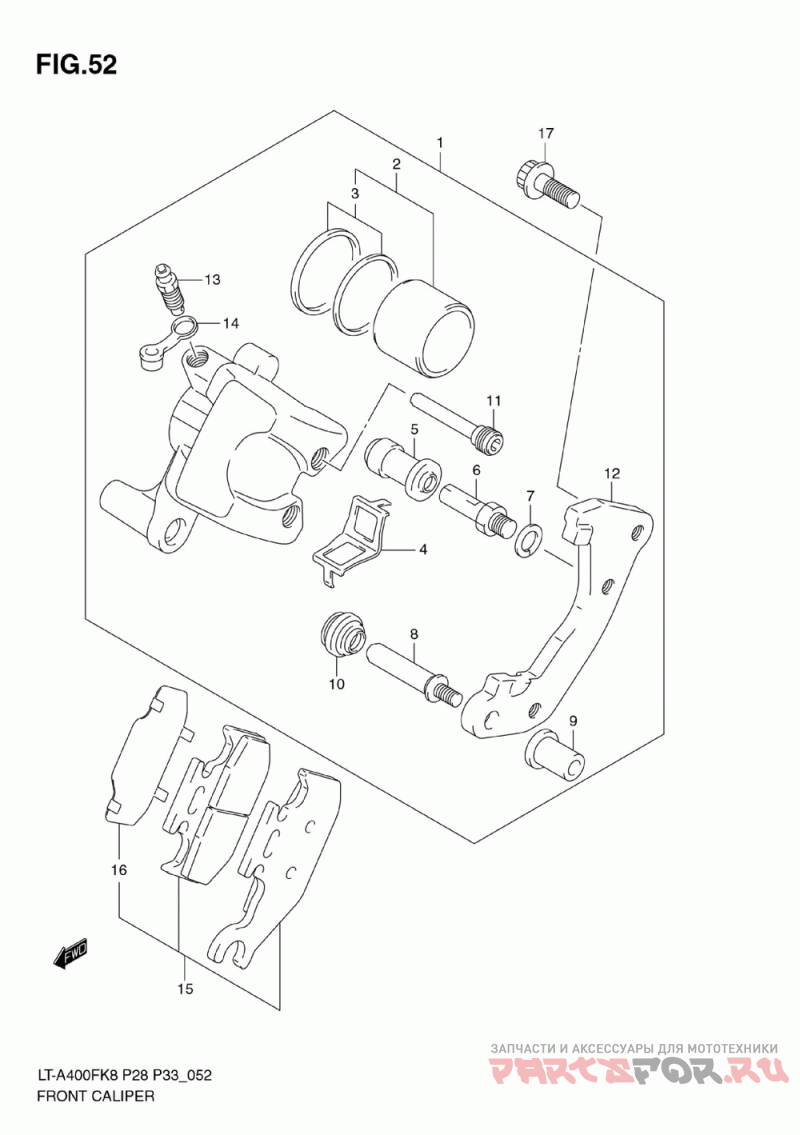

Передний суппорт тормозной
Suzuki LT-A400F KingQuad 400AS 4x4 Auto
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 59100-31G00-999 Caliper Assy, Front Rh ( ) | Caliper Assy, Front Rh ( ) | |
1-2 | 59300-31G01-999 Caliper Assy, Fr ( ) | Caliper Assy, Fr ( ) | |
2 | 59300-13810 .piston Set ( ) | .piston Set ( ) | |
3 | 69100-13820 ..seal Set, Piston ( ) | ..seal Set, Piston ( ) | |
4 | 59315-27C00 .spring, Pad ( ) | .spring, Pad ( ) | |
5 | 59386-13A00 .boot ( ) | .boot ( ) | |
6 | 59382-13A00 .bolt ( ) | .bolt ( ) | |
7 | 59314-13A00 .washer ( ) | .washer ( ) | |
8 | 59387-00B20 .pin ( ) | .pin ( ) | |
9 | 59388-00B20 .nut ( ) | .nut ( ) | |
10 | 59303-14500 .boot ( ) | .boot ( ) | |
11 | 59145-39D00 .pin, Hanger ( ) | .pin, Hanger ( ) | |
12-1 | 59151-31G00 .bracket, Rh ( ) | .bracket, Rh ( ) | |
12-2 | 59351-31G00 .bracket, Lh ( ) | .bracket, Lh ( ) | |
13 | 59121-01A00 .bleeder ( ) | .bleeder ( ) | |
14 | 59122-01A00 .cap, Bleeder ( ) | .cap, Bleeder ( ) | |
15-1 | 59100-31870 Pad & Shim Set, ( ) | Pad & Shim Set, ( ) | |
15-2 | 59100-31880 Pad & Shim Set, ( ) | Pad & Shim Set, ( ) | |
16 | 69132-28C00 .shim ( ) | .shim ( ) | |
17 | 09106-08174 Bolt, Muffler Joint ( ) | Bolt, Muffler Joint ( ) |
