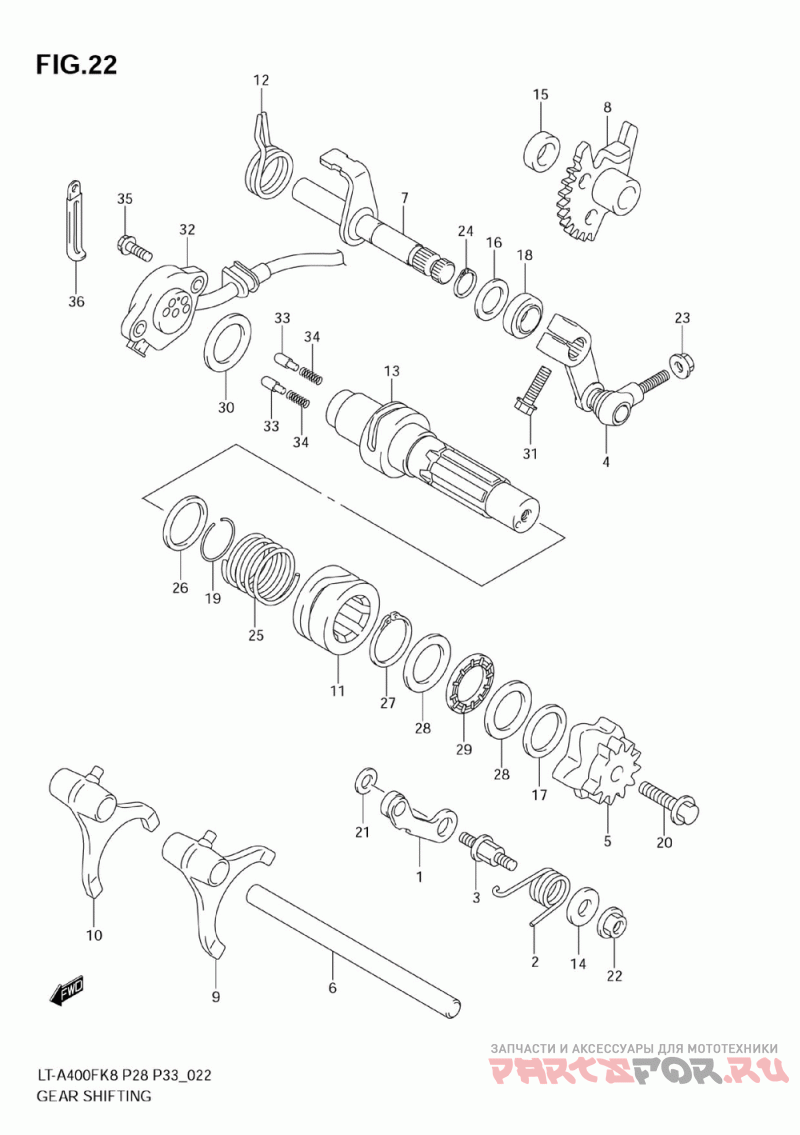

Механизм переключения передач
Suzuki LT-A400F KingQuad 400AS 4x4 Auto
| # | oem код | название | цена |
|---|---|---|---|
1 | 25350-26D01 Stopper, Gear Shift Cam ( ) | Stopper, Gear Shift Cam ( ) | |
2 | 25355-38F00 Spring.stopper Arm ( ) | Spring.stopper Arm ( ) | |
3 | 25356-12C00 Support, Cam Stopper Arm ( ) | Support, Cam Stopper Arm ( ) | |
4 | 25360-11H10 Arm, Sub T/m Gea ( ) | Arm, Sub T/m Gea ( ) | |
5 | 25381-38F10 Plate, Gr Shift ( ) | Plate, Gr Shift ( ) | |
6 | 25411-18900 Shaft, Gear Shifting Fork ( ) | Shaft, Gear Shifting Fork ( ) | |
7 | 25510-27H00 Shaft, Sub T/m G ( ) | Shaft, Sub T/m G ( ) | |
8 | 25540-27H00 Gear, Sub T/m Sh ( ) | Gear, Sub T/m Sh ( ) | |
9 | 29511-44D00 Fork, Gr Shift ( ) | Fork, Gr Shift ( ) | |
11 | 29611-27H00 Cam, Sub T/m Gea ( ) | Cam, Sub T/m Gea ( ) | |
12 | 29613-31G00 Spring, Shift Arm Return ( ) | Spring, Shift Arm Return ( ) | |
13 | 29620-27H01 Shaft, Sub T/m G ( ) | Shaft, Sub T/m G ( ) | |
14 | 09160-06022 Washer, Spring Stopper (6.5x16x2.30 ) | Washer, Spring Stopper (6.5x16x2.30 ) | |
15 | 09180-12100 Spacer, 12x22x8. ( ) | Spacer, 12x22x8. ( ) | |
16 | 09181-12167 Washer, Oil Pump Driven Gear (12x20x1.0 ) | Washer, Oil Pump Driven Gear (12x20x1.0 ) | |
17 | 09181-20158 Washer (20x28x0.5 ) | Washer (20x28x0.5 ) | |
18 | 09285-12006 Oil Seal (12x22x9) (12x22x9.0 ) | Oil Seal (12x22x9) (12x22x9.0 ) | |
19 | 09380-25012 Ring, 2nd Drive ( ) | Ring, 2nd Drive ( ) | |
20 | 01550-0625B Bolt ( ) | Bolt ( ) | |
21 | 08211-06141 Washer ( ) | Washer ( ) | |
22 | 08316-1006B Nut ( ) | Nut ( ) | |
23 | 08310-0006B Nut ( ) | Nut ( ) | |
24 | 08331-3112A Circlip, Gear Shift Lever ( ) | Circlip, Gear Shift Lever ( ) | |
25 | 29612-38F00 Spring, Sub T/m Shift Cam ( ) | Spring, Sub T/m Shift Cam ( ) | |
26 | 09181-25139 Washer, 1st Driven Gear, L (25x32x1.0 ) | Washer, 1st Driven Gear, L (25x32x1.0 ) | |
27 | 08331-3125A 08331-31256 ( ) | 08331-31256 ( ) | |
28 | 09181-20251 Shim (t:1.0) (20x34x1.0 ) | Shim (t:1.0) (20x34x1.0 ) | |
29 | 09263-20014 Bearing (20x35x2.0) (20x35x2 ) | Bearing (20x35x2.0) (20x35x2 ) | |
30 | 09181-25167 Washer, 5th Drive ( ) | Washer, 5th Drive ( ) | |
31 | 01550-0620B Bolt ( ) | Bolt ( ) | |
32 | 37720-27H00 Base Assy, Gear ( ) | Base Assy, Gear ( ) | |
33 | 09209-05011 Contact ( ) | Contact ( ) | |
34 | 09440-04010 Spring ( ) | Spring ( ) | |
35 | 07120-0516A Bolt ( ) | Bolt ( ) | |
36 | 09404-06432 .clamp, Sw Leads ( ) | .clamp, Sw Leads ( ) | |
10 | 29511-44D00 Fork, Sub T/m Ge ( ) | Fork, Sub T/m Ge ( ) | |
36 | 09404-06429 Clamp ( ) | Clamp ( ) |
