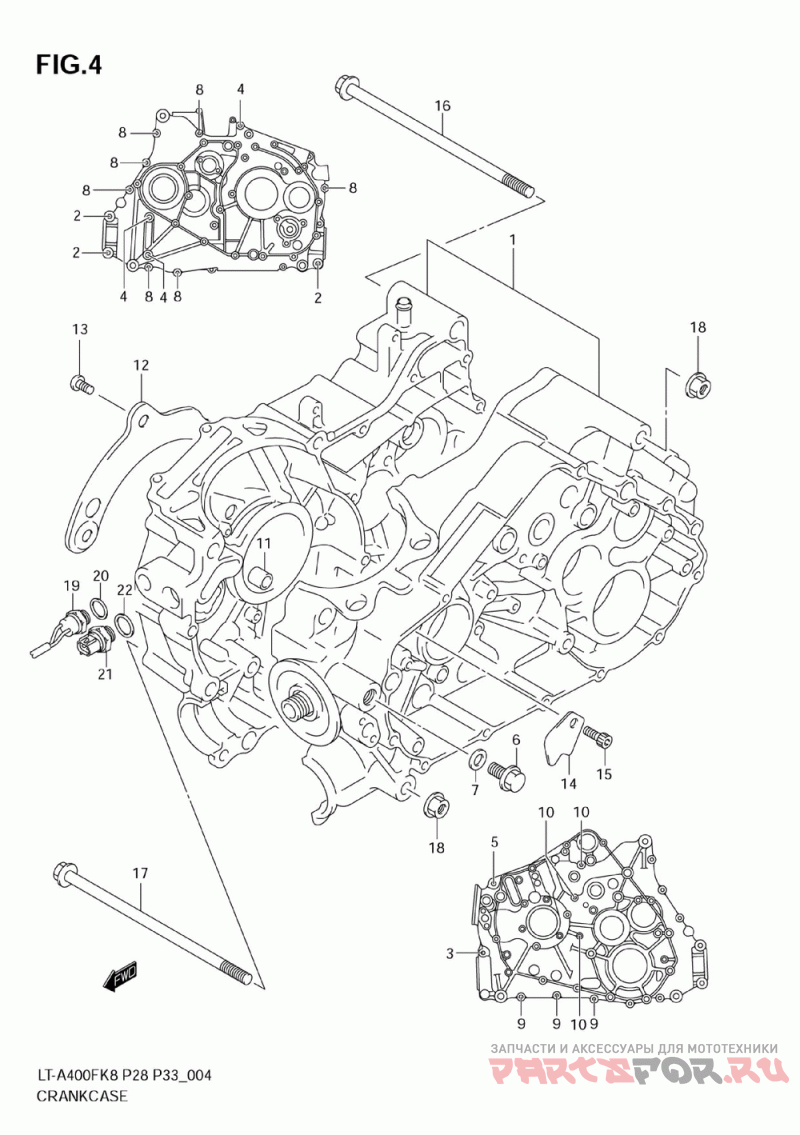

Картер
Suzuki LT-A400F KingQuad 400AS 4x4 Auto
| # | oem код | название | цена |
|---|---|---|---|
1 | 11302-38812 Crankcase Set ( ) | Crankcase Set ( ) | |
2 | 09103-08081 Bolt ( ) | Bolt ( ) | |
5 | 09103-08217 Bolt (8x60) ( ) | Bolt (8x60) ( ) | |
6 | 09247-14015 Plug, Tdc ( ) | Plug, Tdc ( ) | |
7 | 09168-14004 .gasket (14.1x18x1.5) ( ) | .gasket (14.1x18x1.5) ( ) | |
8 | 01547-0645B Bolt ( ) | Bolt ( ) | |
10 | 01547-0670B Bolt ( ) | Bolt ( ) | |
11 | 04211-13189 Pin ( ) | Pin ( ) | |
12 | 11317-38F00 Plate, Oil Guide ( ) | Plate, Oil Guide ( ) | |
13 | 02112-0612B Screw ( ) | Screw ( ) | |
14 | 11323-38F00 Plate, Oil Guide Lh ( ) | Plate, Oil Guide Lh ( ) | |
16 | 09103-10118 Bolt (l:195) ( ) | Bolt (l:195) ( ) | |
17 | 11611-03G00 Bolt (10x180) ( ) | Bolt (10x180) ( ) | |
18 | 09159-10115 Nut ( ) | Nut ( ) | |
19 | 17680-19B70 Switch, Cooling Fan ( ) | Switch, Cooling Fan ( ) | |
20 | 09168-16002 Gasket (16x22x2.0) ( ) | Gasket (16x22x2.0) ( ) | |
21 | 17680-39D10 Switch, Oil Lamp ( ) | Switch, Oil Lamp ( ) | |
22 | 09168-18009 Gasket, Switch ( ) | Gasket, Switch ( ) | |
4 | 09103-08300 .bolt (8x85) ( ) | .bolt (8x85) ( ) | |
3 | 09103-08081 Bolt Eng Mount ( ) | Bolt Eng Mount ( ) | |
9 | 01547-0645B Bolt ( ) | Bolt ( ) | |
15 | 02112-0612B Screw ( ) | Screw ( ) |
