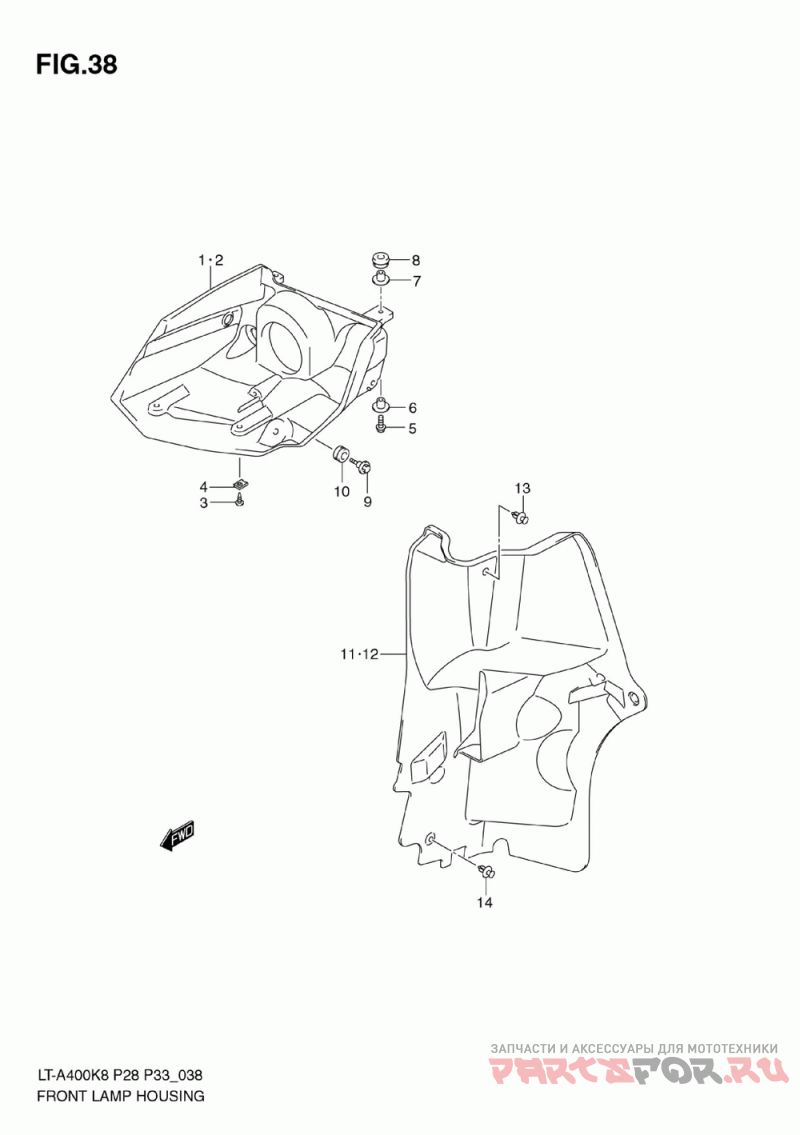

Front lamp housing
Suzuki LT-A400 KingQuad 400AS
| # | oem код | название | цена |
|---|---|---|---|
1 | 53281-27H00-291 Lamp Housing;fr ( ) | Lamp Housing;fr ( ) | |
2 | 53284-27H00-291 Lamp Housing;fr ( ) | Lamp Housing;fr ( ) | |
3 | 03241-0516B Screw ( ) | Screw ( ) | |
4 | 09148-05038 Nut ( ) | Nut ( ) | |
5 | 01550-0630B Bolt ( ) | Bolt ( ) | |
6 | 09169-06073 Washer ( ) | Washer ( ) | |
7 | 09169-06074 Spacer ( ) | Spacer ( ) | |
8 | 09320-11021 Cushion ( ) | Cushion ( ) | |
9 | 09139-06118 Screw, Rear Comb ( ) | Screw, Rear Comb ( ) | |
10 | 09320-10501 Cushion ( ) | Cushion ( ) | |
11 | 53411-27H00 Mudflap;front, R ( ) | Mudflap;front, R ( ) | |
12 | 53421-27H00 Mudflap;fr, L ( ) | Mudflap;fr, L ( ) | |
13 | 09409-07333 Clip, Tray ( ) | Clip, Tray ( ) | |
14 | 09409-08335 Clip ( ) | Clip ( ) | |
1 | 53281-27H01-291 Housing, Front L ( ) | Housing, Front L ( ) | |
2 | 53284-27H01-291 Housing, Fr Lamp ( ) | Housing, Fr Lamp ( ) |
