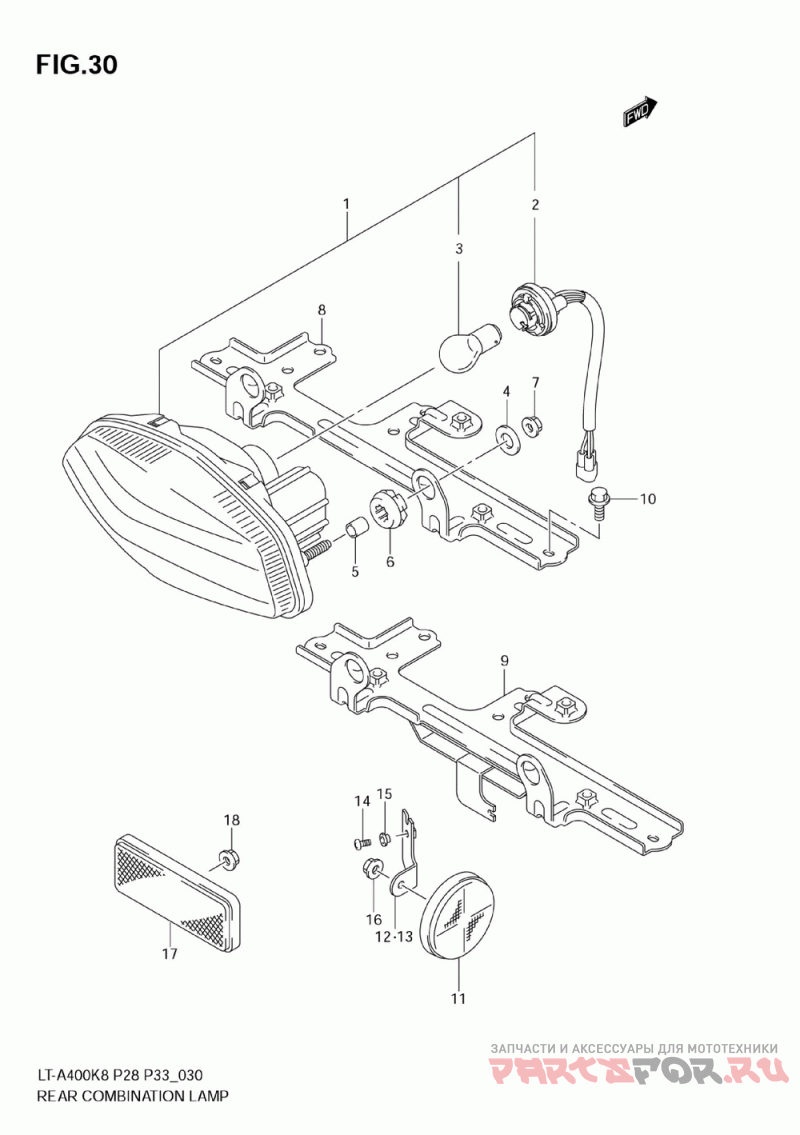

Задний фонарь
Suzuki LT-A400 KingQuad 400AS
| # | oem код | название | цена |
|---|---|---|---|
1 | 35710-31G00 Lamp Assy, Rear Comb ( ) | Lamp Assy, Rear Comb ( ) | |
2 | 35718-03G30 .socket/cord Assy ( ) | .socket/cord Assy ( ) | |
3 | 09471-12128 Bulb (12v, 21/5w) ( ) | Bulb (12v, 21/5w) ( ) | |
4 | 09160-06077 Washer, License (6.5x20x1.2 ) | Washer, License (6.5x20x1.2 ) | |
5 | 09180-06264 Spacer (6.5x9x10.5) (6.5x9x10.5 ) | Spacer (6.5x9x10.5) (6.5x9x10.5 ) | |
6 | 09320-09018 Cushion ( ) | Cushion ( ) | |
7 | 08316-1006B Nut ( ) | Nut ( ) | |
8 | 35720-27H00 Bracket, Rear Co (e33 ) | Bracket, Rear Co (e33 ) | |
10 | 01550-0612B Bolt ( ) | Bolt ( ) | |
11 | 35970-14A20 Reflector Assy, Rear Side (e28 ) | Reflector Assy, Rear Side (e28 ) | |
14 | 09125-05073 Screw (e28 ) | Screw (e28 ) | |
15 | 09169-06071 Washer (e28 ) | Washer (e28 ) | |
16 | 08316-1005B Nut (e28 ) | Nut (e28 ) | |
17 | 35970-07F01 Reflector Assy, (e28 ) | Reflector Assy, (e28 ) | |
18 | 08316-1005B Nut (e28 ) | Nut (e28 ) |
