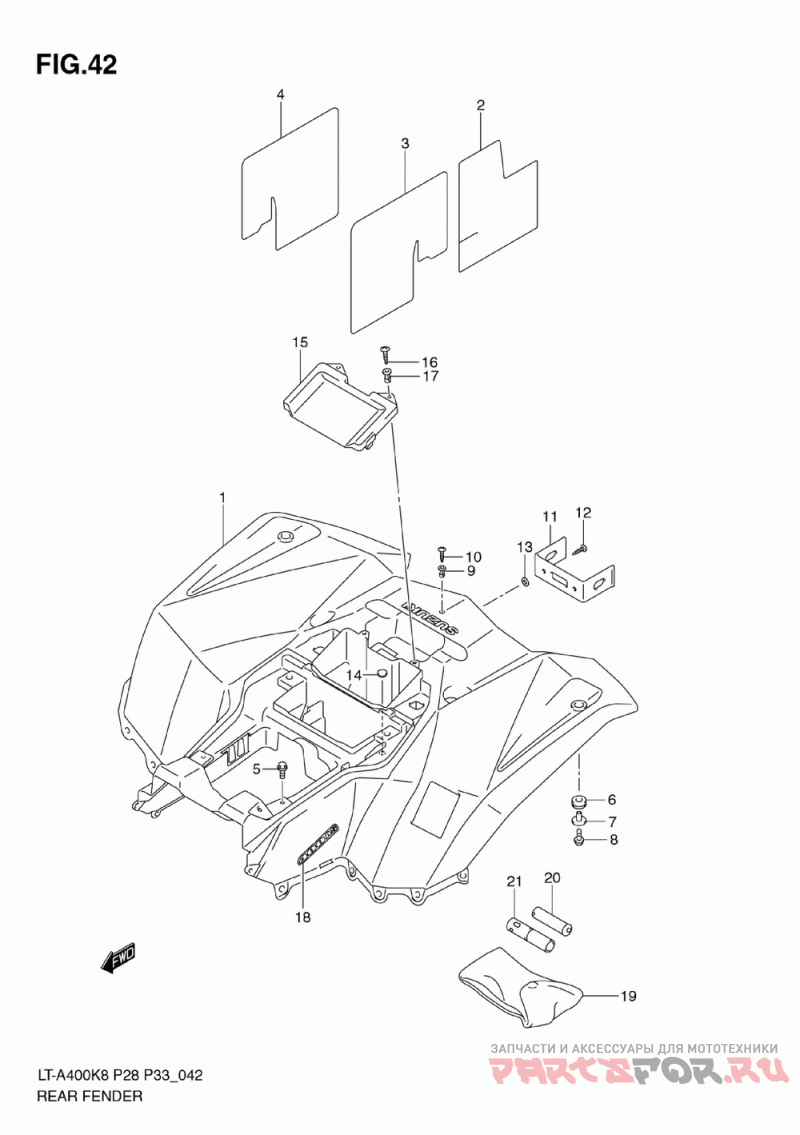

Заднее крыло
Suzuki LT-A400 KingQuad 400AS
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 63111-27H01-YT9 Fender, Rear ( ) | Fender, Rear ( ) | |
1-2 | 63111-27H01-YLG Fender, Rear ( ) | Fender, Rear ( ) | |
1-3 | 63111-27H00-YLZ Fender, Rear (bl ( ) | Fender, Rear (bl ( ) | |
2 | 63122-27H00 Shield, Rr Fende ( ) | Shield, Rr Fende ( ) | |
3 | 63123-27H00 Shield, Rr Fende ( ) | Shield, Rr Fende ( ) | |
4 | 63124-27H00 Shield, Rr Fende ( ) | Shield, Rr Fende ( ) | |
5 | 09116-06006 Bolt ( ) | Bolt ( ) | |
6 | 09320-11021 Cushion ( ) | Cushion ( ) | |
7 | 09169-06074 Spacer ( ) | Spacer ( ) | |
8 | 01550-0625A Bolt ( ) | Bolt ( ) | |
9 | 09159-05019 .nut, Air Intk Inner Guide ( ) | .nut, Air Intk Inner Guide ( ) | |
10 | 02142-0520B Screw ( ) | Screw ( ) | |
11 | 47413-38F01 Plate, Cdi Unit ( ) | Plate, Cdi Unit ( ) | |
12 | 09229-04020 Rivet ( ) | Rivet ( ) | |
13 | 08322-0104A Washer, Cam Rocker Arm ( ) | Washer, Cam Rocker Arm ( ) | |
14 | 09250-08007 Cap ( ) | Cap ( ) | |
15 | 63112-27H00 Cover, Rear Fend ( ) | Cover, Rear Fend ( ) | |
16 | 09409-08329 Grommet ( ) | Grommet ( ) | |
17 | 09409-08330 Plunger ( ) | Plunger ( ) | |
18-1 | 68171-27H10-FGW Emblem, Rear Fen (model K8 ) | Emblem, Rear Fen (model K8 ) | |
19 | 09800-21055 Tool Assy ( ) | Tool Assy ( ) | |
20 | 96200-18A02 Gauge, Air ( ) | Gauge, Air ( ) | |
18-2 | 68171-27H10-FSB Emblem, Rear Fen (model K9 ) | Emblem, Rear Fen (model K9 ) | |
1-1 | 63111-27H02-YT9 Fender, Rear(red ( ) | Fender, Rear(red ( ) | |
1-2 | 63111-27H02-YLG Fender, Rerr(gre ( ) | Fender, Rerr(gre ( ) | |
1-3 | 63111-27H01-YLZ Fender, Rear (bl ( ) | Fender, Rear (bl ( ) |
