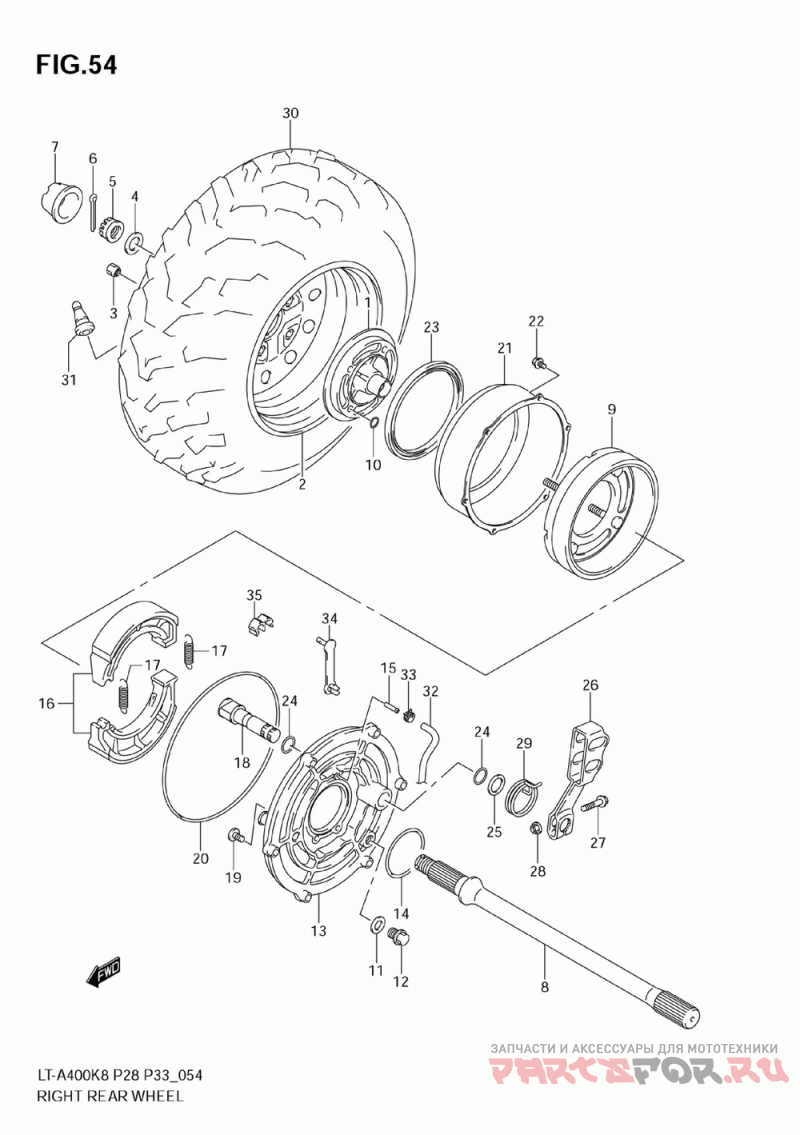

Заднее колесо правое
Suzuki LT-A400 KingQuad 400AS
| # | oem код | название | цена |
|---|---|---|---|
1 | 64111-38F32 Деталь Hub, Rear Wheel Rh ( ) | Деталь Hub, Rear Wheel Rh ( ) | |
2 | 65310-38F40-YL8 Деталь Rim, Rr Wheel ( (silver) ) | Деталь Rim, Rr Wheel ( (silver) ) | |
3 | 09140-10021 Деталь Nut ( ) | Деталь Nut ( ) | |
4 | 64723-38F00 Деталь Washer ( ) | Деталь Washer ( ) | |
5 | 09141-20008 Деталь Nut, Hub ( ) | Деталь Nut, Hub ( ) | |
6 | 04111-4035A Деталь Pin, Cotter ( ) | Деталь Pin, Cotter ( ) | |
7 | 54725-09F01 Деталь Cap, Wheel Center ( ) | Деталь Cap, Wheel Center ( ) | |
8 | 64711-38F20 Деталь Axle, Rear Rh ( ) | Деталь Axle, Rear Rh ( ) | |
9 | 64120-38F00 Деталь Drum, Brake ( ) | Деталь Drum, Brake ( ) | |
10 | 09280-10016 Деталь .o Ring ( ) | Деталь .o Ring ( ) | |
11 | 09161-10007 Деталь Washer, Drain Plug ( ) | Деталь Washer, Drain Plug ( ) | |
12 | 09247-10008 Деталь Plug, Oil Gallery ( ) | Деталь Plug, Oil Gallery ( ) | |
13 | 64210-38F10 Деталь Provisional ( ) | Деталь Provisional ( ) | |
14 | 09280-63001 Деталь O Ring, Panel ( ) | Деталь O Ring, Panel ( ) | |
15 | 09364-04004 Деталь Union, Panel ( ) | Деталь Union, Panel ( ) | |
16 | 64400-38830 Деталь Shoe Set, Brake ( ) | Деталь Shoe Set, Brake ( ) | |
17 | 55420-30000 Деталь Spring, Shoe ( ) | Деталь Spring, Shoe ( ) | |
18 | 64440-09F00 Деталь Cam, Rear Brake ( ) | Деталь Cam, Rear Brake ( ) | |
19 | 09106-08161 Деталь Bolt, Drive Shaft Housing ( ) | Деталь Bolt, Drive Shaft Housing ( ) | |
20 | 09280-00038 Деталь O Ring, Panel ( ) | Деталь O Ring, Panel ( ) | |
21 | 64123-38F00 Деталь Cover, Rear Brake ( ) | Деталь Cover, Rear Brake ( ) | |
22 | 01547-0612A Деталь Bolt, Push Rod Guide ( ) | Деталь Bolt, Push Rod Guide ( ) | |
23 | 64124-38F00 Деталь Dust Seal, Drum Cover ( ) | Деталь Dust Seal, Drum Cover ( ) | |
24 | 64443-18A00 Деталь O Ring, Cam (15.9x19.7x2) ( ) | Деталь O Ring, Cam (15.9x19.7x2) ( ) | |
25 | 09160-16033 Деталь Washer ( ) | Деталь Washer ( ) | |
26 | 64451-09F00 Деталь Lever, Brake Cam ( ) | Деталь Lever, Brake Cam ( ) | |
27 | 01550-0635A Деталь Bolt ( ) | Деталь Bolt ( ) | |
28 | 08316-1006A Деталь Nut ( ) | Деталь Nut ( ) | |
29 | 64484-38F00 Деталь Spring, Cam Lever ( ) | Деталь Spring, Cam Lever ( ) | |
30 | 65110-38FC0 Деталь Tire Comp, Rear ( ) | Деталь Tire Comp, Rear ( ) | |
31 | 43130-24A00 Деталь Valve Assy, Wheel Rim (tr412) ( ) | Деталь Valve Assy, Wheel Rim (tr412) ( ) | |
32 | 64275-27H00 Деталь Provisional ( ) | Деталь Provisional ( ) | |
33 | 09401-06405 Деталь Clip ( ) | Деталь Clip ( ) | |
34 | 09407-03401 Деталь Clamp ( ) | Деталь Clamp ( ) | |
35 | 09408-00200 Деталь Clamp ( ) | Деталь Clamp ( ) |
