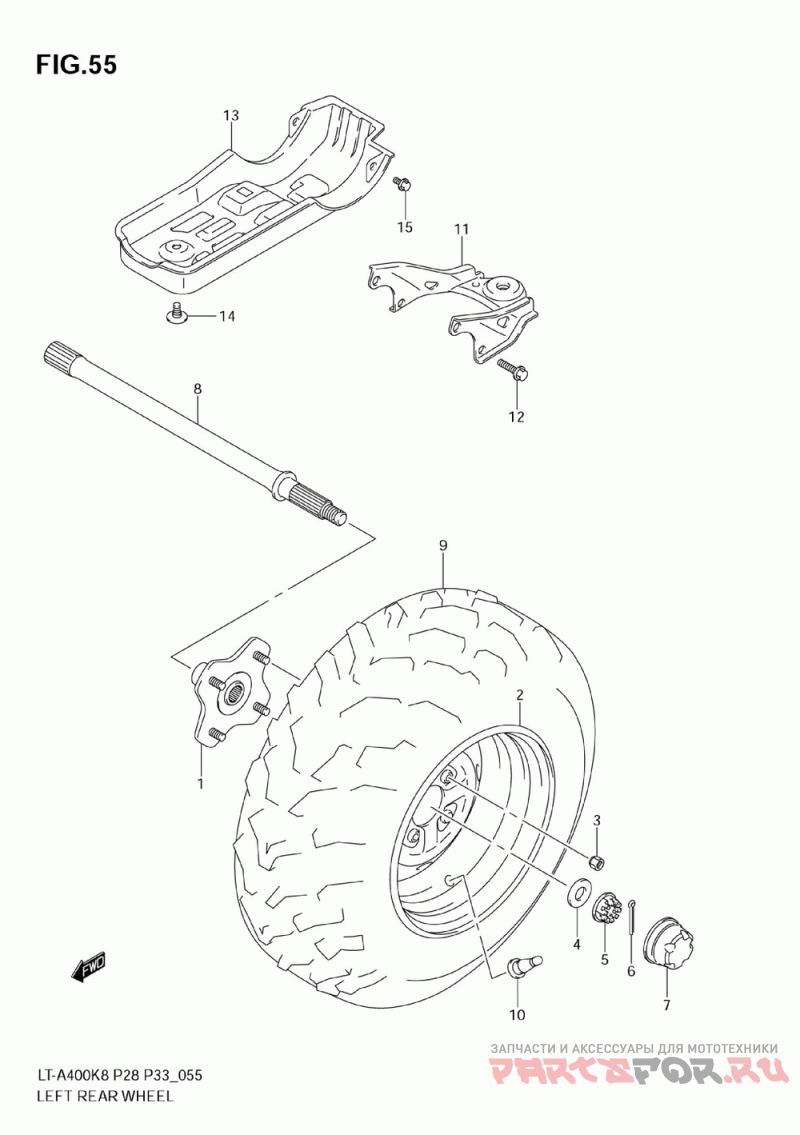

Заднее колесо левое
Suzuki LT-A400 KingQuad 400AS
| # | oem код | название | цена |
|---|---|---|---|
1 | 64110-38F30 Hub, Cmpl, L ( ) | Hub, Cmpl, L ( ) | |
2 | 65310-38F40-YL8 Rim, Rr Wheel ( (silver) ) | Rim, Rr Wheel ( (silver) ) | |
3 | 09140-10021 Nut ( ) | Nut ( ) | |
4 | 64723-38F00 Washer ( ) | Washer ( ) | |
5 | 09141-20008 Nut, Hub ( ) | Nut, Hub ( ) | |
6 | 04111-4035A Pin, Cotter ( ) | Pin, Cotter ( ) | |
7 | 54725-09F01 Cap, Wheel Center ( ) | Cap, Wheel Center ( ) | |
8 | 64712-38F20 Axle, Rear Lh ( ) | Axle, Rear Lh ( ) | |
9 | 65110-38FC0 Tire Comp, Rear ( ) | Tire Comp, Rear ( ) | |
10 | 43130-24A00 Valve Assy, Wheel Rim (tr412) ( ) | Valve Assy, Wheel Rim (tr412) ( ) | |
11 | 95210-38F10 Plate, Trailer Tow ( ) | Plate, Trailer Tow ( ) | |
12 | 09103-10422 Bolt ( ) | Bolt ( ) | |
13 | 61391-38F10 Protector, Final ( ) | Protector, Final ( ) | |
14 | 61393-09F00 Bolt, Guard ( ) | Bolt, Guard ( ) | |
15 | 09111-06095 Bolt, Rear ( ) | Bolt, Rear ( ) |
