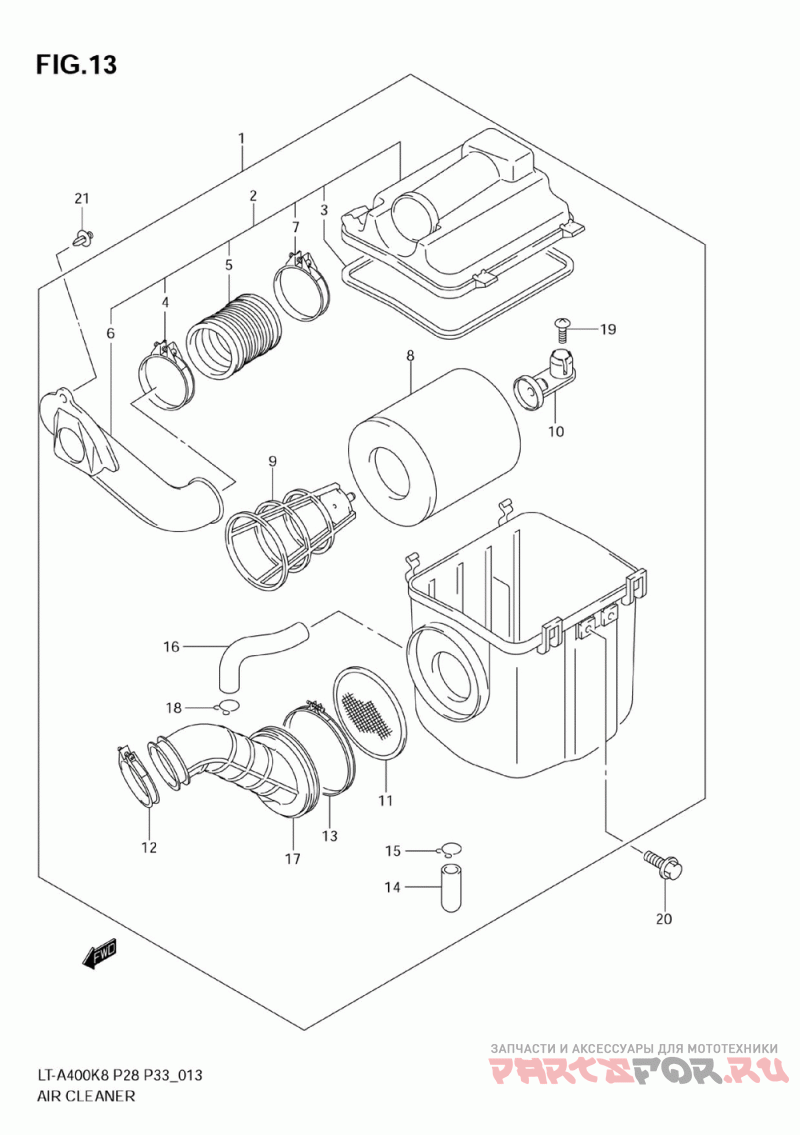

Воздухозаборник
Suzuki LT-A400 KingQuad 400AS
| # | oem код | название | цена |
|---|---|---|---|
1 | 13700-27H00 Air Cleaner Ass ( ) | Air Cleaner Ass ( ) | |
2 | 13890-27H00 Inlet, Air Clean ( ) | Inlet, Air Clean ( ) | |
3 | 13746-03G00 .gasket ( ) | .gasket ( ) | |
4 | 13826-38F20 .clamp ( ) | .clamp ( ) | |
5 | 13891-03G00 .joint, Inlet ( ) | .joint, Inlet ( ) | |
6 | 13896-27H00 Duct, Inlet;air ( ) | Duct, Inlet;air ( ) | |
7 | 09402-60208 Clamp, Silencer ( ) | Clamp, Silencer ( ) | |
8 | 13780-07G00 .filter ( ) | .filter ( ) | |
9 | 13791-03G00 .holder ( ) | .holder ( ) | |
10 | 13792-03G00 .stopper, Holder ( ) | .stopper, Holder ( ) | |
11 | 13810-03G00 .trap, Flame ( ) | .trap, Flame ( ) | |
12 | 13826-38F00 .clamp (carburetor Side) ( ) | .clamp (carburetor Side) ( ) | |
13 | 13826-38F10 .clamp (cleaner Side) ( ) | .clamp (cleaner Side) ( ) | |
14 | 13878-09F00 .plug, Drain ( ) | .plug, Drain ( ) | |
15 | 09401-14301 .clip ( ) | .clip ( ) | |
16 | 13853-38F10 .tube, Breather ( ) | .tube, Breather ( ) | |
17 | 13881-38F00 .tube, Outlet ( ) | .tube, Outlet ( ) | |
19 | 02142-0616A Screw ( ) | Screw ( ) | |
20 | 09103-06285 Bolt ( ) | Bolt ( ) | |
21 | 09409-07333 Clip, Tray ( ) | Clip, Tray ( ) | |
18 | 09401-14301 Breather Hose C ( ) | Breather Hose C ( ) |
