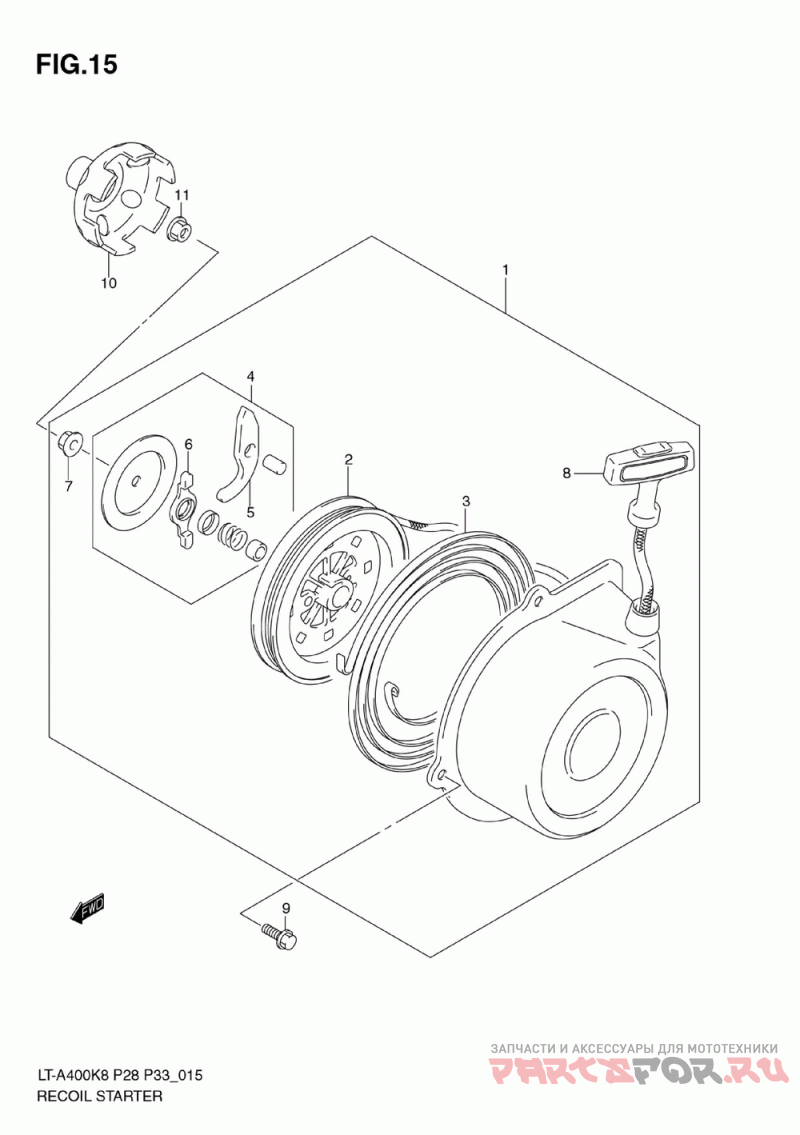

Ручной стартер
Suzuki LT-A400 KingQuad 400AS
| # | oem код | название | цена |
|---|---|---|---|
1 | 18100-24503 Starter Assy, Recoil ( ) | Starter Assy, Recoil ( ) | |
2 | 18120-24500 .reel ( ) | .reel ( ) | |
3 | 18142-24400 .spring, Spiral ( ) | .spring, Spiral ( ) | |
4 | 18130-24400 .ratchet Set ( ) | .ratchet Set ( ) | |
5 | 18131-24411 ..ratchet ( ) | ..ratchet ( ) | |
6 | 18132-24400 ..guide, Ratchet ( ) | ..guide, Ratchet ( ) | |
7 | 08316-1006B Nut ( ) | Nut ( ) | |
8 | 18200-24501 .rope Assy ( ) | .rope Assy ( ) | |
9 | 09103-06236 Screw, Push (6x12) ( ) | Screw, Push (6x12) ( ) | |
10 | 18410-09F02 Cup, Starter ( ) | Cup, Starter ( ) | |
11 | 08316-1010B Nut, Wheel Rim ( ) | Nut, Wheel Rim ( ) |
