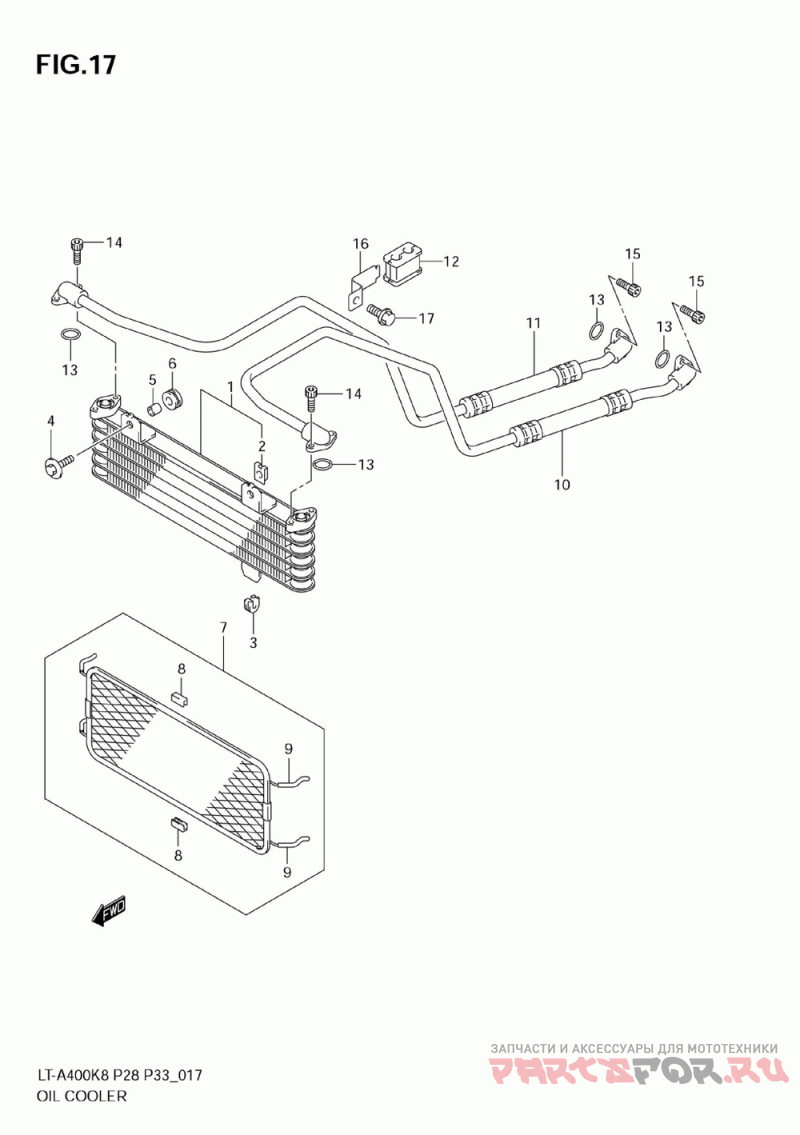

Масляный картер
Suzuki LT-A400 KingQuad 400AS
| # | oem код | название | цена |
|---|---|---|---|
1 | 16600-38F20 Деталь Cooler Assy, Oil ( ) | Деталь Cooler Assy, Oil ( ) | |
2 | 17802-14F00 Деталь Nut ( ) | Деталь Nut ( ) | |
3 | 16628-27A00 Деталь Cushion, Oil Cooler ( ) | Деталь Cushion, Oil Cooler ( ) | |
4 | 09116-06093 Деталь Bolt ( ) | Деталь Bolt ( ) | |
5 | 09180-06310 Деталь .spacer ( ) | Деталь .spacer ( ) | |
6 | 09320-10015 Деталь Cushion ( ) | Деталь Cushion ( ) | |
7 | 16650-27H00 Деталь Guard Comp, Oil ( ) | Деталь Guard Comp, Oil ( ) | |
8 | 16654-27H00 Деталь Protector, Ctr ( ) | Деталь Protector, Ctr ( ) | |
9 | 09352-30503-600 Деталь .hose (l:600->40 ) | Деталь .hose (l:600->40 ) | |
10 | 16460-38F10 Деталь Hose, Oil Cooler Inlet ( ) | Деталь Hose, Oil Cooler Inlet ( ) | |
11 | 16470-38F10 Деталь Hose, Oil Cooler Outlet ( ) | Деталь Hose, Oil Cooler Outlet ( ) | |
12 | 16468-38F00 Деталь Grommet, Oil Hose ( ) | Деталь Grommet, Oil Hose ( ) | |
13 | 09280-12008 Деталь O Ring (d:2.4, Id:12.3) ( ) | Деталь O Ring (d:2.4, Id:12.3) ( ) | |
14 | 07130-0616B Деталь Bolt ( ) | Деталь Bolt ( ) | |
15 | 09106-06073 Деталь Bolt, Oil Pipe (6x16) ( ) | Деталь Bolt, Oil Pipe (6x16) ( ) | |
16 | 16490-38F00 Деталь Clamp, Oil Hose ( ) | Деталь Clamp, Oil Hose ( ) | |
17 | 01550-0612B Деталь Bolt ( ) | Деталь Bolt ( ) |
