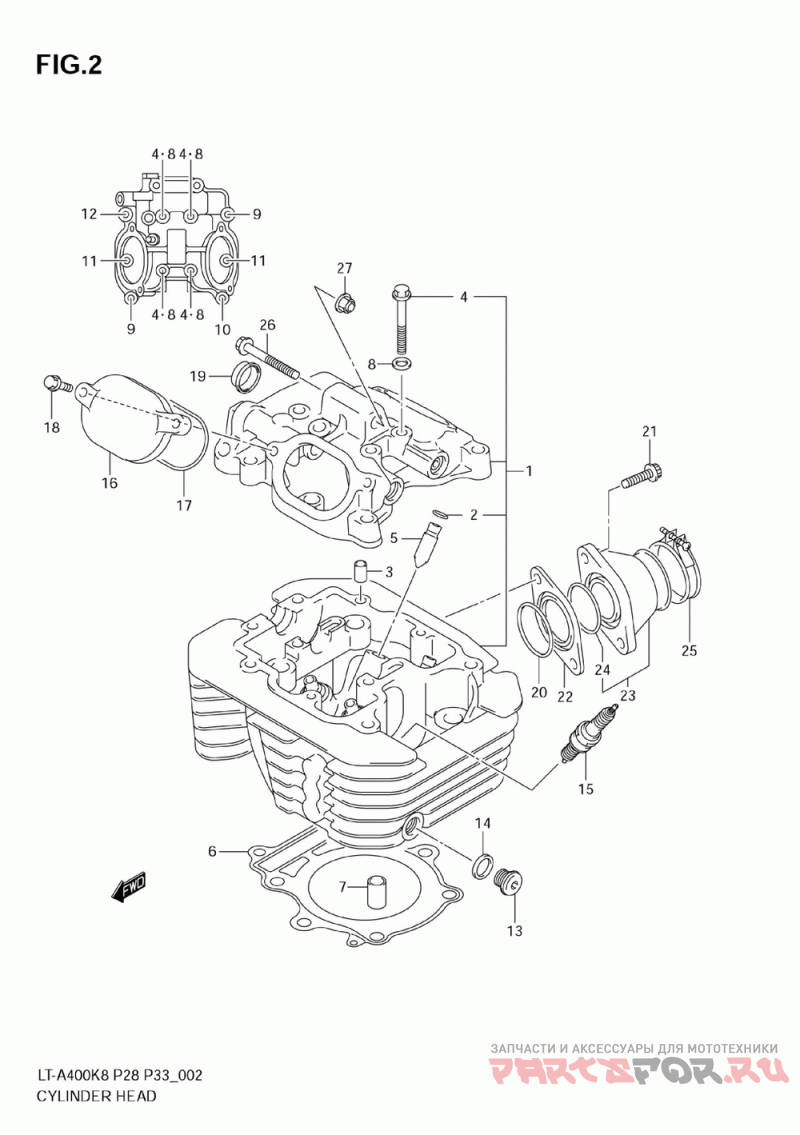

Головка цилиндра
Suzuki LT-A400 KingQuad 400AS
| # | oem код | название | цена |
|---|---|---|---|
1 | 11100-27H00 Head Assy, Cylin ( ) | Head Assy, Cylin ( ) | |
2 | 09381-10004 .snap Ring ( ) | .snap Ring ( ) | |
3 | 09206-08001 Pin ( ) | Pin ( ) | |
4 | 09103-06102 .bolt (6x55) ( ) | .bolt (6x55) ( ) | |
5 | 11115-14D71 Guide, Valve (os:0.3) (opt ) | Guide, Valve (os:0.3) (opt ) | |
6 | 11141-38F00 Gasket, Cylinder Head ( ) | Gasket, Cylinder Head ( ) | |
7 | 09206-13004 .pin ( ) | .pin ( ) | |
8 | 09168-06023 Washer, Oil Gallery Exhaust ( ) | Washer, Oil Gallery Exhaust ( ) | |
9 | 09103-06108 Bolt (6x35) ( ) | Bolt (6x35) ( ) | |
10 | 09103-06504 Bolt (6x39) ( ) | Bolt (6x39) ( ) | |
11 | 01550-0625B Bolt ( ) | Bolt ( ) | |
12 | 01550-0630B Bolt ( ) | Bolt ( ) | |
13 | 09248-12004 Plug ( ) | Plug ( ) | |
14 | 09168-12002 Gasket, Oil Level Plug ( ) | Gasket, Oil Level Plug ( ) | |
15-1 | 09482-00516 Spark Plug (ngk, Cr7e) ( ) | Spark Plug (ngk, Cr7e) ( ) | |
15-2 | 09482-00515 Spark Plug (nd, U22esr-n) ( ) | Spark Plug (nd, U22esr-n) ( ) | |
15-3 | 09482-00528 Spark Plug (ngk, Cr6e) (opt ) | Spark Plug (ngk, Cr6e) (opt ) | |
15-4 | 09482-00529 Spark Plug (denso, U20esr-n) (opt ) | Spark Plug (denso, U20esr-n) (opt ) | |
15-5 | 09482-00456 Spark Plug (ngk, Cr8e) (opt ) | Spark Plug (ngk, Cr8e) (opt ) | |
15-6 | 09482-00457 Spark Plug (nd, U24esr-n) (opt ) | Spark Plug (nd, U24esr-n) (opt ) | |
16 | 11175-47D00 Cap, Inspection ( ) | Cap, Inspection ( ) | |
17 | 11177-14D01 O Ring ( ) | O Ring ( ) | |
18 | 01550-0620B Bolt ( ) | Bolt ( ) | |
19 | 09241-25007 Plug, Head ( ) | Plug, Head ( ) | |
20 | 09280-40010 .o Ring, Intake Pipe ( ) | .o Ring, Intake Pipe ( ) | |
21 | 07120-0625B Bolt ( ) | Bolt ( ) | |
22 | 13117-38F00 Insulator, Intake Pipe ( ) | Insulator, Intake Pipe ( ) | |
23 | 13101-38F00 Pipe Assy, Intake ( ) | Pipe Assy, Intake ( ) | |
25 | 09402-48208 Clamp ( ) | Clamp ( ) | |
26 | 09103-08217 Bolt (8x60) ( ) | Bolt (8x60) ( ) | |
27 | 08319-3108A Nut ( ) | Nut ( ) | |
24 | 09280-40010 O Ring ( ) | O Ring ( ) |
