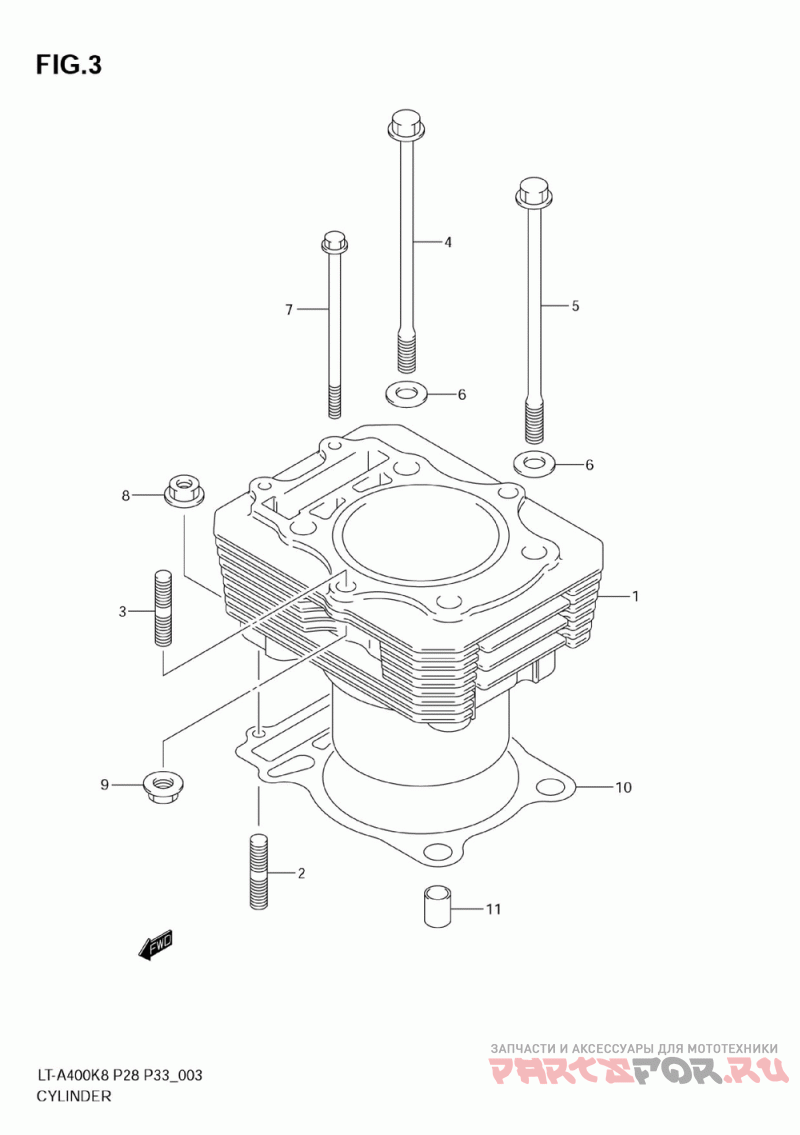

Цилиндр
Suzuki LT-A400 KingQuad 400AS
| # | oem код | название | цена |
|---|---|---|---|
1 | 11210-27H00-0F0 Cylinder Comp ( ) | Cylinder Comp ( ) | |
3 | 09108-08142 Stud Bolt (8x30) ( ) | Stud Bolt (8x30) ( ) | |
4 | 09103-10178 Bolt (10x180) ( ) | Bolt (10x180) ( ) | |
5 | 09103-10321 Bolt (l:170) ( ) | Bolt (l:170) ( ) | |
6 | 09160-10039 Washer (10.5x22x2.3) ( ) | Washer (10.5x22x2.3) ( ) | |
7 | 09103-06167 Bolt (6x115) ( ) | Bolt (6x115) ( ) | |
8 | 08316-1006B Nut ( ) | Nut ( ) | |
9 | 08316-1008B Nut ( ) | Nut ( ) | |
10 | 11241-38F00 Gasket, Cylinder ( ) | Gasket, Cylinder ( ) | |
11 | 04211-13189 Pin ( ) | Pin ( ) |
