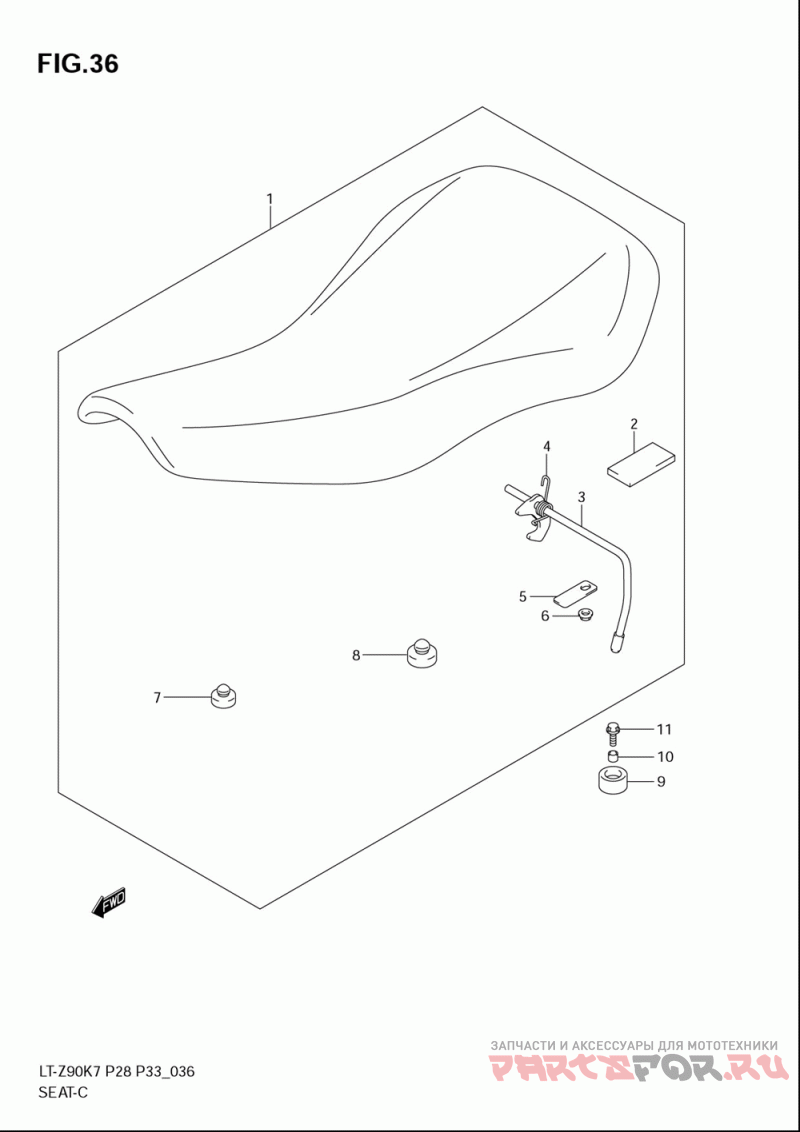

Сидение
Suzuki LT Z90 QuadSport Z90
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 45100-08H00-U4W Seat Assy (blue) (e33) | Seat Assy (blue) (e33) | |
2 | 45149-08H00 Cushion () | Cushion () | |
3 | 45210-08H00 .clamp, Seat Lock () | .clamp, Seat Lock () | |
4 | 45135-43F00 .spring, Seat Lock () | .spring, Seat Lock () | |
5 | 45222-43G00 .plate, Seat Lock Rh () | .plate, Seat Lock Rh () | |
6 | 08316-1006B Гайка | Гайка | |
7 | 09321-10012 .cushion () | .cushion () | |
8 | 45148-08H00 Cushion () | Cushion () | |
9 | 45141-08H00 Cushion, Seat Mo () | Cushion, Seat Mo () | |
10 | 09180-06261 Spacer () | Spacer () | |
11 | 01550-0616B Болт | Болт |
