Коленвал для квадроциклов Suzuki LT Z90 QuadSport Z90 (2008)

Москва и регионы России

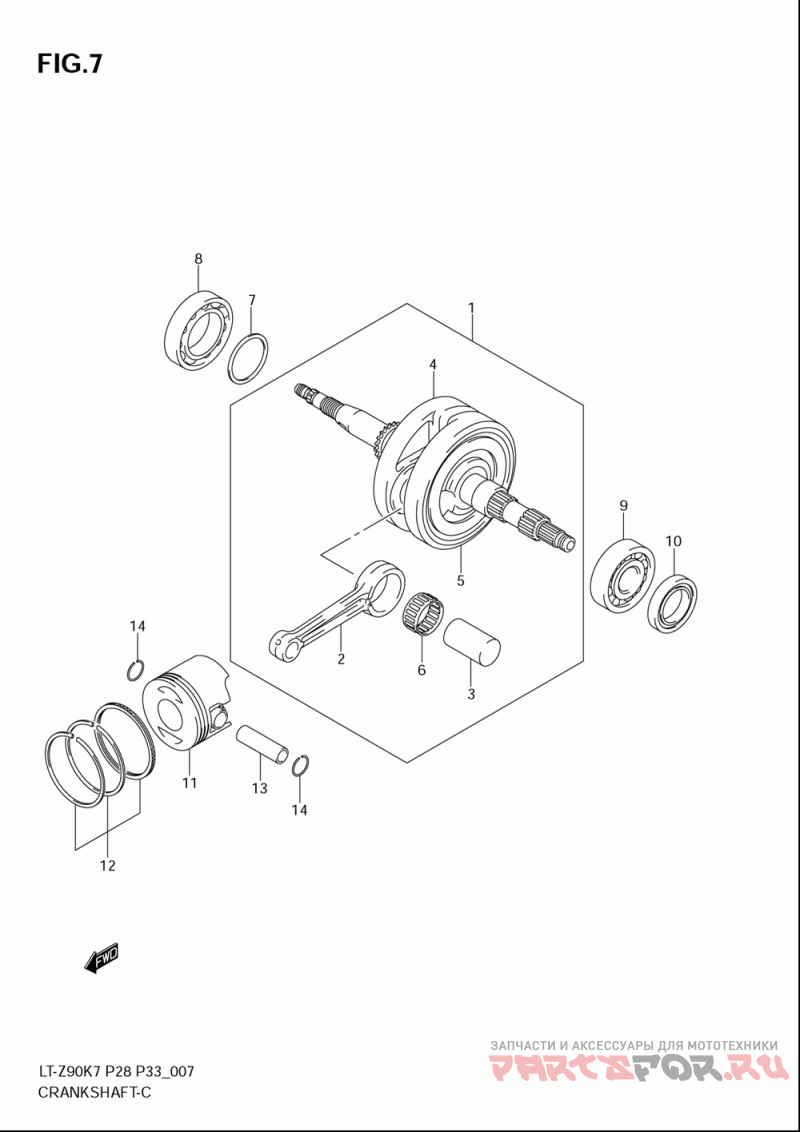

Коленвал

Suzuki LT Z90 QuadSport Z90

Коленвал

#

oem код

название

цена

1

Crankshaft Assy ()

Crankshaft Assy ()

2

12161-08H00-0C0

.connrod ()

.connrod ()

3

.pin, Crank ()

.pin, Crank ()

4

.crankshaft, Rh ()

.crankshaft, Rh ()

5

.crankshaft, Lh ()

.crankshaft, Lh ()

7-1

Shim, 35x42x0.5 ()

Shim, 35x42x0.5 ()

7-2

Shim (35x42x0.55) ()

Shim (35x42x0.55) ()

7-3

Shim (35x42x0.60) ()

Shim (35x42x0.60) ()

7-4

Shim (35x42x0.65) ()

Shim (35x42x0.65) ()

7-5

Shim (35x42x0.70) ()

Shim (35x42x0.70) ()

7-6

Shim (35x42x0.75) ()

Shim (35x42x0.75) ()

7-7

Shim (35x42x0.80) ()

Shim (35x42x0.80) ()

7-8

Shim (35x42x0.85) ()

Shim (35x42x0.85) ()

7-9

Shim (35x42x0.90) ()

Shim (35x42x0.90) ()

7-10

Shim (35x42x0.95) ()

Shim (35x42x0.95) ()

7-11

Shim (35x42x1.00) ()

Shim (35x42x1.00) ()

7-12

Shim (35x42x1.05) ()

Shim (35x42x1.05) ()

7-13

Shim (35x42x1.10) ()

Shim (35x42x1.10) ()

7-15

Shim (35x42x1.20) ()

Shim (35x42x1.20) ()

7-16

Shim (35x42x1.25) ()

Shim (35x42x1.25) ()

8

Bearing ()

Bearing ()

9

Bearing ()

Bearing ()

10

Oil Seal ()

Oil Seal ()

11

12111-08H00-0F0

Piston ()

Piston ()

12

Ring Set, Piston ()

Ring Set, Piston ()

13

Pin, Piston ()

Pin, Piston ()

14

Circlip ()

Circlip ()

6

09263-28029-0B0

.bearing, (28x34x16.8) ()

.bearing, (28x34x16.8) ()
