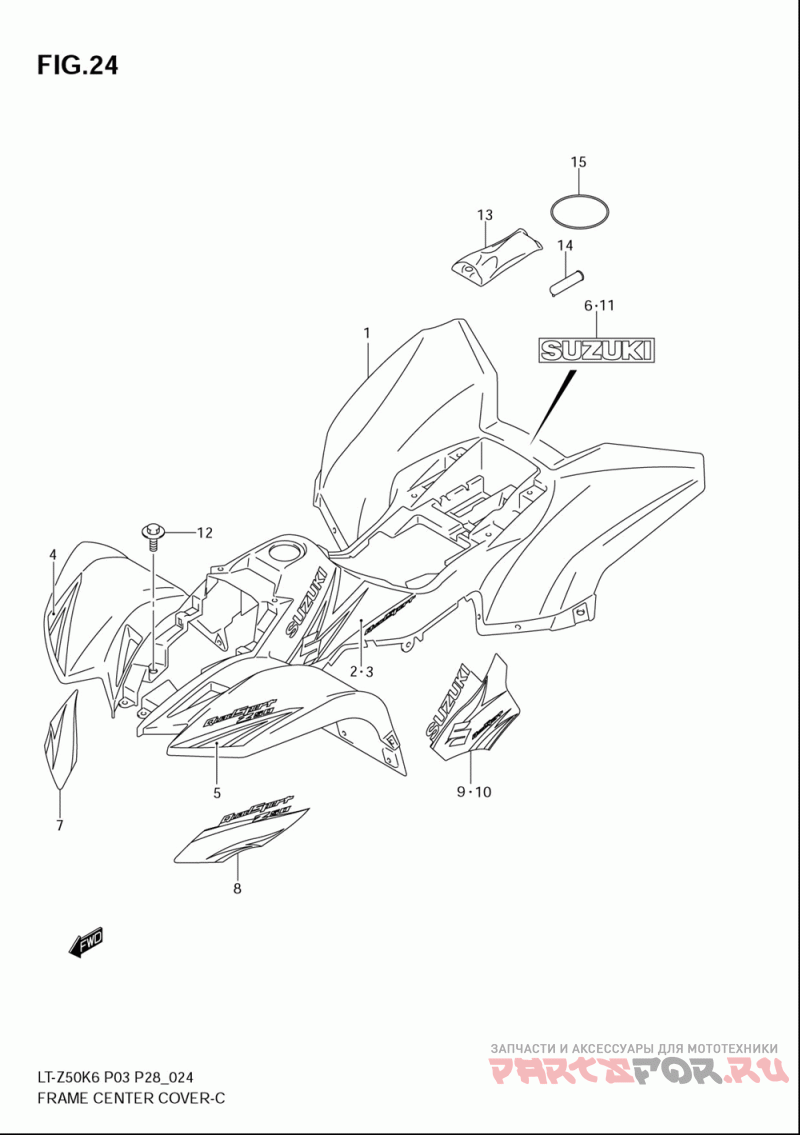

Frame center cover (model k6/k7) для квадроциклов Suzuki LT Z50 QuadSport Z50 (2008)

Frame center cover (model k6/k7)

Suzuki LT Z50 QuadSport Z50

oem код

название

цена

1-1

47311-43G00-YU1

Cover, Frame Center (yellow) ()

1-2

47311-43G00-30H

Cover, Frame Center (white) ()

2-1

68135-43G00-CET

Tape, Center Rh (model K6 For Yu1)

2-2

68135-43G00-CHJ

Tape, Center Rh (model K6 For 30h)

3-1

68145-43G00-CET

Tape, Center Lh (model K6 For Yu1)

3-2

68145-43G00-CHJ

Tape, Center Lh (model K6 For 30h)

4-1

68135-43G10-CET

Tape, Front Rh (model K6 For Yu1)

4-2

68135-43G10-CHJ

Tape, Front Rh (model K6 For 30h)

5-1

68145-43G10-CEZ

Tape, Front Lh (model K6 For Yu1)

5-2

68145-43G10-CHG

Tape, Front Lh (model K6 For 30h)

6-1

68131-43FA0-CFL

Emblem, "suzuki" (model K6 For Yu1)

6-2

68131-43FA0-CLM

Emblem, "suzuki" (model K6 For 30h)

7-1

68135-43G20-DSY

Tape, Front Rh (model K7 For Yu1)

7-2

68135-43G20-DSF

Tape, Front Rh (model K7 For 30h)

8-1

68145-43G20-DSW

Tape, Front Lh (model K7 For Yu1)

8-2

68145-43G20-DSB

Tape, Front Lh (model K7 For 30h)

9-1

68135-43G30-DSW

Tape, Center Rh (model K7 For Yu1)

9-2

68135-43G30-DSB

Tape, Center Rh (model K7 For 30h)

10-1

68145-43G30-DSW

Tape, Center Lh (model K7 For Yu1)

10-2

68145-43G30-DSB

Tape, Center Lh (model K7 For 30h)

11-1

68721-09A00-GY8

Emblem (model K7 For Yu1)

11-2

68721-09A00-8YM

Emblem (model K7 For 30h)

Bolt, Lower ()

Tool Assy ()

Gauge, Air ()

O Ring ()
