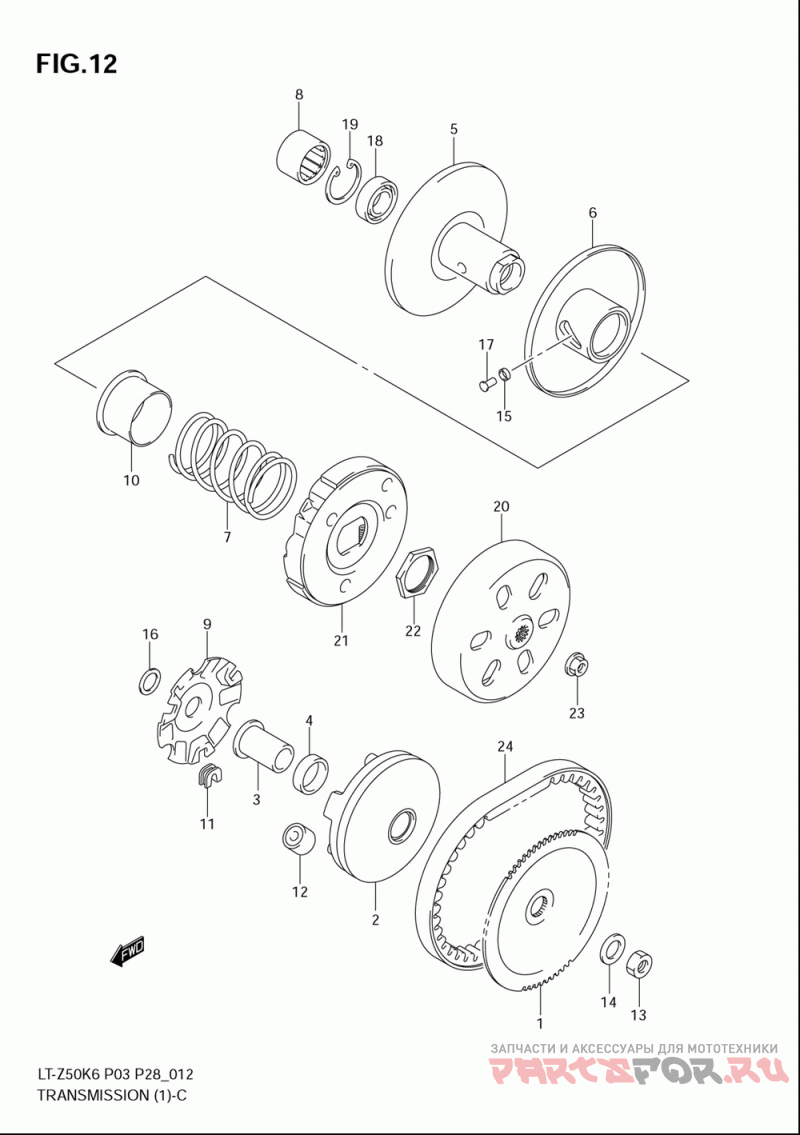

Трансмиссия 1 для квадроциклов Suzuki LT Z50 QuadSport Z50 (2008)

Трансмиссия 1

Suzuki LT Z50 QuadSport Z50

oem код

название

цена

21111-43E00

Face, Fixed Drive (nt:63) ()

21120-43EA0

Щека подвижная

21125-43G00

Spacer, Movable Drive ()

21128-43G00

Spacer, Movable Drive Stopper ()

21210-43E00

Face, Fixed Driven ()

21240-22G00

Face, Movable Driven ()

21243-22G00

Spring, Movable Driven ()

09263-17042

Bearing, Fixed Driven, R (17x25x16.7)

21431-43E00

Plate, Movable Drive ()

21471-03A11

Sheet, Movable Driven ()

21481-29C40

Damper, Movable Drive Plate ()

21650-43G00

Roller, Movable Drive ()

09140-12039

Nut, Fixed Drive Face ()

09164-12020

Washer, Fixed Drive Face ()

09180-05042

Spacer, Movable Driven Pin (5x8.2x3.5)

09181-14139

Washer, Gear Shaft (14x20x1)

09201-05006

Pin, Movable Driven ()

09262-12018

Bearing, Fixed Driven, L (12x24x6)

Circlip ()

Housing, Clutch ()

Сцепление

Nut, Shoe Clutch ()

Nut, Wheel Rim ()

Ремень

Гайка
