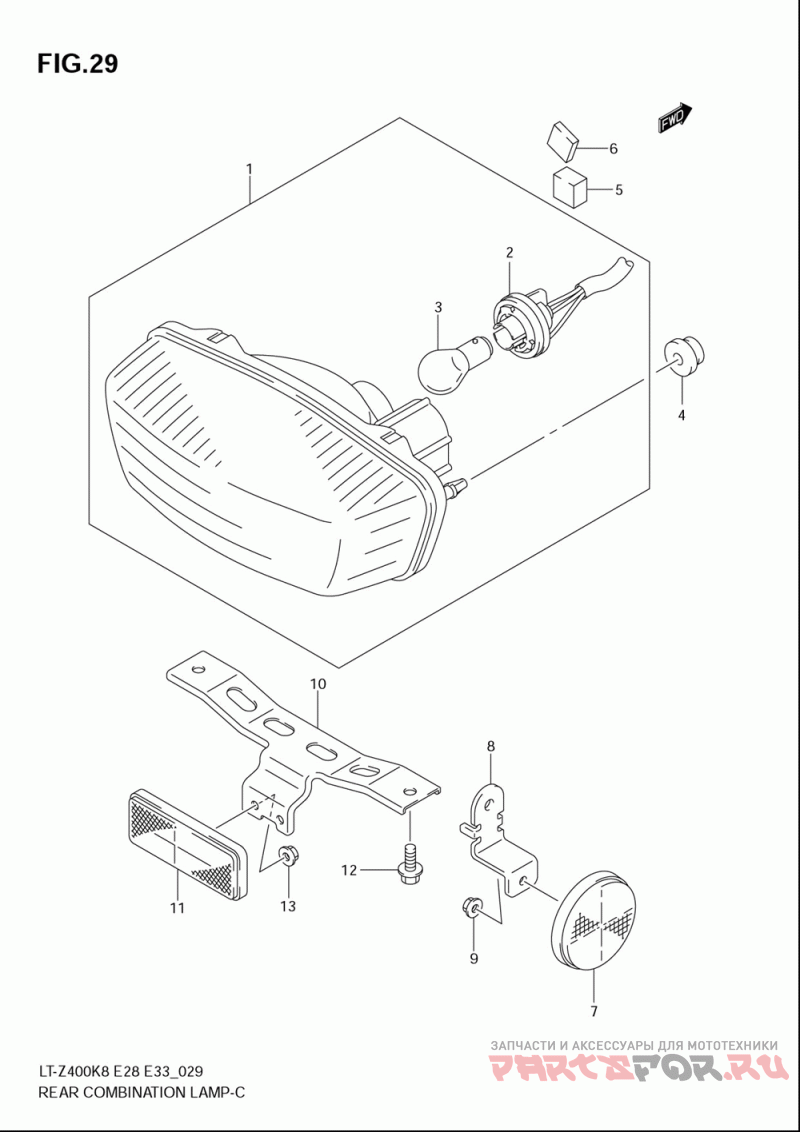

Rear combination (e28)
Suzuki LT Z400 QUADSPORT Z400
| # | oem код | название | цена |
|---|---|---|---|
1 | 35710-03G30 Lamp Assy, Rear Comb () | Lamp Assy, Rear Comb () | |
2 | 35718-03G30 .socket/cord Assy () | .socket/cord Assy () | |
3 | 09471-12128 Bulb (12v, 21/5w) () | Bulb (12v, 21/5w) () | |
4 | 09320-06023 Cushion () | Cushion () | |
5 | 33652-05G20 Cushion (12x17x17) () | Cushion (12x17x17) () | |
6 | 33652-07G10 Cushion (6x17x17) () | Cushion (6x17x17) () | |
7 | 35970-14A10 ..reflex Reflector () | ..reflex Reflector () | |
9 | 08316-1005B Гайка | Гайка | |
11 | 35970-07F01 Reflector Assy, () | Reflector Assy, () | |
12 | 01550-0616B Болт | Болт | |
13 | 08316-1005B Гайка | Гайка |
