Маятник задний для квадроциклов Suzuki LT Z400 QUADSPORT Z400 (2008)

Москва и регионы России

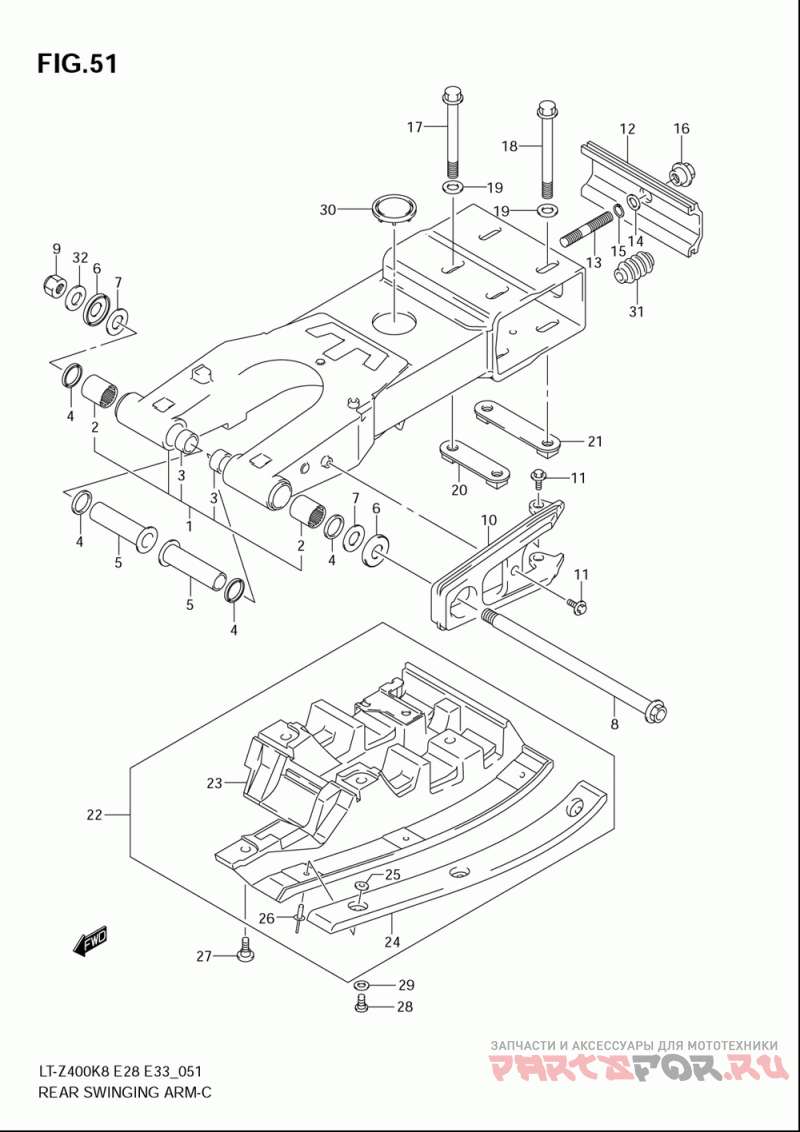

Маятник задний

Suzuki LT Z400 QUADSPORT Z400

Маятник задний

#

oem код

название

цена

1

Swinging Arm Set, Rear ()

Swinging Arm Set, Rear ()

2

.bearing, Pivot (22x29x30) ()

.bearing, Pivot (22x29x30) ()

3

.bush, Rr Swinging Arm Pivot ()

.bush, Rr Swinging Arm Pivot ()

4

.seal, Inner (22x29x4) ()

.seal, Inner (22x29x4) ()

5

Spacer ()

Spacer ()

6

Cover, Pivot ()

Cover, Pivot ()

7

Thrust Washer ()

Thrust Washer ()

8

Shaft, Pivot ()

Shaft, Pivot ()

9

Гайка

Гайка

10

Buffer, Chain Touch Defense ()

Buffer, Chain Touch Defense ()

11

Bolt (6x20) ()

Bolt (6x20) ()

12

Plate, Chain Adjuster ()

Plate, Chain Adjuster ()

13

Bolt, Chain Adjuster ()

Bolt, Chain Adjuster ()

14

Washer, Chain Adjuster Nut ()

Washer, Chain Adjuster Nut ()

15

Circlip, Kick Start Drive Gea ()

Circlip, Kick Start Drive Gea ()

16

Nut, Chain Adjuster ()

Nut, Chain Adjuster ()

17

Bolt, Fr ()

Bolt, Fr ()

18

Bolt, Rr ()

Bolt, Rr ()

19

Шайба

Шайба

20

Washer, Axle Housing Set Fr ()

Washer, Axle Housing Set Fr ()

21

Washer, Axle Housing Set Rr ()

Washer, Axle Housing Set Rr ()

22

Guard Set, Swinging Arm Under ()

Guard Set, Swinging Arm Under ()

23

.guard, Swinging Arm Under ()

.guard, Swinging Arm Under ()

24

.buffer, Swgarm Guard ()

.buffer, Swgarm Guard ()

25

.washer, Buffer ()

.washer, Buffer ()

26

.rivet, Buffer ()

.rivet, Buffer ()

27

Болт

Болт

28

Bolt, Guard Center ()

Bolt, Guard Center ()

29

Washer ()

Washer ()

30

Cap, Pivot Lh ()

Cap, Pivot Lh ()

31

Boot, Chain Adjuster Bolt ()

Boot, Chain Adjuster Bolt ()

32

09160-16031-A05

Washer, Rear Swgarm Pivot ()

Washer, Rear Swgarm Pivot ()

32

Washer ()

Washer ()
