Front fender (model k4) для квадроциклов Suzuki LT Z250 QUADSPORT Z250 (2008)

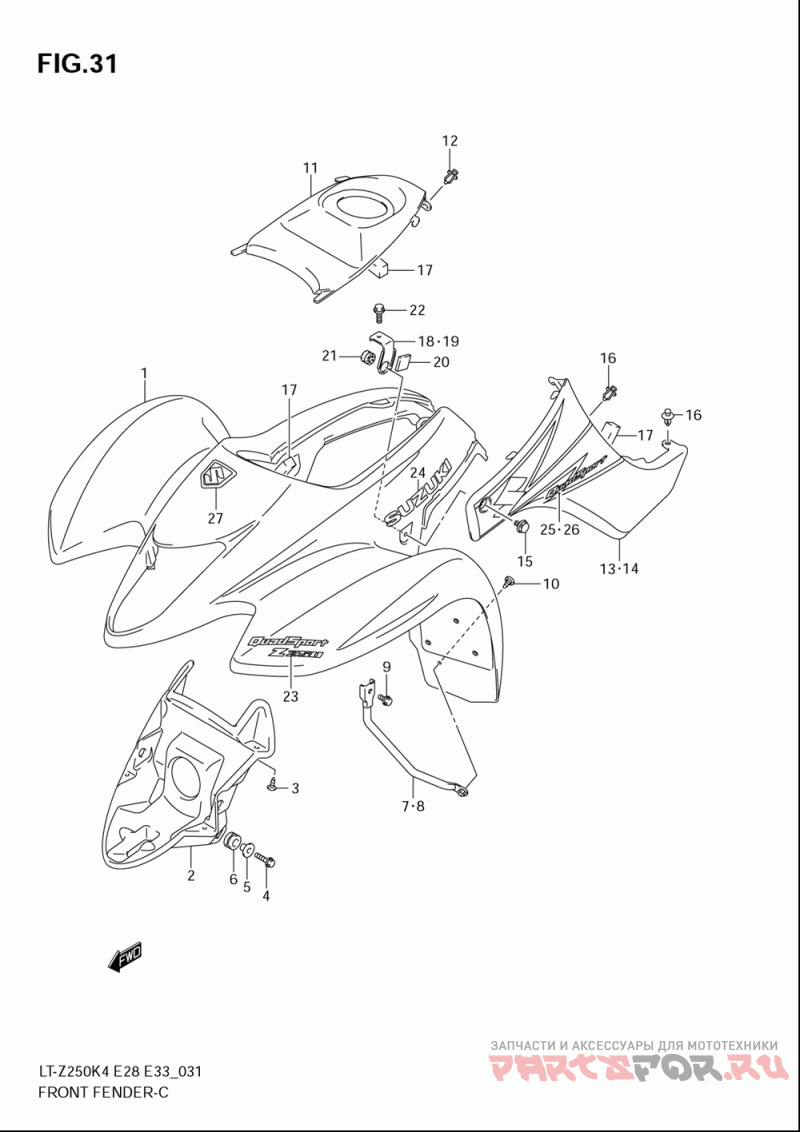

Front fender (model k4)

Suzuki LT Z250 QUADSPORT Z250

oem код

название

цена

1-1

53111-21G01-YU1

Fender, Front (yellow) ()

1-2

53111-21G01-30H

Fender, Front (white) ()

Fender, Inner ()

Винт

Болт

Spacer ()

Cushion ()

Bracket, Rh ()

Bracket, Lh ()

Болт

Винт

11-1

53119-21G01-YU1

Fender, Center (yellow) ()

11-2

53119-21G01-30H

Fender, Center (white) ()

09409-07333

Clip, Tray ()

13-1

53112-21G01-YU1

Cover, Side Rh (yellow) ()

13-2

53112-21G01-30H

Cover, Side Rh (white) ()

14-1

53122-21G01-YU1

Cover, Side Lh (yellow) ()

14-2

53122-21G01-30H

Cover, Side Lh (white) ()

Clip ()

Cushion, No.1 ()

Bracket, Rh ()

Bracket, Lh ()

Cushion ()

Cushion, No.2 ()

23-1

68151-21G00-KD1

Emblem, "quadsport" (for Yu1)

23-2

68151-21G00-JV6

Emblem, "quadsport" (for 30h)

24-1

68661-29F00-GY8

Emblem, "suzuki" (for Yu1)

24-2

68661-29F00-8YM

Emblem, "suzuki" (for 30h)

25-1

68155-21G00-KD2

Tape, Rh (for Yu1)

25-2

68155-21G10-YDS

Tape, Rh (for 30h)

26-1

68156-21G00-KD2

Tape, Lh (for Yu1)

26-2

Tape, Lh (for 30h)

Emblem, "s" ()

Clip ()

Болт
