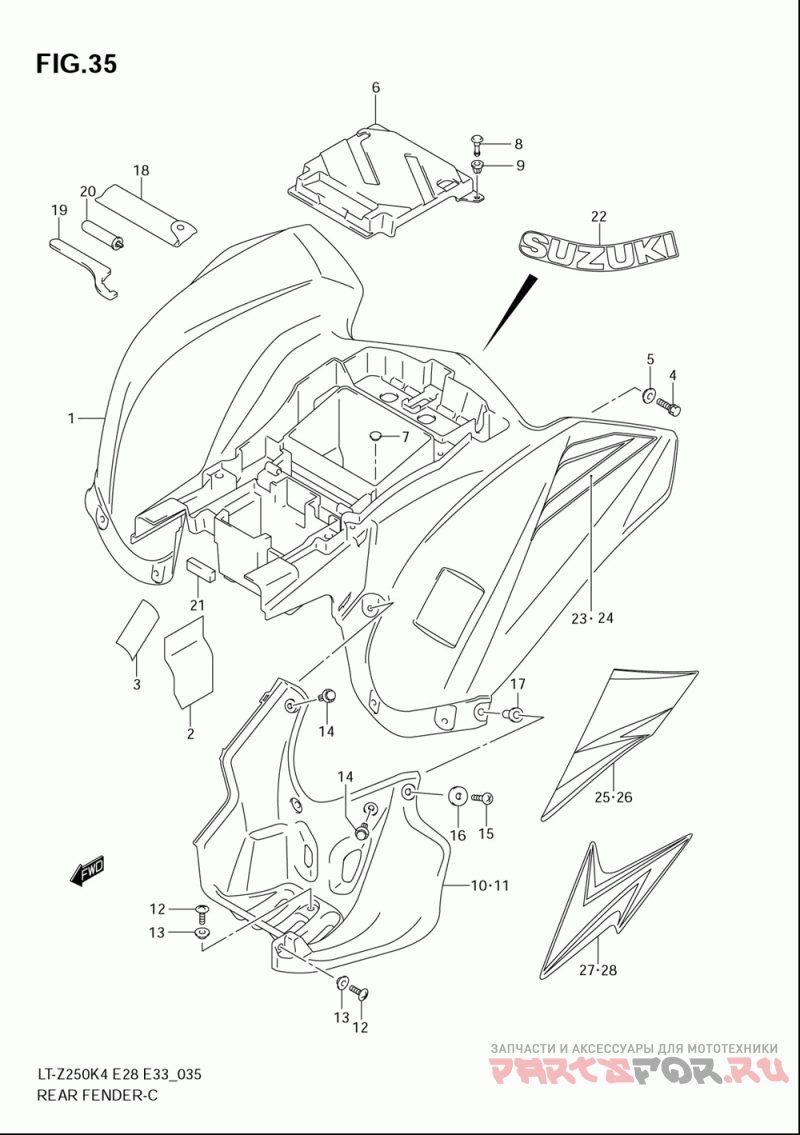

Заднее крыло

Suzuki LT Z250 QUADSPORT Z250

Suzuki
#oem кодцена
1-1
63111-21G01-YU1
Fender, Rear (yellow) ()
1-2
63111-21G01-30H
Fender, Rear (white) ()
2
63261-21G00
Shield, Rear Fender Side ()
3
63262-21G00
Shield, Rear Fender Front ()
5
09169-06055
Шайба
6-1
63121-05G10
Cover, Rear Fender (model K4/k5)
7
09250-08007
Cap ()
8
09409-08329
Grommet ()
9
09409-08330
Plunger ()
10
63331-21G00-291
Mud Guard, Footrest Rh (black ()
11
63341-21G00-291
Mud Guard, Footrest Lh (black ()
12
01547-0616B
Болт
13
09169-06071
Шайба
14
09409-08335
Clip ()
15
02142-0520B
Винт
16
09160-05046
Шайба
17
09159-05019
.nut, Air Intk Inner Guide ()
18
09800-21044
Tool Assy ()
19
09822-00004
Clamp, Wrench ()
20
96200-18A02
Gauge, Air ()
21
33652-31F00
Cushion, Tool Holder ()
22-1
68721-29F00-GY8
Emblem (model K3/k4 For Yu1)
22-2
68721-29F00-8YM
Emblem, Suzuki (for 30h)
22-3
68721-29F00-CFL
Emblem (model K6 For Yu1)
23-1
68175-21G00-CHG
Tape, Rh (model K6 For 30h)
23-2
68175-21G00-CEZ
Tape, Rh (model K6 For Yu1)
24-1
68176-21G00-CHG
Tape, Lh (model K6 For 30h)
24-2
68176-21G00-CEZ
Tape, Lh (model K6 For Yu1)
25-1
68175-21G10-DSF
Tape, Rh (model K7 For 30h)
25-2
68175-21G10-DSY
Tape, Rh (model K7 For Yu1)
26-1
68176-21G10-DSF
Tape, Rear Fende (model K7 For 30h)
26-2
68176-21G10-DSY
Tape, Lh (model K7 For Yu1)
27-1
68175-21G20-ENC
Tape, Rear Fende (model K8 For 30h)
27-2
68175-21G20-END
Tape, Rear Fende (model K8 For Yu1)
28-1
68176-21G20-ENC
Tape, Rear Fende (model K8 For 30h)
28-2
68176-21G20-END
Tape, Rear Fende (model K8 For Yu1)
6-2
63121-05G10
Cover, Rr Fender (model K6/k7/k8)
22-4
68721-29F00-GY8
Emblem, Suzuki (model K7/k8 For Yu1)
