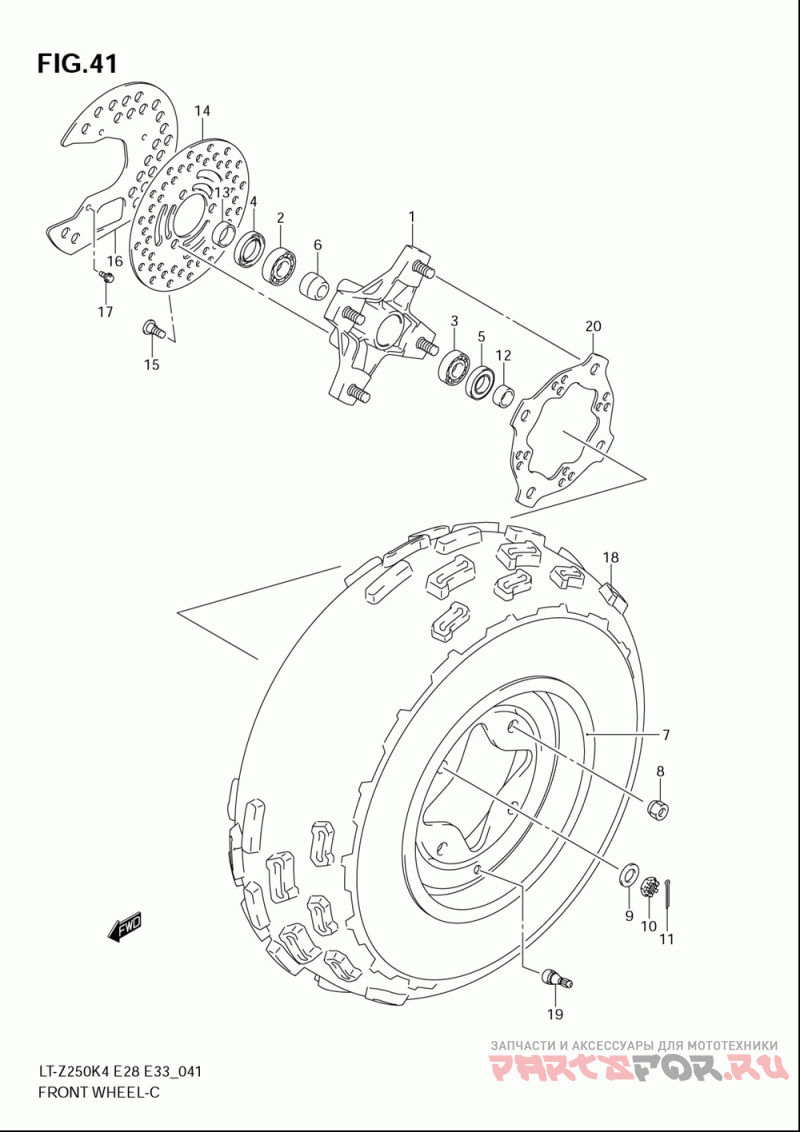

Переднее колесо для квадроциклов Suzuki LT Z250 QUADSPORT Z250 (2008)

Москва и регионы России

Переднее колесо

Suzuki LT Z250 QUADSPORT Z250

Переднее колесо

#

oem код

название

цена

1-1

54110-07G00-019

Hub, Front Wheel (black) (model K4)

Hub, Front Wheel (black) (model K4)

2

Bearing, Front Hub Inner ()

Bearing, Front Hub Inner ()

3

Bearing, Outer (15x35x11) ()

Bearing, Outer (15x35x11) ()

4

Dust Seal Inner ()

Dust Seal Inner ()

5

Dust Seal Outer ()

Dust Seal Outer ()

6

Spacer, Fr Hub B ()

Spacer, Fr Hub B ()

7-1

Rim, Front Wheel (10x5.5at) (model K4/k5)

Rim, Front Wheel (10x5.5at) (model K4/k5)

7-2

Rim, Front Wheel (10x5.5at) (model K6/k7/k8)

Rim, Front Wheel (10x5.5at) (model K6/k7/k8)

8-1

Nut (model K4/k5)

Nut (model K4/k5)

8-2

Nut (model K6/k7/k8)

Nut (model K6/k7/k8)

9

Washer ()

Washer ()

10

Гайка

Гайка

11

Pin, Cotter ()

Pin, Cotter ()

12

Spacer, Front Axle ()

Spacer, Front Axle ()

13

Spacer, Fr Axle No.2 ()

Spacer, Fr Axle No.2 ()

14

Disc, Front Brake ()

Disc, Front Brake ()

15

Bolt, Disc ()

Bolt, Disc ()

16-1

Cover, Front Disc (model K4)

Cover, Front Disc (model K4)

16-2

Cover, Front Disc (model K5/k6/k7/k8)

Cover, Front Disc (model K5/k6/k7/k8)

17-1

Bolt (model K4/k5/k6)

Bolt (model K4/k5/k6)

18-1

Tire, Front (model K4/k5/k6)

Tire, Front (model K4/k5/k6)

19

Нипель

Нипель

20-1

Plate, Front Hub (model K4/k5/k6/k7)

Plate, Front Hub (model K4/k5/k6/k7)

20-2

Plate, Front Hub (model K8)

Plate, Front Hub (model K8)

6

Spacer, Fr Hub B ()

Spacer, Fr Hub B ()

1-2

54110-07G00-019

Hub, Front Wheel (model K5/k6/k7/k8)

Hub, Front Wheel (model K5/k6/k7/k8)

17-2

Bolt (6 X 12) (model K7/k8)

Bolt (6 X 12) (model K7/k8)

18-2

Tire, Front (model K7/k8)

Tire, Front (model K7/k8)
