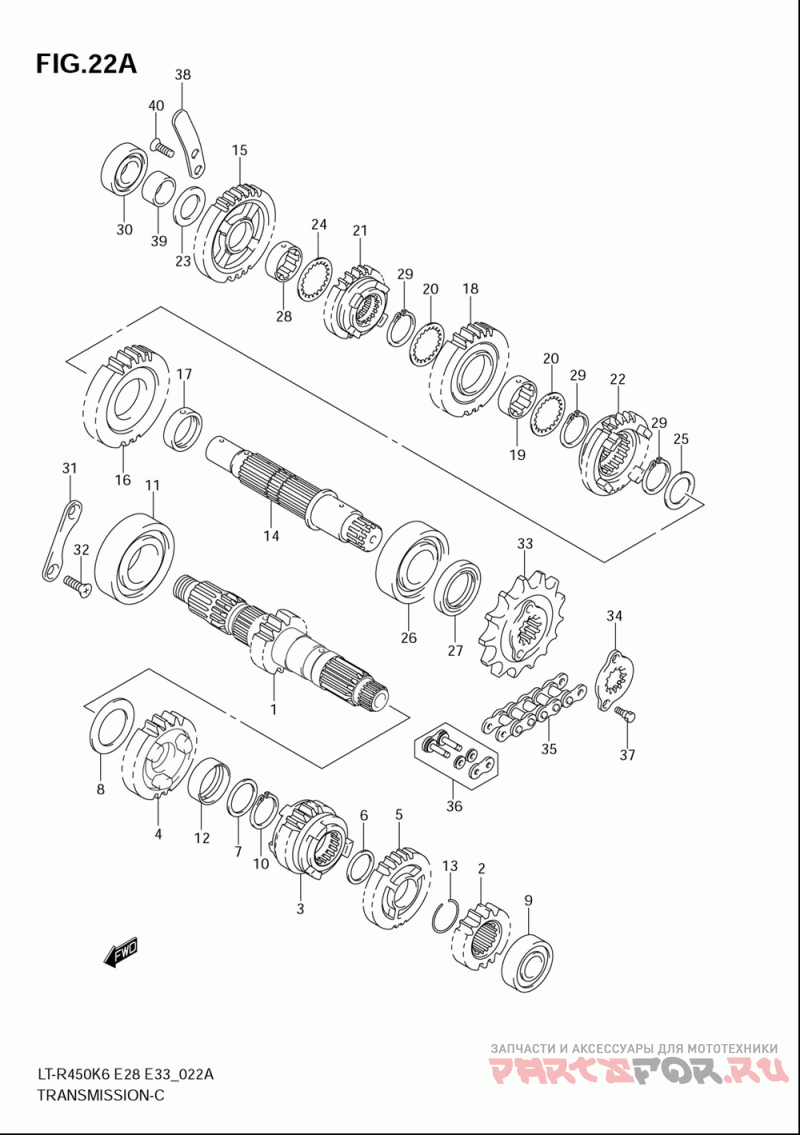

Transmission (model k8)

Suzuki LT R450 QuadRacer R450

Suzuki
#oem кодцена
1
24120-45G10
Shaft, Counter ()
2
24221-45G10
Gear, 2nd Drive ()
5
24250-45G10
Gear Comp, 5th D ()
6
09181-22139
Washer (22x28x1.0) ()
7
09181-25139
Washer, 1st Driven Gear, L ()
8
09181-25223
Washer, Clutch Sleeve Nut (25x38x1.0)
9
09262-17027
Bearing, Cntr Shaft Lh (17x40x12)
10
09380-25003
Circlip ()
11
09262-25124
Bearing, Cntr Shaft Rh (25x52x14)
12
24252-19F00
Bush, 5th Drive ()
13
09381-24001
Circlip, 2nd Drive ()
14
24130-45G01
Shaft, Drive ()
15
24311-45G10
Gear, 1st Driven ()
16
24321-45G10
Gear, 2nd Driven ()
17
24322-35F00
Bush, 2nd Driven ()
18
24331-45810
Gear Set, 3rd D ()
19
24332-17E20
Bush, 4th Driven ()
20
24333-02F00
Washer, 3rd Driven Gear ()
21
24341-45G10
Gear, 4th Driven ()
22
24351-45G10
Gear, 5th Driven ()
23
09181-20251
Shim (t:1.0) (20x34x1.0)
24
09181-22223
Washer, 1st Driven Lh (22x34x1.0)
25
09160-27008
Washer, 2nd Driven Gear (27x36x1.0)
26
09262-25125
Bearing, Drive Shaft Lh (25x62x17)
27
09283-25106
Seal, Oil 25x38x (25x38x6)
28
09300-22008
Bush (22x27x0.5) ()
29
09380-27006
Circlip, 5th & 6th Drive ()
30
09262-20106
.bearing (20x42x12)
31
24741-05G00
Retainer, Counter Shaft Rh ()
32
09126-06011
Винт (м6x12)
33
27511-07G00
Sprocket, Engine (nt:14) ()
34
27512-07G00
Plate, Sprocket ()
35
27600-43B20-096
Chain Assy (rk520sm0z10s, 96l) ()
36
27620-43B20
Joint Set (opt)
37
09111-06039
Болт
38
26264-45G00
Retainer, Kick Idle ()
39
09180-20059
Spacer (20x16x14) ()
40
02122-0616A
Винт
3
24231-45G10
Gear, 3rd Drive ()
4
24241-45G10
Gear, 4th Drive ()
