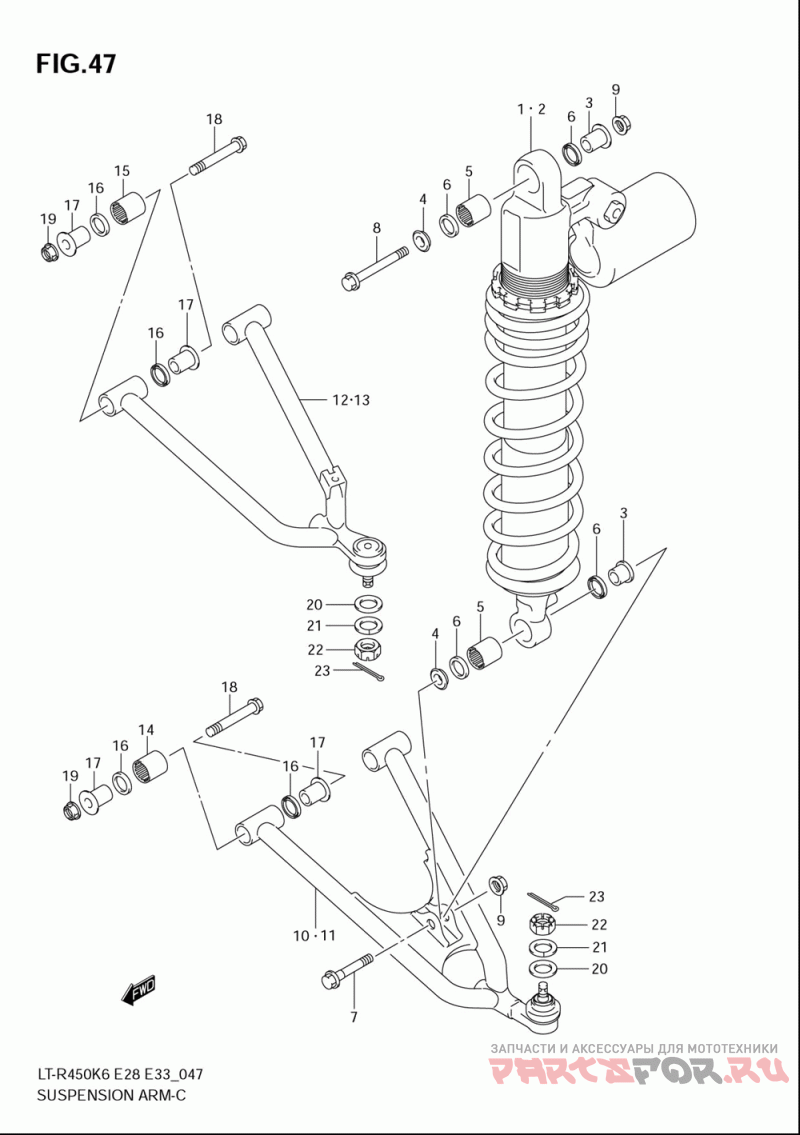

Suspension arm

Suzuki LT R450 QuadRacer R450

Suzuki
#oem кодцена
1-1
52103-45G00-YKS
Absorber Assy, Front Shock, R (model K6/k7e33 For Yu1)
1-2
52103-45G00-28W
Absorber Assy, Front Shock, R (model K6/k7e33 For 30h)
1-5
52103-45G20-YKS
Absorber Assy, F (model K8 E33for Yu1)
1-6
52103-45G20-28W
Absorber Assy, F (model K8 E33for 30h, 019)
2-1
52104-45G00-YKS
Absorber Assy, Front Shock, L (model K6/k7e33 For Yu1)
2-2
52104-45G00-28W
Absorber Assy, Front Shock, L (model K6/k7e33 For 30h)
2-5
52104-45G20-YKS
Absorber Assy, F (model K8for Yu1)
2-6
52104-45G20-28W
Absorber Assy, F (model K8 E33for 30h, 019)
3
62684-36F00
.spacer, Bearing Rh ()
4
62685-36F00
.spacer, Bearing Lh ()
5
09263-16033
.bearing (16x22x12) ()
6
09284-16005
Seal, Rear (16x22x2.5) ()
7
09103-10116
Bolt, Eng Mtg, Lh (10x43) ()
8
09103-10352
Bolt, Lower (10x48) ()
9
09159-10115
Гайка
10-1
52410-45G10-YBA
Arm Assy, Suspen (model K6/k7)
10-3
52410-45G10-019
Arm Assy, Suspen (lt-r450zk8)
11-1
52420-45G10-YBA
Arm Assy, Suspen (model K6/k7)
11-3
52420-45G10-019
Arm Assy, Suspen (lt-r450zk8)
12-1
52430-45G10-YBA
Arm, Suspension (model K6/k7)
12-3
52430-45G10-019
Arm, Suspension (lt-r450zk8)
13-1
52440-45G10-YBA
Arm, Suspension (model K6/k7)
13-3
52440-45G10-019
Arm, Suspension (lt-r450zk8)
14
09263-17046
Bearing, Suspension Arm Pivot ()
16
52454-45G00
Seal, Rod Inner ()
17
52455-45G00
Spacer, Suspensi ()
18
09103-10033
Bolt, Upper (10x70) ()
20
08322-0110A
Washer, Knuckle End ()
21
09162-10008
Шайба
22
08314-4010A
Nut, Knuckle End ()
23
04111-2020A
Cotter Pin ()
19
09159-10115
Гайка
10-2
52410-45G10-YBA
Arm Assy, Suspen (lt-r450k8)
11-2
52420-45G10-YBA
Arm Assy, Suspen (lt-r450k8)
12-2
52430-45G10-YBA
Arm, Suspension (lt-r450k8)
13-2
52440-45G10-YBA
Arm, Suspension (lt-r450k8)
