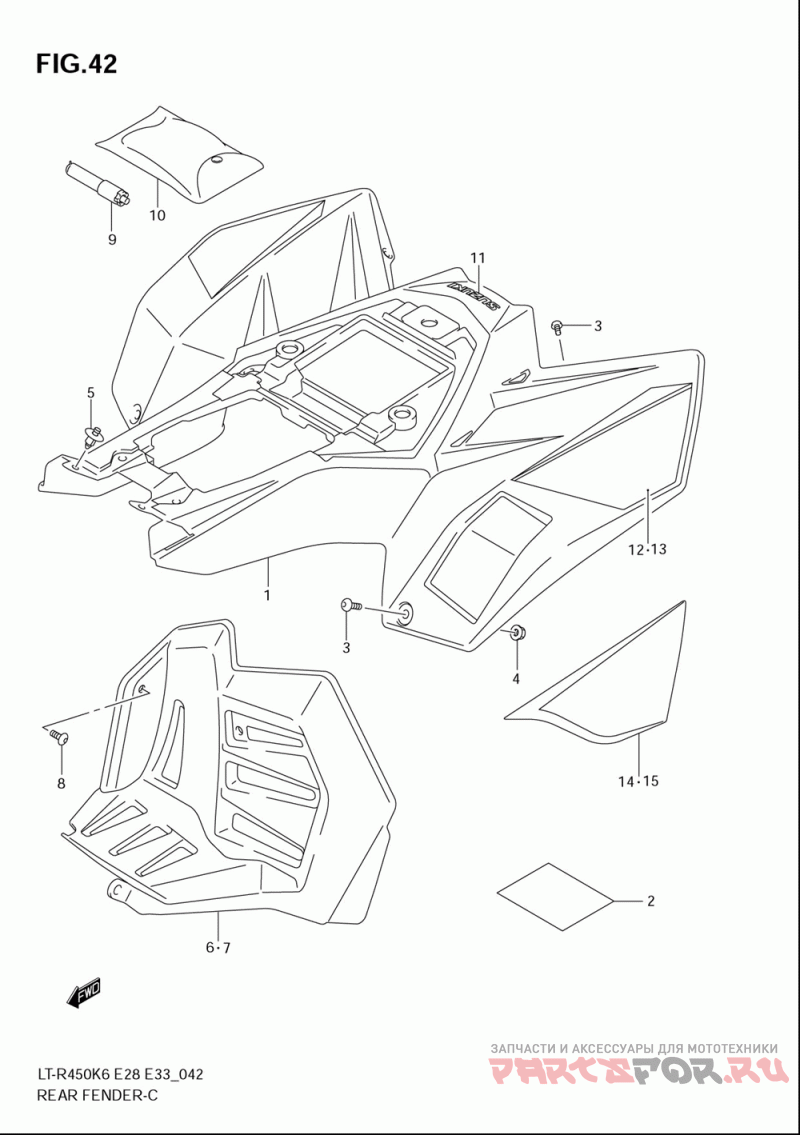

Rear fender (model k6/k7) для квадроциклов Suzuki LT R450 QuadRacer R450 (2008)

Rear fender (model k6/k7)

Suzuki LT R450 QuadRacer R450

oem код

название

цена

1-1

63111-45G01-YU1

Крыло заднее

1-2

Крыло заднее

Cushion ()

Винт

.nut, Axle Holder ()

Clip, Tray ()

Mudguard, Rh (black) ()

63341-45G00-291

Mudguard, Lh (black) ()

96200-05G10

Gauge, Air ()

09800-21055

Tool Assy ()

11-1

68171-44B00-CFL

Emblem (model K6 For Yu1)

11-2

68171-44B00-GY8

Emblem (model K7 For Yu1)

11-3

68171-44B00-8YM

Emblem (for 30h)

12-1

68175-45G00-CFK

Tape, Rh (model K6 For Yu1)

12-2

68175-45G00-DCS

Tape, Rh (model K6 For 30h)

13-1

68176-45G00-CFK

Tape, Lh (model K6 For Yu1)

13-2

68176-45G00-DCS

Tape, Lh (model K6 For 30h)

14-1

68175-45G10-DSE

Tape, Rh (model K7 For Yu1)

14-2

68175-45G10-DSF

Tape, Rh (model K7 For 30h)

15-1

68176-45G10-DSE

Tape, Lh (model K7 For Yu1)

15-2

68176-45G10-DSF

Tape, Lh (model K7 For 30h)

09139-06158

Screw, Front Dis ()

1-1

63111-45G02-YU1

Fender, Rear ()

1-2

63111-45G02-30H

Крыло заднее (красное)
