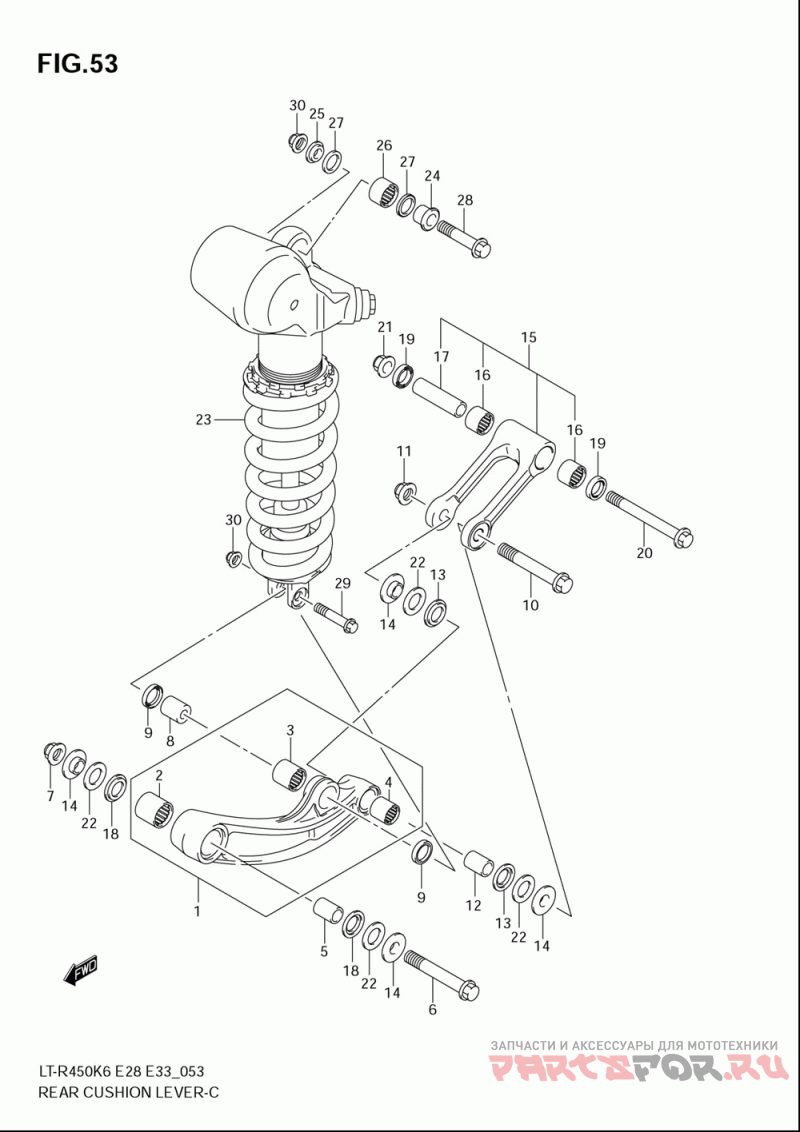

Rear cushion lever (model k6/k7) для квадроциклов Suzuki LT R450 QuadRacer R450 (2008)

Rear cushion lever (model k6/k7)

Suzuki LT R450 QuadRacer R450

oem код

название

цена

62600-45810

Lever Set, Cushion ()

09263-17033

Bearing, Suspension Arm Pivot ()

09263-20083

.bearing, Rear (20x26x12) ()

Spacer, Rear ()

Болт

Гайка

Spacer, Rear ()

Dust Seal, Rear ()

10-2

62658-45G00

Bolt, Rear (model K7)

62624-13E00

Seal, Rear Dust ()

62647-45G00

Spacer, Cushion Lever Side ()

62600-45820

Rod Set, Rear Cushion ()

09263-17032

.bearing, Rod (20x24x15) ()

.spacer, Rod ()

Seal, Rod Inner ()

Bolt, Rod ()

Washer, Rr Cushion, Lever ()

23-1

62100-45G00-YKS

Absorber Assy, Rear Shock (e33 For Yu1)

23-2

62100-45G00-28W

Absorber Assy, Rear Shock (e33 For 30h)

62684-36F00

.spacer, Bearing Rh ()

62685-36F00

.spacer, Bearing Lh ()

09263-16033

.bearing (16x22x12) ()

09284-16005

Seal, Rear (16x22x2.5) ()

Bolt, Upper ()

Bolt (10x47.5) ()

Гайка

Bolt, Cushion Lever ()

Rn 17x24x25 Brg ()

Nut, Rearcushion ()

Nut, Rearcushion ()

Spacer, Rr Cushi ()

Seal, Rr Cushion ()

Nut, Rearcushion ()

Bolt Shock Abso ()

10-1

62668-27A00

Bolt, Rear Cushi (model K6)
