Front fender (model k6) для квадроциклов Suzuki LT R450 QuadRacer R450 (2008)

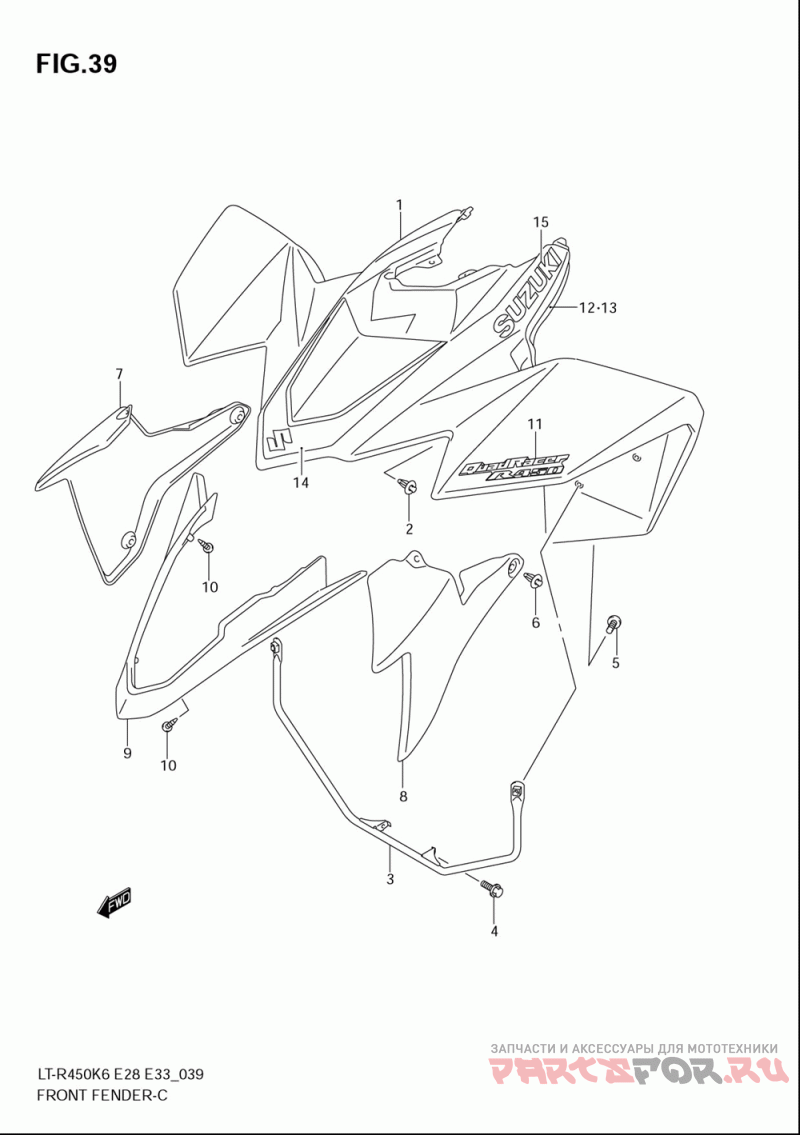

Front fender (model k6)

Suzuki LT R450 QuadRacer R450

oem код

название

цена

1-1

53111-45G00-YU1

Fender, Front (yellow) ()

1-2

53111-45G00-30H

Fender, Front (white) ()

09409-08335

Clip ()

53210-45G00

Bracket, Front Fender ()

01550-0812A

Plug, Oil Gallery ()

09139-06152

Винт

09409-07333

Clip, Tray ()

7-1

53112-45G00-YU1

Cover, Side Rh (yellow) ()

7-2

53112-45G00-30H

Cover, Side Rh (white) ()

8-1

53122-45G00-YU1

Cover, Side Lh (yellow) ()

8-2

53122-45G00-30H

Cover, Side Lh (white) ()

9-1

53119-45G00-YU1

Cover, Headlamp (yellow) ()

9-2

53119-45G00-30H

Cover, Headlamp (white) ()

03541-0516A

Винт

11-1

68151-45G00-DCP

Emblem, "450" (for Yu1)

11-2

68151-45G00-DCR

Emblem, "450" (for 30h)

12-1

68155-45G00-CEZ

Tape, Side Rh (for Yu1)

12-2

68155-45G00-CHG

Tape, Side Rh (for 30h)

13-1

68156-45G00-CEZ

Tape, Side Lh (for Yu1)

13-2

68156-45G00-CHG

Tape, Side Lh (for 30h)

14-1

68155-45G10-DCM

Tape, Front (for Yu1)

14-2

68155-45G10-DCN

Tape, Front (for 30h)

15-1

68661-29F00-CFL

Emblem, "suzuki" (for Yu1)

15-2

68661-29F00-8YM

Emblem, "suzuki" (for 30h)
