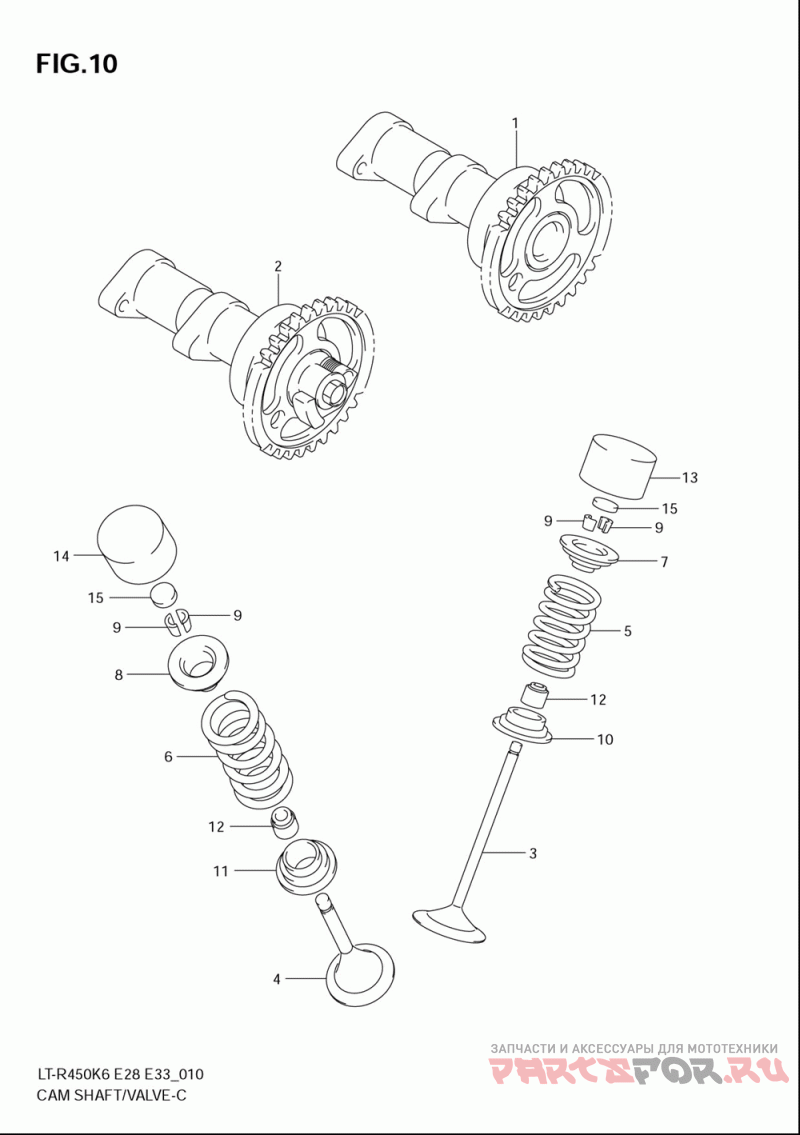

Распред вал/клапана

Suzuki LT R450 QuadRacer R450

Suzuki
#oem кодцена
1-1
12710-45G00
Camshaft, Intake (model K6/k7)
1-2
12710-45G10
Camshaft Comp, I (model K8)
2-1
12720-45G00
Camshaft, Exhaust (model K6/k7)
2-2
12720-45G10
Camshaft Comp, E (model K8)
3
12911-45G00
Valve, Intake ()
4-1
12912-45G10
Valve, Exhaust (model K6/k7)
5
12921-35G00
Spring, Valve Intake ()
6
12922-35G00
Spring, Valve Exhaust ()
7
12931-02F10
Retainer, Valve Spring ()
8
12931-35G00
Retainer, Spring Exhaust ()
9
12932-24400
Cotter, Valve ()
10
12933-35G00
Seat, Spring Intake ()
11
12933-35G10
Seat, Spring Exhaust ()
12
09289-05015
Seal, Valve Stem Oil ()
13
12891-02F00
Tappet ()
14
12891-17E00
Tappet ()
15-1
12892-41C00-230
Shim, Tappet (t:2.30) ()
15-2
12892-41C00-235
Shim, Tappet (t:2.35) ()
15-3
12892-41C00-240
Shim, Tappet (t:2.40) ()
15-4
12892-41C00-245
Shim, Tappet (t:2.45) ()
15-5
12892-41C00-250
Shim, Tappet (t:2.50) ()
15-6
12892-41C00-255
Shim, Tappet (t:2.55) ()
15-7
12892-41C00-260
Shim, Tappet (t:2.60) ()
15-8
12892-41C00-265
Shim, Tappet (t:2.65) ()
15-9
12892-41C00-270
Shim, Tappet (t:2.70) ()
16
12800-41810
Shim Set, Tappet (opt Not Shown)
17
99000-69471
.case, Tappet Shim (opt Not Shown)
2-1
12720-45G01
Camshaft, Exhaus (model K6/k7)
4-1
12912-45G11
Valve, Exhaust (model K6/k7)
1-2
12710-45G20
Camshaft Comp I (model K8)
2-2
12720-45G20
Camshaft, Comp E (model K8)
4-2
12912-45G11
Valve, Exhaust (model K86)
