Крышки картера для квадроциклов Suzuki LT R450 QuadRacer R450 (2008)

Москва и регионы России

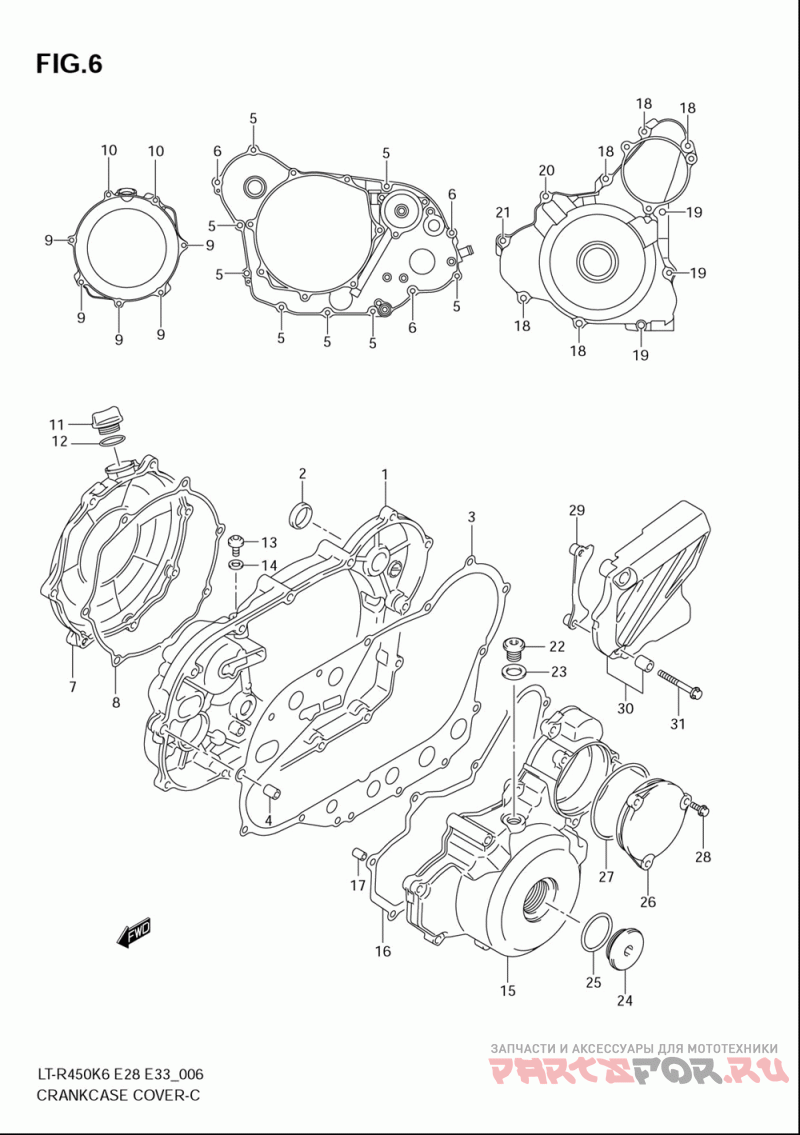

Крышки картера

Suzuki LT R450 QuadRacer R450

Крышки картера

#

oem код

название

цена

1

Cover, Clutch Inner ()

Cover, Clutch Inner ()

2

Plug, Clutch Cover Kick ()

Plug, Clutch Cover Kick ()

3

Gasket, Clutch Cover ()

Gasket, Clutch Cover ()

4

Dowel Pin ()

Dowel Pin ()

5

Bolt (6x25) ()

Bolt (6x25) ()

6

Болт

Болт

7

Cover, Clutch Outer ()

Cover, Clutch Outer ()

8

Gasket, Clutch Cover Outer ()

Gasket, Clutch Cover Outer ()

10

Bolt (l:70) ()

Bolt (l:70) ()

11

09259-20008-XC0

Plug ()

Plug ()

12

O Ring, Oil Filler Cap ()

O Ring, Oil Filler Cap ()

13

Plug, Oil Gallery ()

Plug, Oil Gallery ()

13

Pipe, Intake ()

Pipe, Intake ()

14

Gasket (8.2x14x1.0) ()

Gasket (8.2x14x1.0) ()

15

Cover, Magneto ()

Cover, Magneto ()

16

Gasket, Magneto Cover ()

Gasket, Magneto Cover ()

20

Болт

Болт

21

Болт

Болт

22-1

Plug, Oil Drain (model K6)

Plug, Oil Drain (model K6)

22-2

Plug, Oil Gallery (model K7/k8)

Plug, Oil Gallery (model K7/k8)

23

.gasket (14.1x18x1.5) ()

.gasket (14.1x18x1.5) ()

24

09259-36016-20H

Plug, Crankshaft Hole ()

Plug, Crankshaft Hole ()

25

O Ring (id:32.7, Dd:3.1) ()

O Ring (id:32.7, Dd:3.1) ()

26

Cover, Starter Idle Gear ()

Cover, Starter Idle Gear ()

27-1

O Ring (d:2.6, Id:69.6) (model K6/k7)

O Ring (d:2.6, Id:69.6) (model K6/k7)

27-2

O Ring (d:2.6, Id:67.1) (model K8)

O Ring (d:2.6, Id:67.1) (model K8)

28

Screw, Radiator Side ()

Screw, Radiator Side ()

29

Plate, Fr Chain Guide ()

Plate, Fr Chain Guide ()

30-1

Cover, Engine Sprocket (model K6)

Cover, Engine Sprocket (model K6)

31

Болт

Болт

9

Bolt (6x25) ()

Bolt (6x25) ()

17

Pin 9x14 ()

Pin 9x14 ()

18

Bolt (6x25) ()

Bolt (6x25) ()

19

Bolt (6x34) ()

Bolt (6x34) ()

30-2

Cover Comp, Eng (model K7/k8)

Cover Comp, Eng (model K7/k8)
