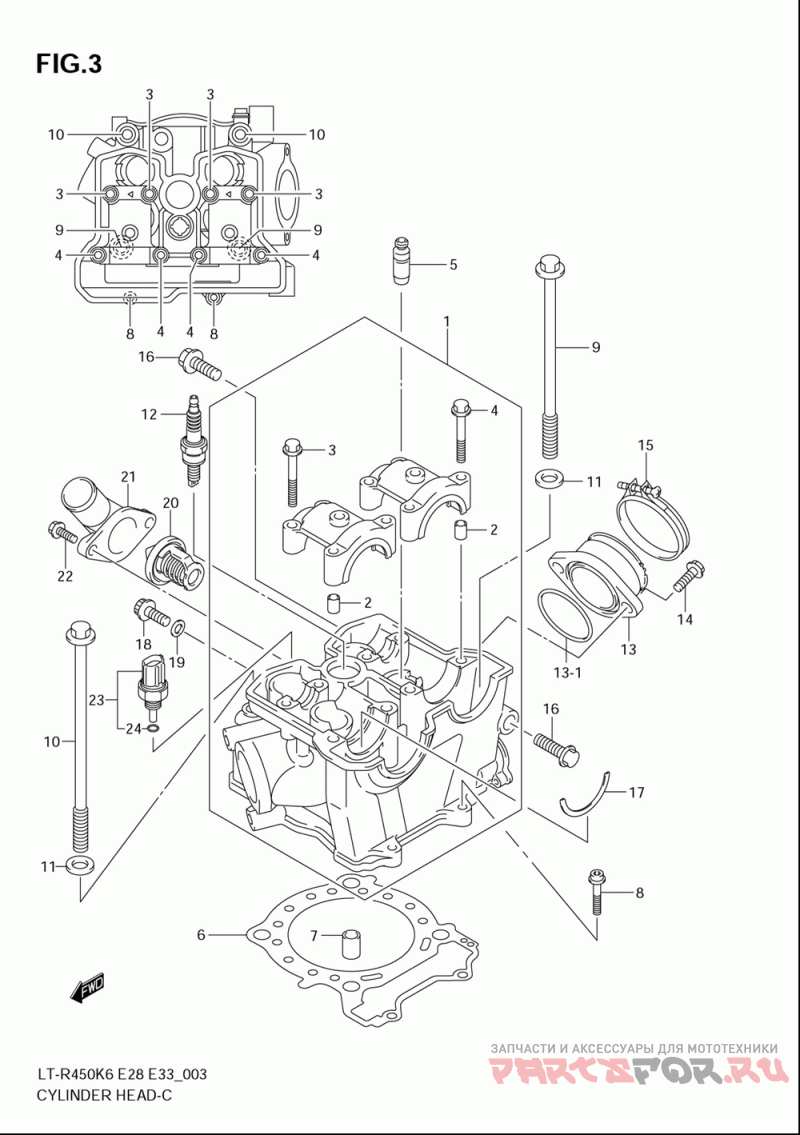

Головка цилиндра для квадроциклов Suzuki LT R450 QuadRacer R450 (2008)

Головка цилиндра

Suzuki LT R450 QuadRacer R450

oem код

название

цена

1-1

11100-45G00

Head Assy, Cylinder (model K6/k7)

1-2

11100-45G10

Head Assy, Cylin (model K8)

09206-08001

Pin ()

09103-06071

.bolt, Camshaft Housing (6x39 ()

09103-06219

.bolt, Camshaft Housing (6x45 ()

11115-45G70

Guide, Valve (os.0.3) (opt)

11141-45G00

Gasket, Cylinder Head ()

04211-13189

Pin ()

07120-06257

Болт

11161-45G00

Bolt, Cylinder Head ()

09103-10368

Bolt, Cylinder Head (10x145) ()

09168-10031

.gasket, Crankcase Bolt ()

09482-00570

Plug, Spark (ngk,cr8eb) ()

13101-45G00

Pipe, Intake ()

13-1

O Ring, Intake ()

Bolt (6x18) ()

Clamp, Silencer ()

Bolt, Suspension Arm ()

12749-35G01

C Ring, Camshaft ()

07120-06107

Болт

09168-06023

Washer, Oil Gallery Exhaust ()

Thermostat, Water ()

Cover, Thermostat ()

Болт

Sensor, Water Temp ()

13655-14G00

.o Ring ()

K9207-00001

Plug-spark, Cr8e ()

1-2

11100-45G20

Head Assy, Cylin (model K8)
