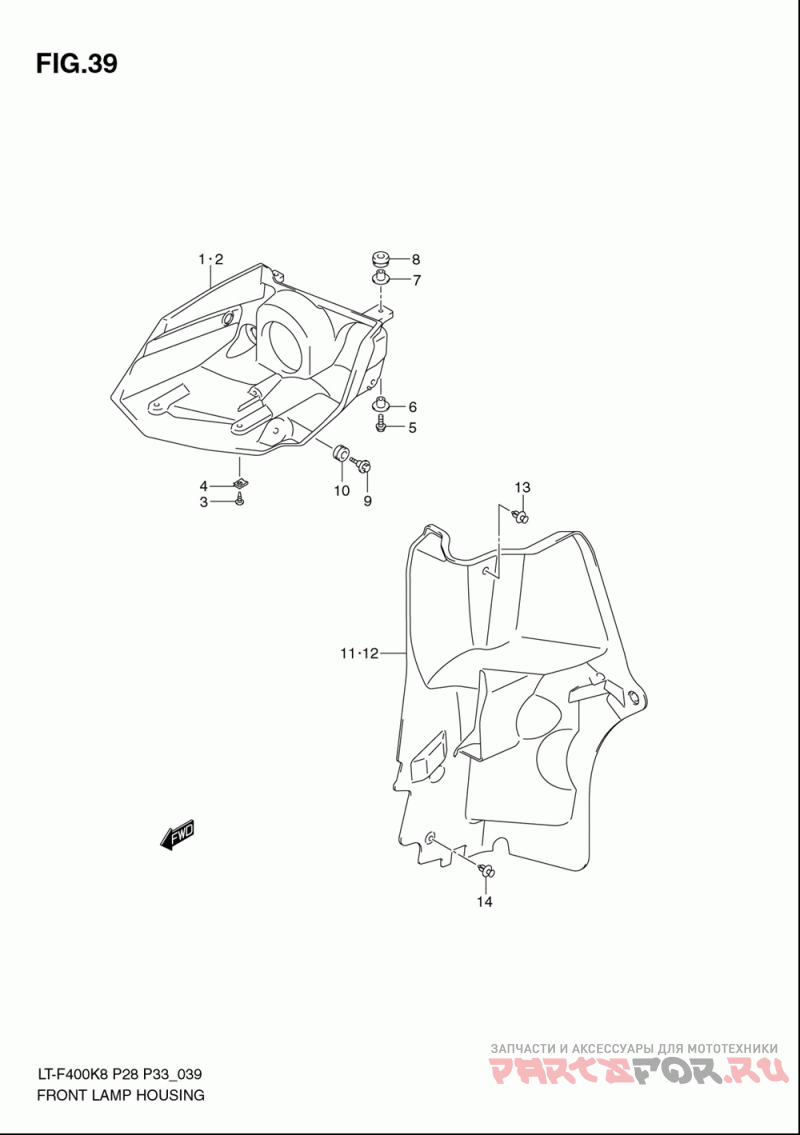

Front lamp housing
Suzuki LT-F400 KingQuad
| # | oem код | название | цена |
|---|---|---|---|
1 | 53281-27H00-291 Lamp Housing;fr () | Lamp Housing;fr () | |
2 | 53284-27H00-291 Lamp Housing;fr () | Lamp Housing;fr () | |
3 | 03241-0516B Screw () | Screw () | |
4 | 09148-05038 Гайка | Гайка | |
5 | 01550-0630B Болт | Болт | |
6 | 09169-06073 Шайба | Шайба | |
7 | 09169-06074 Spacer () | Spacer () | |
8 | 09320-11021 Cushion () | Cushion () | |
9 | 09139-06118 Screw, Rear Comb () | Screw, Rear Comb () | |
10 | 09320-10501 Cushion () | Cushion () | |
11 | 53411-27H00 Mudflap;front, R () | Mudflap;front, R () | |
12 | 53421-27H00 Mudflap;fr, L () | Mudflap;fr, L () | |
13 | 09409-07333 Clip, Tray () | Clip, Tray () | |
14 | 09409-08335 Clip () | Clip () |
