Заднее колесо правое для квадроциклов Suzuki LT-F400 KingQuad (2008)

Москва и регионы России

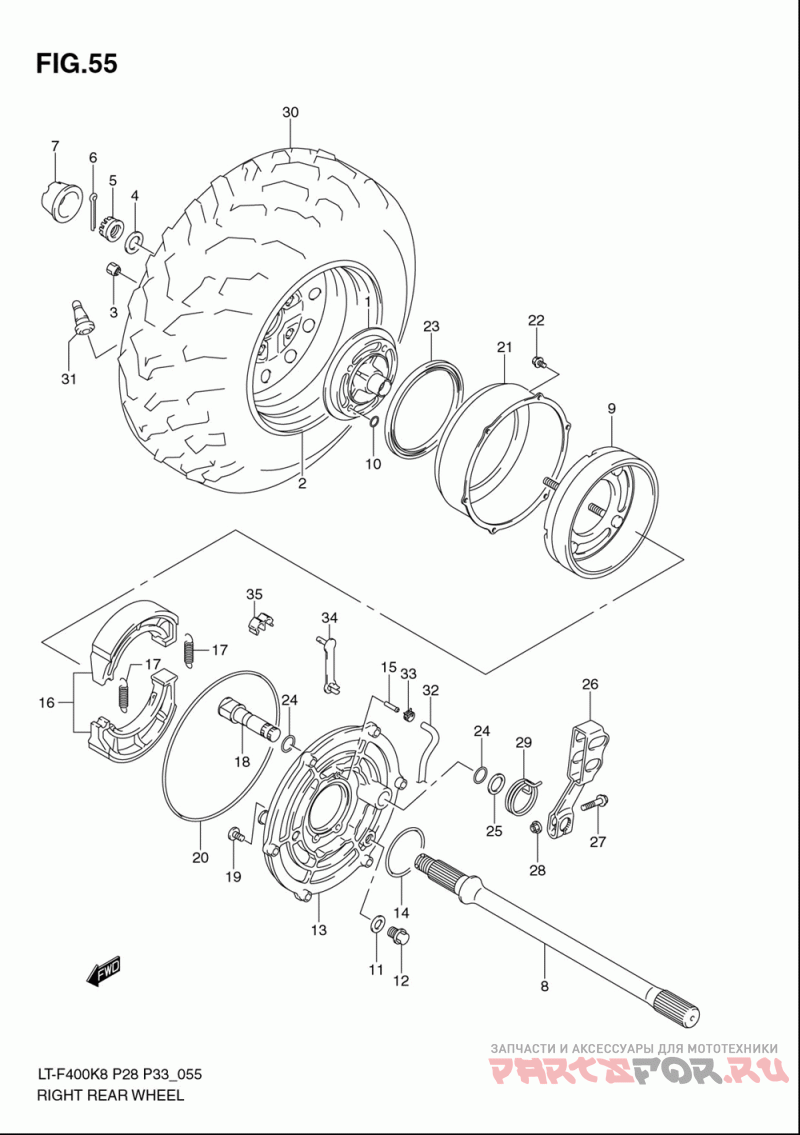

Заднее колесо правое

Suzuki LT-F400 KingQuad

Заднее колесо правое

#

oem код

название

цена

1

Hub, Rear Wheel Rh ()

Hub, Rear Wheel Rh ()

2

65310-38F40-YL8

Rim, Rr Wheel ()

Rim, Rr Wheel ()

3

Гайка

Гайка

4

Шайба

Шайба

5

Nut, Hub ()

Nut, Hub ()

6

Pin, Cotter ()

Pin, Cotter ()

7

Cap, Wheel Center ()

Cap, Wheel Center ()

8

Axle, Rear Rh ()

Axle, Rear Rh ()

9

Drum, Brake ()

Drum, Brake ()

10

.o Ring ()

.o Ring ()

11

Washer, Drain Plug ()

Washer, Drain Plug ()

12

Plug, Oil Gallery ()

Plug, Oil Gallery ()

13

Provisional ()

Provisional ()

14

O Ring, Panel ()

O Ring, Panel ()

15

Union, Panel ()

Union, Panel ()

16

Shoe Set, Brake ()

Shoe Set, Brake ()

17

Spring, Shoe ()

Spring, Shoe ()

18

Cam, Rear Brake ()

Cam, Rear Brake ()

19

Bolt, Drive Shaft Housing ()

Bolt, Drive Shaft Housing ()

20

O Ring, Panel ()

O Ring, Panel ()

21

Cover, Rear Brake ()

Cover, Rear Brake ()

22

Bolt, Push Rod Guide ()

Bolt, Push Rod Guide ()

23

Dust Seal, Drum Cover ()

Dust Seal, Drum Cover ()

24

O Ring, Cam (15.9x19.7x2) ()

O Ring, Cam (15.9x19.7x2) ()

25

Шайба

Шайба

26

Lever, Brake Cam ()

Lever, Brake Cam ()

27

Болт

Болт

28

Гайка

Гайка

29

Spring, Cam Lever ()

Spring, Cam Lever ()

30

Покрышка задняя

Покрышка задняя

31

Нипель

Нипель

32

Provisional ()

Provisional ()

33

Clip ()

Clip ()

34

Clamp ()

Clamp ()

35

Clamp ()

Clamp ()
