Сцепление для квадроциклов Suzuki LT-F400 KingQuad (2008)

Москва и регионы России

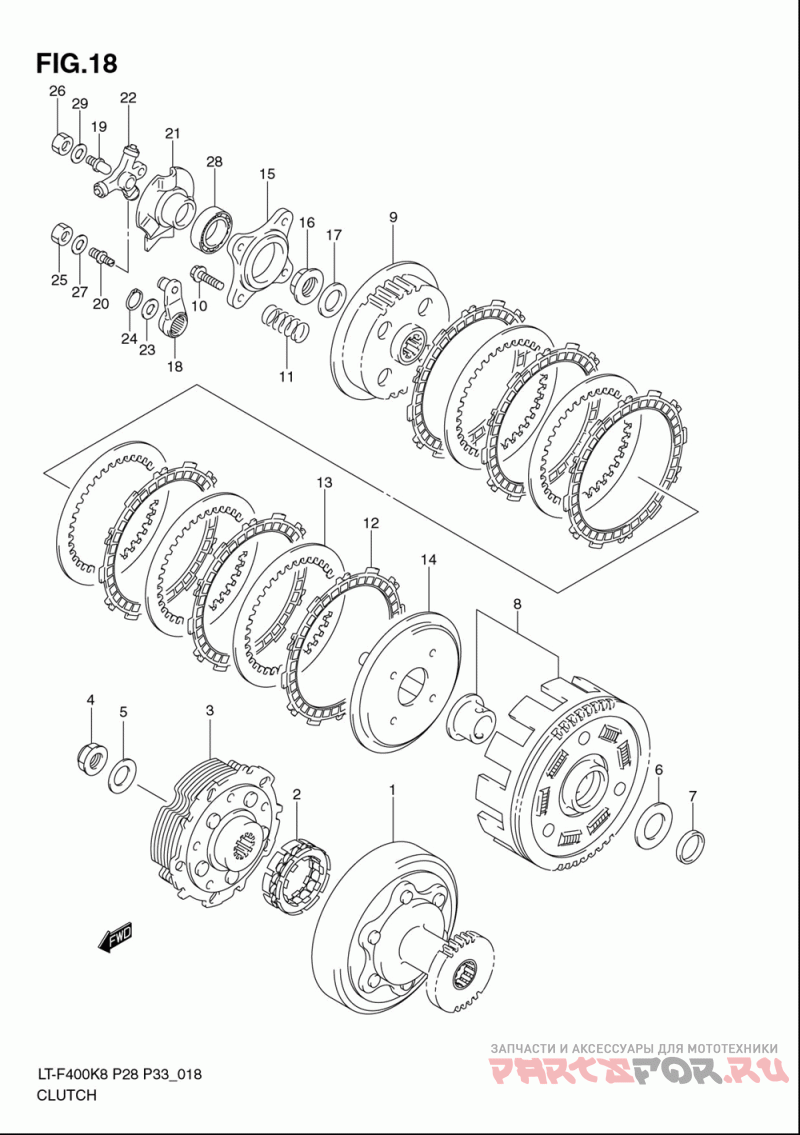

Сцепление

Suzuki LT-F400 KingQuad

Сцепление

#

oem код

название

цена

1

Housing , Starte ()

Housing , Starte ()

2

Clutch, Pri Drive One Way ()

Clutch, Pri Drive One Way ()

3

Shoe, Starter Cl ()

Shoe, Starter Cl ()

4

Nut, Starter Clutch Shoe ()

Nut, Starter Clutch Shoe ()

5

Шайба

Шайба

6

Washer, Primary Driven Thr ()

Washer, Primary Driven Thr ()

7

Washer, Primary Driven ()

Washer, Primary Driven ()

8

Gear Assy, Primary Driven ()

Gear Assy, Primary Driven ()

9

Hub, Clutch Sleeve ()

Hub, Clutch Sleeve ()

10

Bolt, Clutch Spring (6x25) ()

Bolt, Clutch Spring (6x25) ()

11

Spring, Clutch ()

Spring, Clutch ()

12

Plate, Clutch Drive ()

Plate, Clutch Drive ()

13

Plate, Driven ()

Plate, Driven ()

14

Disk, Clutch Pressure ()

Disk, Clutch Pressure ()

15

Plate, Clutch Release ()

Plate, Clutch Release ()

16

Nut, Clutch Sleeve Hub ()

Nut, Clutch Sleeve Hub ()

18

Arm, Clutch Release ()

Arm, Clutch Release ()

19

Bolt, Clutch Rlse No.1 ()

Bolt, Clutch Rlse No.1 ()

20

Bolt, Clutch Rlse No.2 ()

Bolt, Clutch Rlse No.2 ()

21

Guide, Cl Release Roller ()

Guide, Cl Release Roller ()

22

Roller Assy, Clutch Release ()

Roller Assy, Clutch Release ()

23

Washer, Clutch Rlse Arm ()

Washer, Clutch Rlse Arm ()

24

Circlip ()

Circlip ()

25

Nut (6x3.6) ()

Nut (6x3.6) ()

26

Nut 8mm ()

Nut 8mm ()

27

Washer, Outer (6.5x16x1.2)

Washer, Outer (6.5x16x1.2)

28

Bearing, Shift Cam ()

Bearing, Shift Cam ()

29

Washer, Clutch Rlse No.2 (8x20x1)

Washer, Clutch Rlse No.2 (8x20x1)
