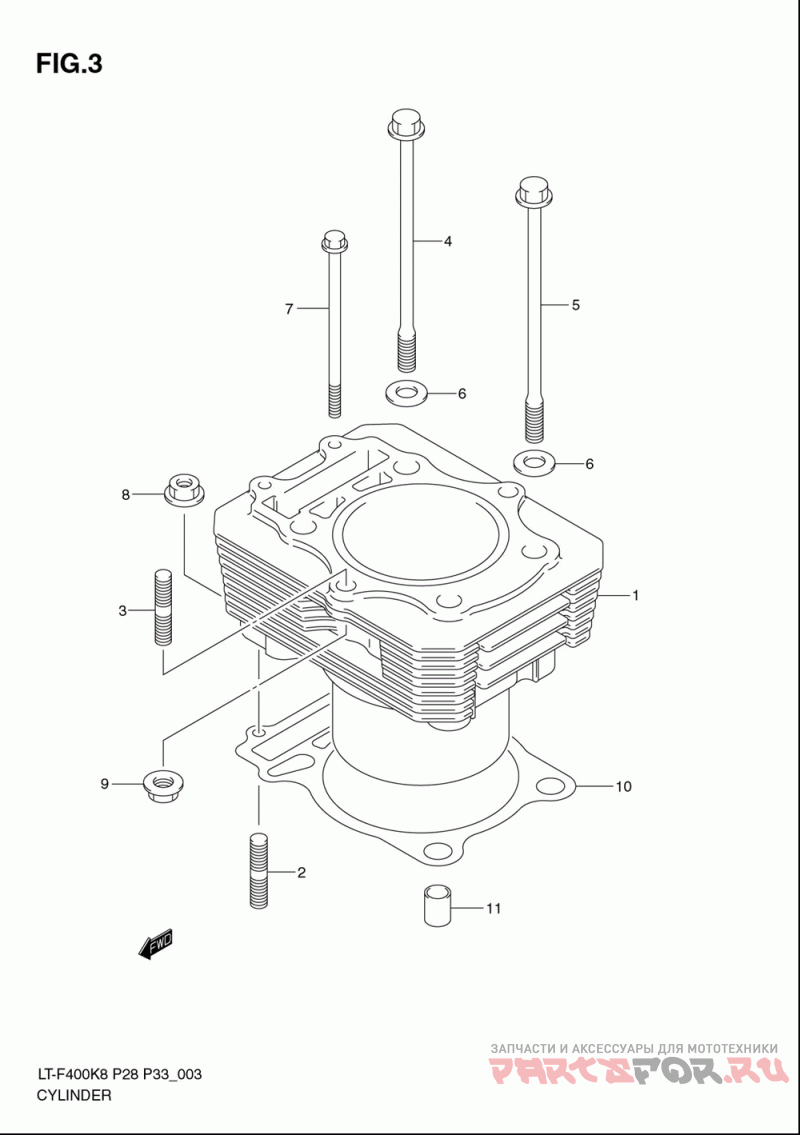

Цилиндр
Suzuki LT-F400 KingQuad
| # | oem код | название | цена |
|---|---|---|---|
1 | 11210-27H00-0F0 Cylinder Comp () | Cylinder Comp () | |
3 | 09108-08142 Stud Bolt (8x30) () | Stud Bolt (8x30) () | |
4 | 09103-10178 Bolt (10x180) () | Bolt (10x180) () | |
5 | 09103-10321 Bolt (l:170) () | Bolt (l:170) () | |
6 | 09160-10039 Washer (10.5x22x2.3) () | Washer (10.5x22x2.3) () | |
7 | 09103-06167 Bolt (6x115) () | Bolt (6x115) () | |
8 | 08316-1006B Гайка | Гайка | |
9 | 08316-1008B Гайка | Гайка | |
10 | 11241-38F00 Gasket, Cylinder () | Gasket, Cylinder () | |
11 | 04211-13189 Pin () | Pin () |
